| PN | 98011304 |
|---|---|
| Model | S5735-L24T4X-D1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Weight without packaging [kg(lb)] | 2.39 kg (5.27 lb) |
| Weight with packaging [kg(lb)] | 3.28 kg (7.23 lb) |
| Typical power consumption [W] | 34 W |
| Typical heat dissipation [BTU/hour] | 116.01 BTU/hour |
| Maximum power consumption [W] | 37.3 W |
| Maximum heat dissipation [BTU/hour] | 127.27 BTU/hour |
| Static power consumption [W] | 21.9 W |
| MTBF [year] | 62.05 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 39 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 27.2 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | -5??C to +50??C (23??F to 122??F) (0 m to 1800 m altitude, non-industrial optical modules), -5??C to +55??C (23??F to 131??F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | DC built-in |
| Rated input voltage [V] | DC input: -48 V DC to -60 V DC |
| Input voltage range [V] | DC input: -38.4 V DC to -72 V DC |
| Maximum input current [A] | 6A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | ??2 kV in differential mode, ??4 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

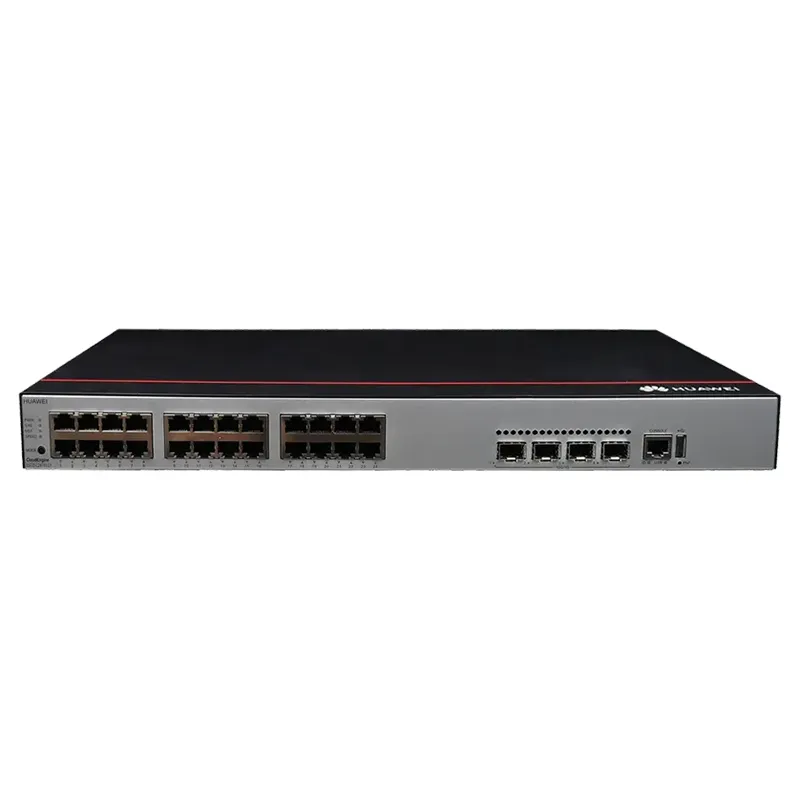

Huawei S5735-L24T4X-D1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, DC power)
The Huawei S5735-L24T4X-D1 is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports and 4 10GE SFP+ uplink ports with DC power supply. This managed Layer 2/3 switch offers advanced features including VLAN support, QoS traffic management, and comprehensive security protocols. Key benefits include flexible network deployment with mixed copper and fiber connectivity, energy-efficient operation ideal for data centers and enterprise networks, and seamless integration with existing Huawei infrastructure. Its stackable design enables easy scalability, while the DC power option ensures reliable operation in telecom environments. The switch provides enterprise-grade reliability with redundant power options, making it perfect for businesses requiring robust, scalable networking solutions with future-proof 10G uplink capabilities.
