| Brand | Huawei |
|---|---|
| Model | S5735-L24T4X-A |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 8.94" |
| Flash | 512MB |
| PN | 98010920 |
| Availability | >0.99999 |
| RTC | Not supported |
| Memory | 1GB |
| Wide [mm] | 442.0mm |
| Height [mm] | 43.6mm |
| Power supply surge protection | 6 kV" differential mode, 6 kV" common mode |
| RPS | Not supported |
| Rated voltage range | AC"put: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC"put: 240 V DC |
| Maximum voltage range | AC"put: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC"put: 190 V DC to 290 V DC |
| Operating temperature | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F). |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Stack ports | Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable" V200R019C10 and later versions) |
| Noise under normal temperature (27C, sound power) | < 47.3 dB(A) |
| Depth [mm] | 220.0mm |
| Maximum Power | 43W |
| Weight (with packaging) | 4 kg (8.82 lb) |
| Short-term operating temperature | -5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 50C (122F) consecutively for at most 96 hours" one year. The equipment operates at a temperature of over 50C (122F) for a total of no more than 360 hours" one year. The equipment operates at a temperature of over 50C (122F) for no more" 15 times" one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0C (32F). The maximum distance of optical modules used" these conditions cannot exceed 10 km. |

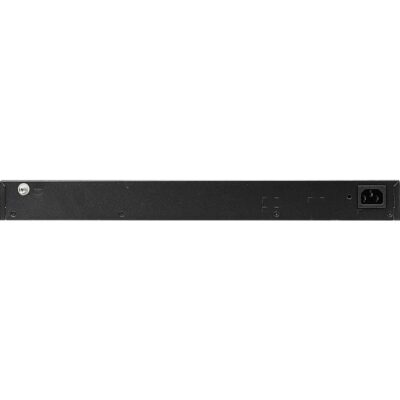

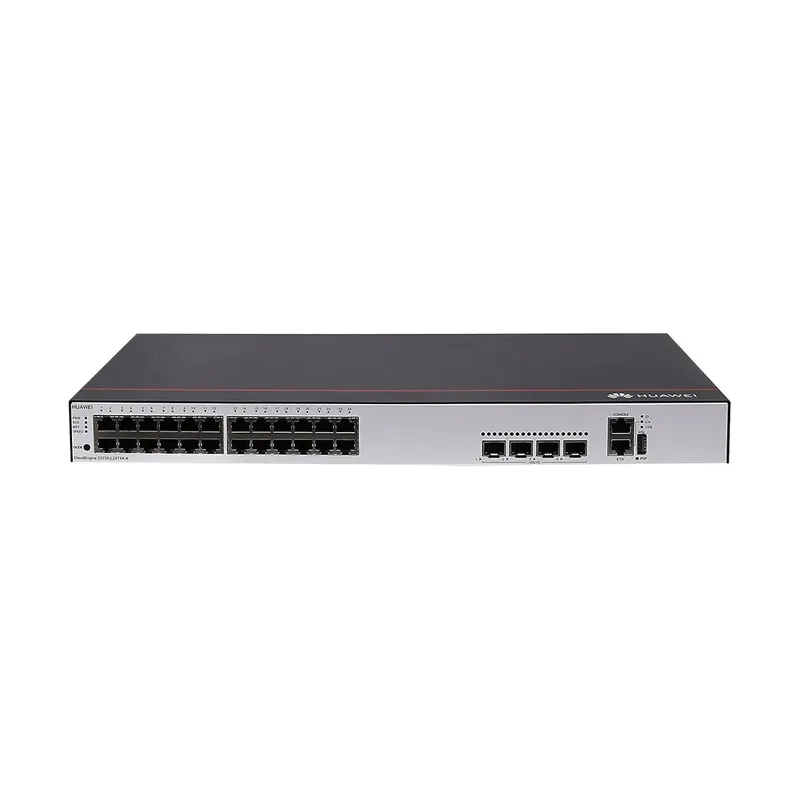

* NOTE: Image may not exactly match the product
Huawei S5735-L24T4X-A (24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports)
The Huawei S5735-L24T4X-A is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports and 4 10GE SFP+ uplink ports for scalable network connectivity. This managed Layer 3 switch features advanced security protocols, comprehensive QoS capabilities, and energy-efficient design with up to 30% power savings. Key benefits include simplified network management through Huawei’s eSight platform, robust redundancy options, and flexible deployment supporting both access and aggregation layers. The switch offers exceptional value with enterprise-grade reliability, comprehensive VLAN support, and future-proof 10G uplinks, making it ideal for growing businesses requiring dependable, high-speed network infrastructure with room for expansion.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Huawei |
|---|---|
| Model | S5735-L24T4X-A |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 8.94" |
| Flash | 512MB |
