| PN | 98011585 |
|---|---|
| Model | S5735-L24T4S-QA1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Weight without packaging [kg(lb)] | 3.69 kg (8.14 lb) |
| Weight with packaging [kg(lb)] | 4.45 kg (9.81 lb) |
| Typical power consumption [W] | 29.8 W |
| Typical heat dissipation [BTU/hour] | 101.68 BTU/hour |
| Maximum power consumption [W] | 33 W |
| Maximum heat dissipation [BTU/hour] | 112.60 BTU/hour |
| Static power consumption [W] | 17.4 W |
| MTBF [year] | 66.16 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | ?C5??C to +45??C (23??F to 113??F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 2 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | ??6 kV in differential mode, ??6 kV in common mode |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

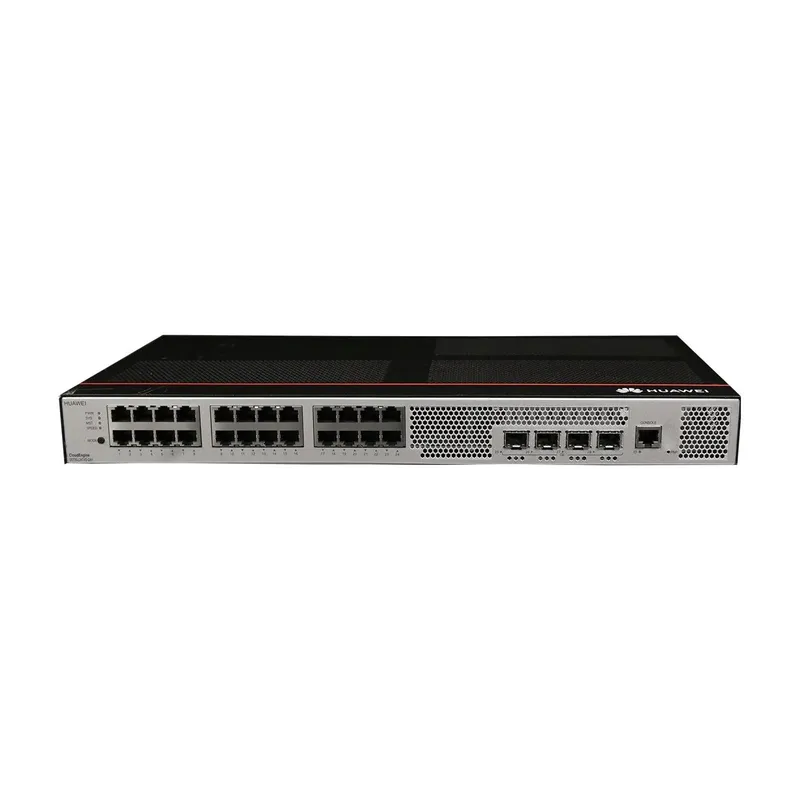

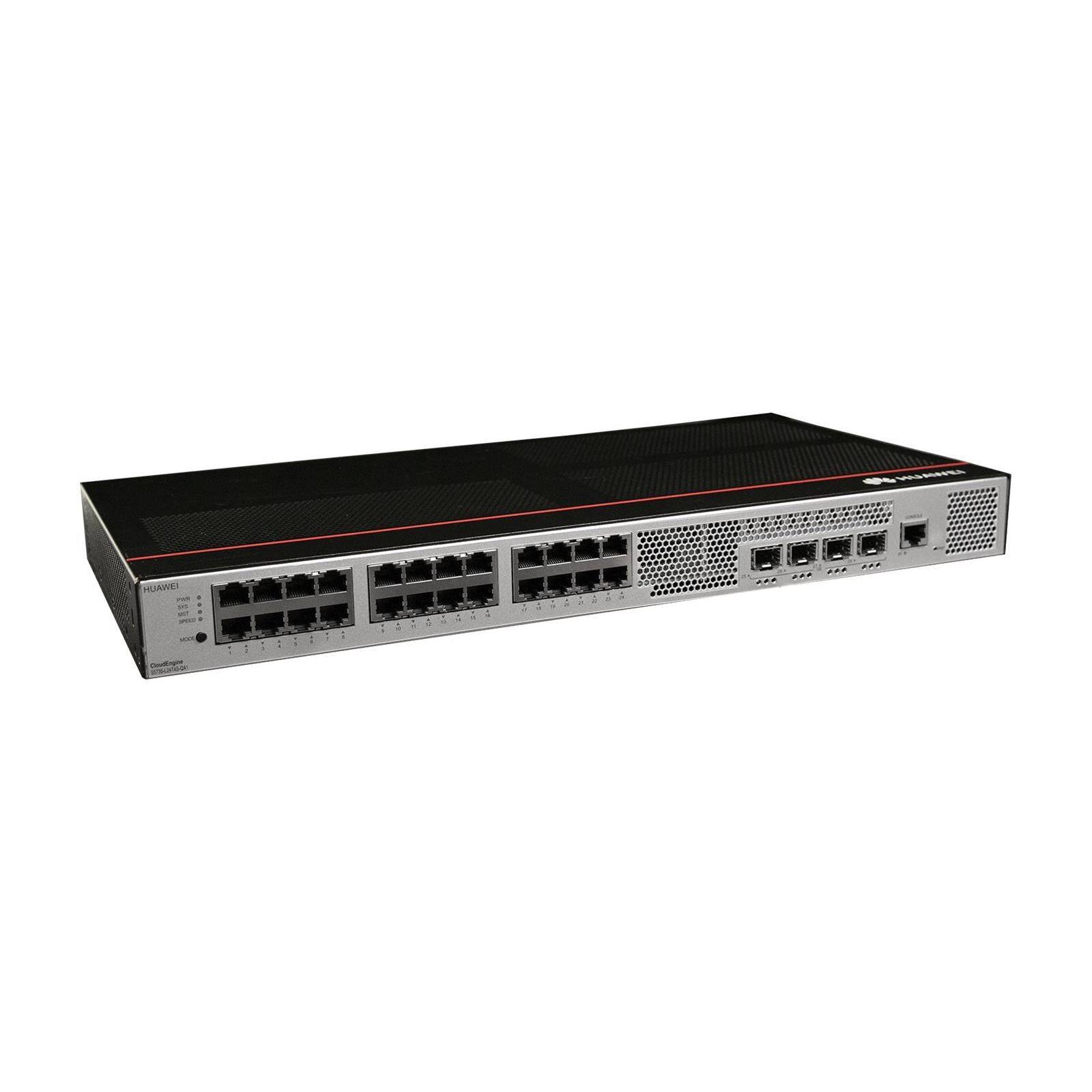

Huawei S5735-L24T4S-QA1 (24*10/100/1000BASE-T ports, 4*GE SFP ports, AC power, Fanless)
The Huawei S5735-L24T4S-QA1 is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports plus 4 SFP uplink ports for flexible fiber connectivity. Its fanless design ensures silent operation ideal for office environments while reducing energy consumption and maintenance costs. Key features include advanced Layer 2/3 switching capabilities, comprehensive security protocols, and intelligent traffic management. The AC-powered unit offers plug-and-play simplicity with enterprise-grade reliability, making it perfect for small to medium businesses requiring robust network infrastructure without noise concerns. Superior port density, energy efficiency, and Huawei’s proven networking technology provide exceptional value for modern workplace connectivity demands.
