| PN | 98011306 |
|---|---|
| Model | S5735-L24T4S-A1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Weight without packaging [kg(lb)] | 2.45 kg (5.4 lb) |
| Weight with packaging [kg(lb)] | 3.34 kg (7.36 lb) |
| Typical power consumption [W] | 32.7 W |
| Typical heat dissipation [BTU/hour] | 111.58 BTU/hour |
| Maximum power consumption [W] | 47.6 W |
| Maximum heat dissipation [BTU/hour] | 162.42 BTU/hour |
| Static power consumption [W] | 18.4 W |
| MTBF [year] | 66.16 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 39 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 27.2 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | -5??C to +50??C (23??F to 122??F) (0 m to 1800 m altitude, non-industrial optical modules), -5??C to +55??C (23??F to 131??F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 2 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | ??6 kV in differential mode, ??6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

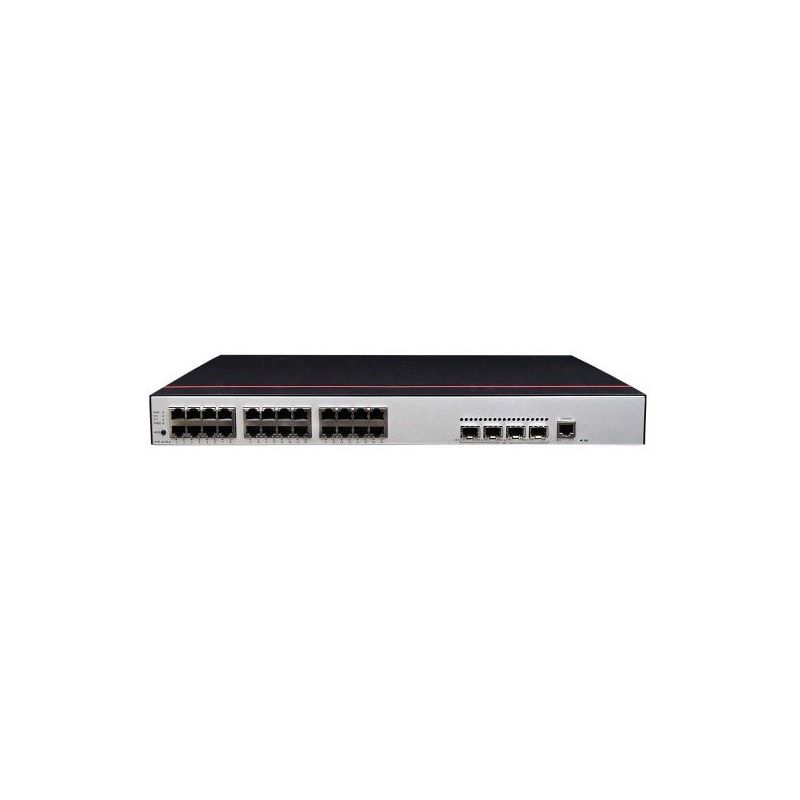

Huawei S5735-L24T4S-A1 (24*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)
The Huawei S5735-L24T4S-A1 is a high-performance enterprise-grade managed switch delivering robust network connectivity with 24 Gigabit Ethernet ports and 4 SFP uplink ports. This versatile switch combines exceptional port density with advanced Layer 2/3 switching capabilities, supporting up to 256 Gbps switching capacity and 190 Mpps forwarding rate. Key features include comprehensive security protocols, energy-efficient design with AC power supply, flexible deployment options, and Huawei’s intelligent network management system. Ideal for medium to large enterprises, it offers seamless scalability, reduced operational costs through smart power management, and future-proof connectivity with fiber uplink capabilities. The switch ensures reliable network performance while supporting advanced features like VLAN, QoS, and network virtualization, making it perfect for demanding business environments requiring high-speed, secure, and manageable network infrastructure.
