| PN | 98012026 |
|---|---|
| Model | S5735-L24P4XE-A-V2 |
| Brand | Huawei |
| Warranty | 1 Year |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0 mm |
| Wide [mm] | 442.0 mm |
| Chassis height [U] | 1 |
| Weight with packaging | 3.81 (8.4) |
| Weight without packaging | 2.94 (6.48) |
| Maximum power consumption [W] | – Without PoE: 55.40 W/- Full PoE load: 496.08 W (PoE: 400 W) |
| Typical power consumption [W] | 39.84 |
| Maximum heat dissipation [BTU/h] | – Without PoE: 189.03/- Full PoE load: 1692.67 |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Typical heat dissipation [BTU/h] | 135.94 |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90?C290 V AC; 45?C65 Hz |
| Rated input voltage [V] | AC input: 100?C240 V AC; 50/60 Hz |
| Maximum input current [A] | 6 A |
| Number of power slots | 0 |
| Number of card slots | 0 |
| Memory | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| Redundant power supply | Not supported |
| Types of fans | Built-in |
| Noise at normal temperature (acoustic pressure) | 37.3 |
| Noise at normal temperature (acoustic power) | 49.3 |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| Long-term operating temperature | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Storage temperature | ?C40??C to +70??C (?C40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude | 0?C5000 m (0?C16404 ft.) |
| MTBF [year] | 59.13 |
| MTTR [h] | 2 |
| Availability | >0.99999 |
| Maximum number of physical ports on the entire device | 30 |
| Maximum number of 100GE ports | 0 |
| Maximum number of 40GE ports | 0 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 4 |
| Maximum number of GE ports | 28 |
| Maximum number of FE ports | 24 |
| 10GE optical interface | 4 |
| 1000M electrical interface | 24 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | Not supported |
| Service port surge protection | Common mode: ??7 kV |
| Power supply surge protection | Differential mode: ??6 kV; common mode: ??6 kV |
| RPS input | Not supported |
| PoE | Supported |
| PoE power supply | Supported |

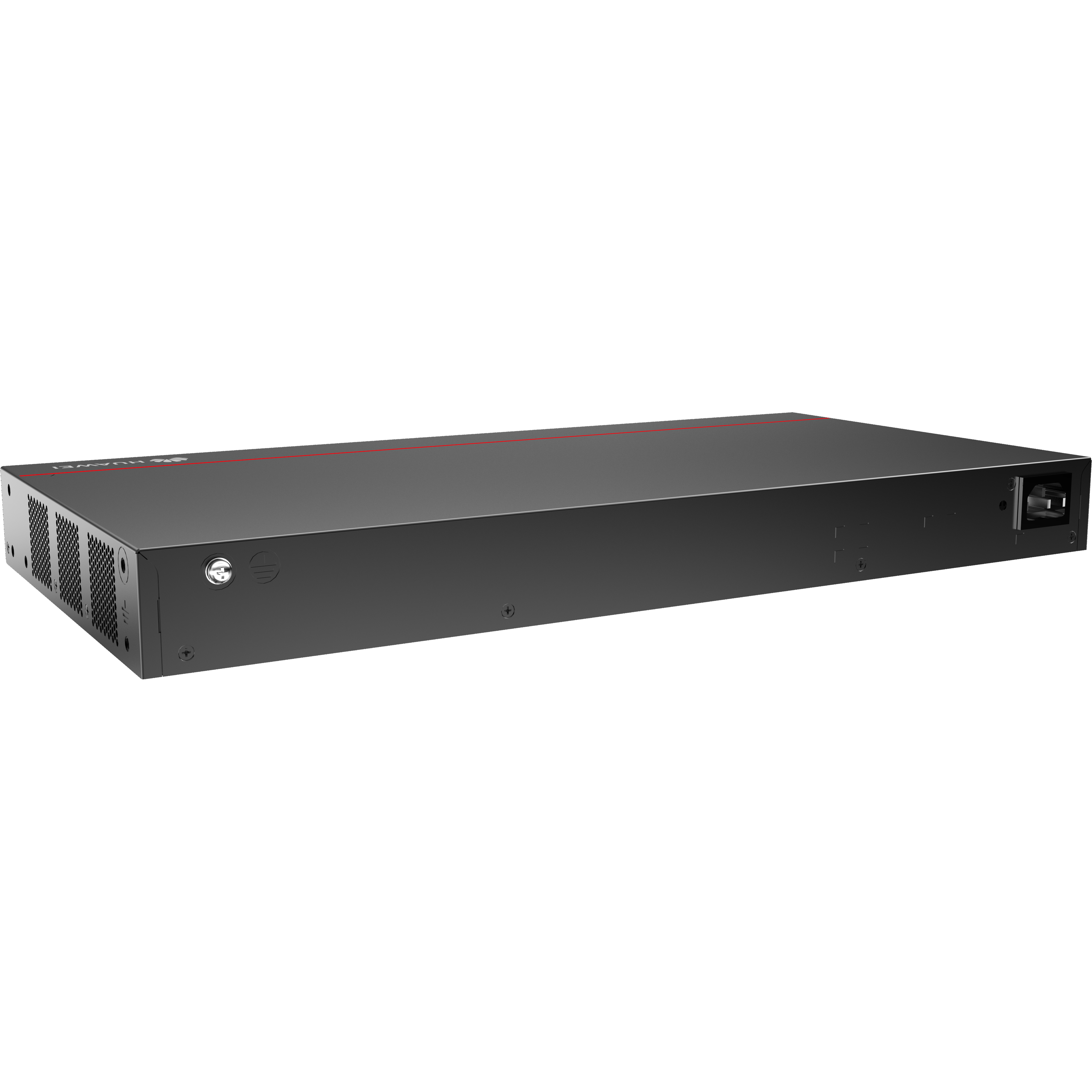

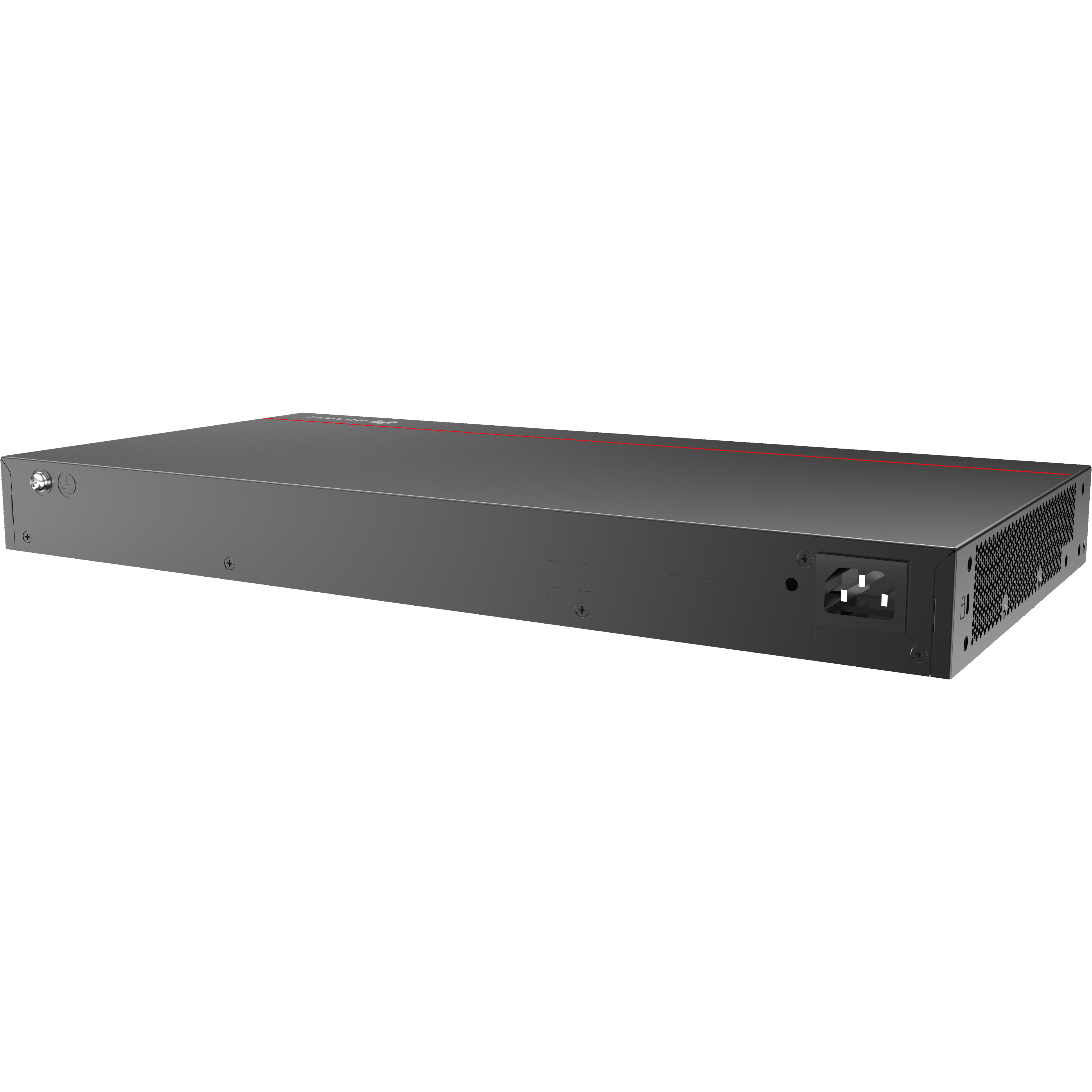

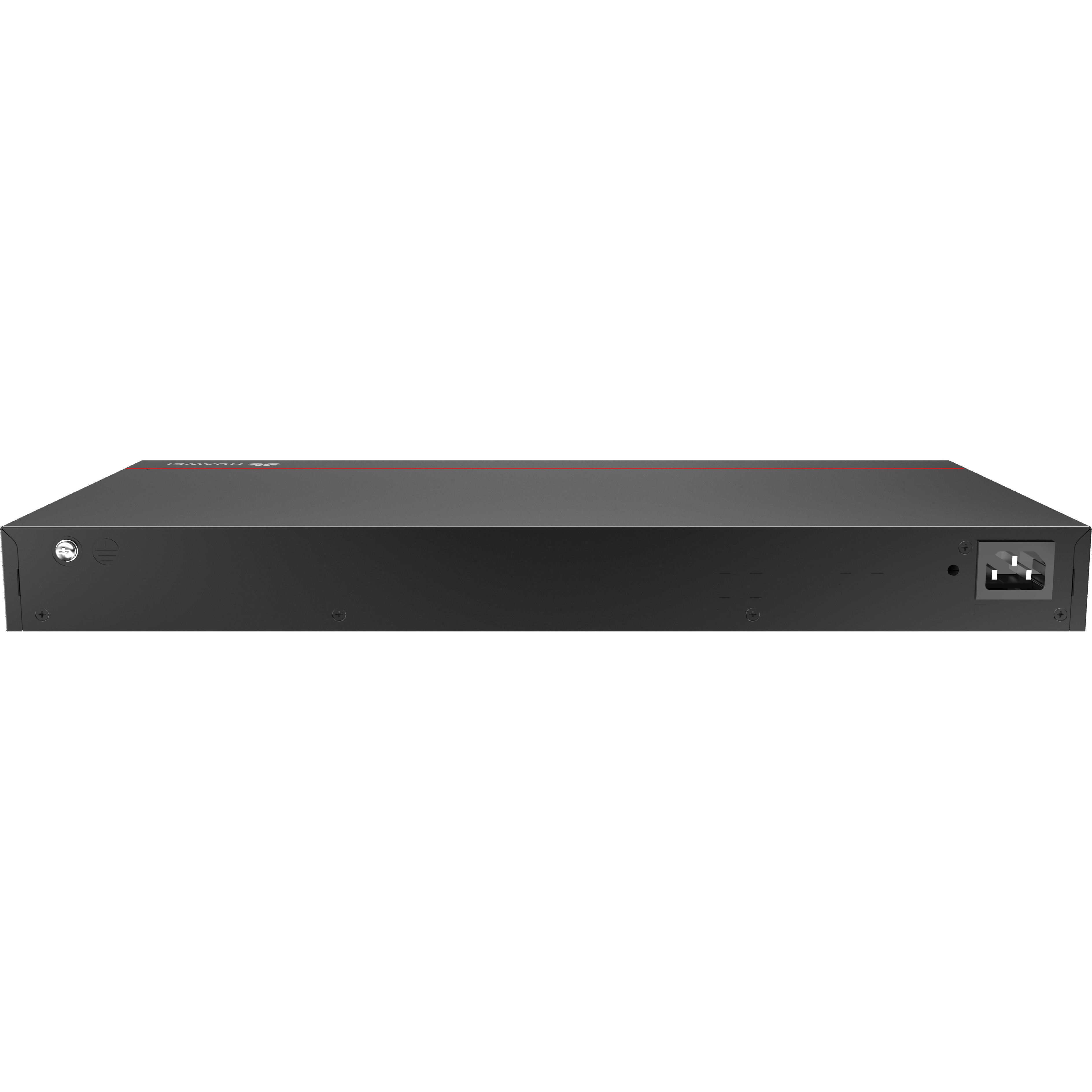

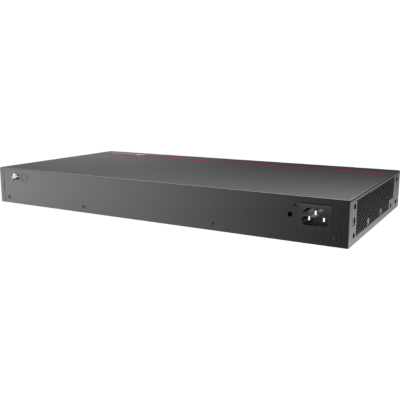

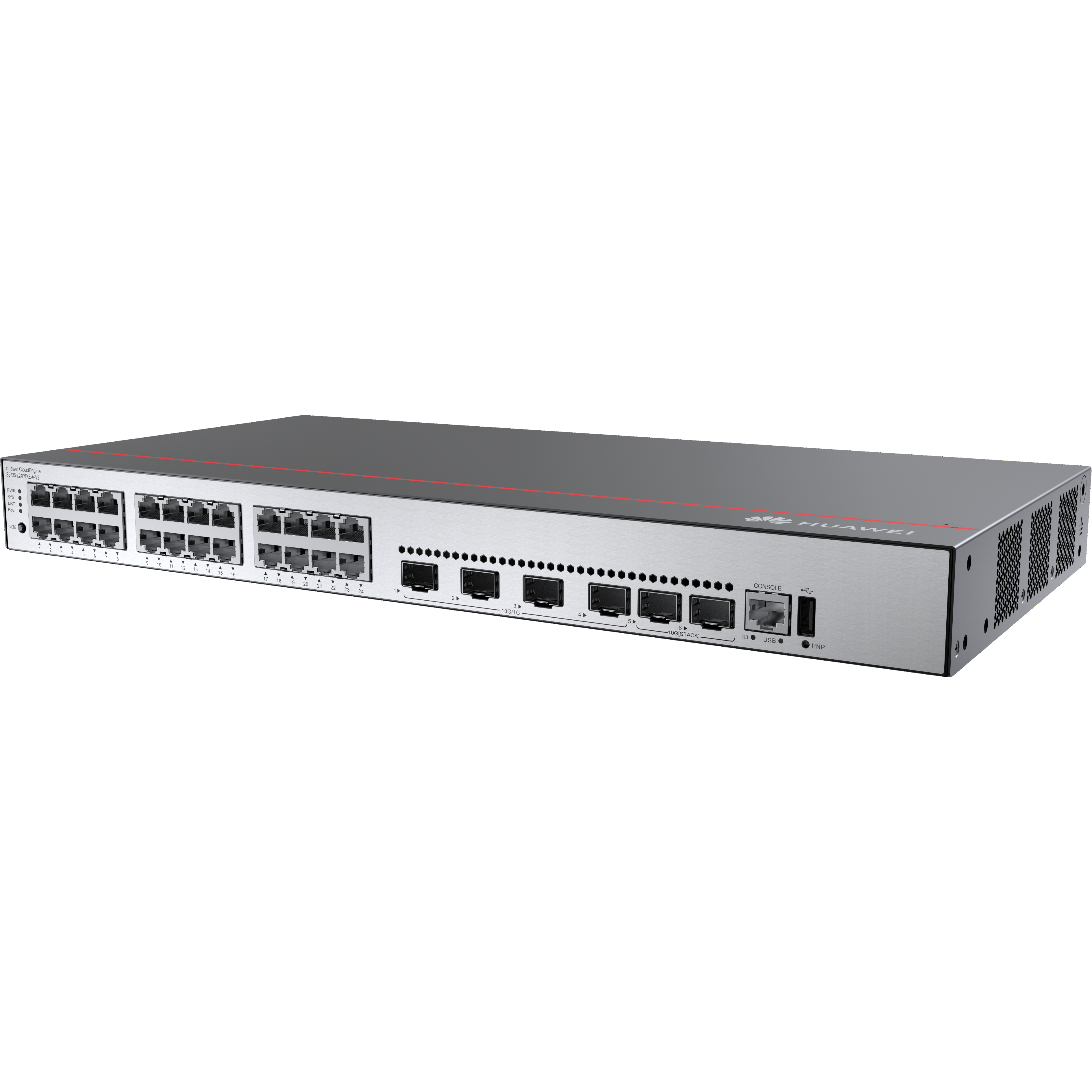

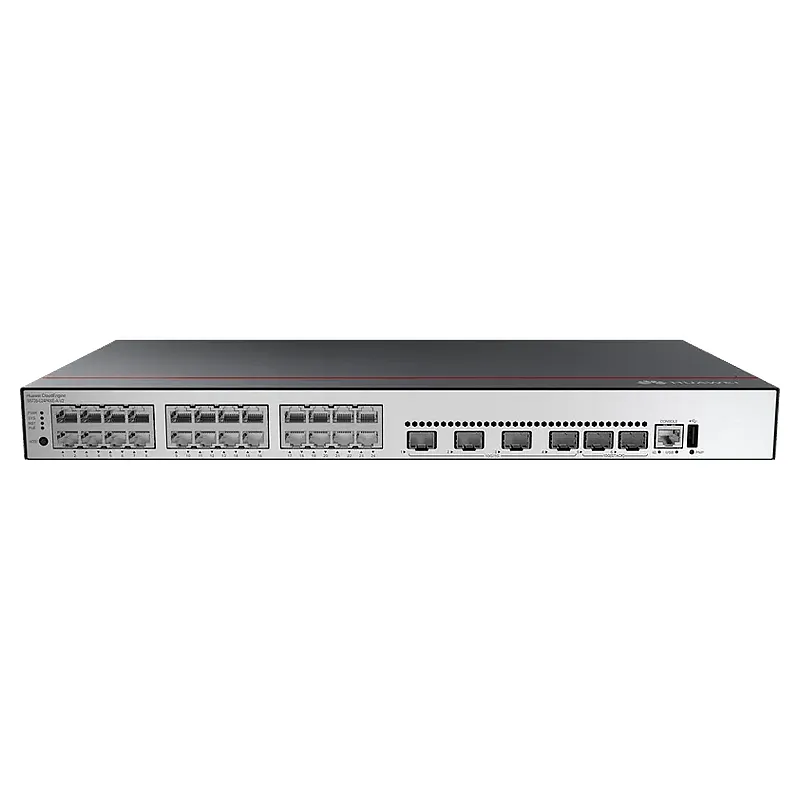

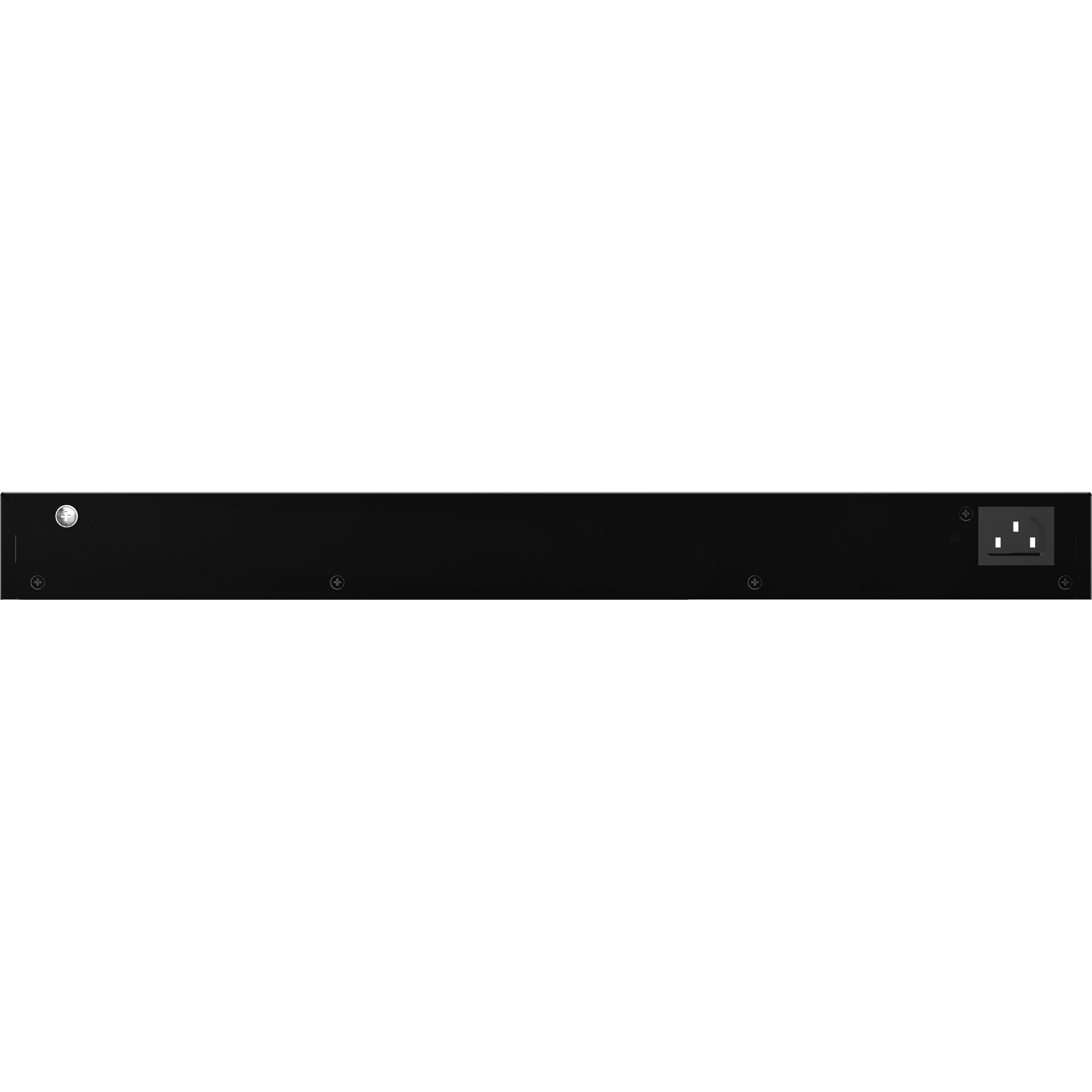

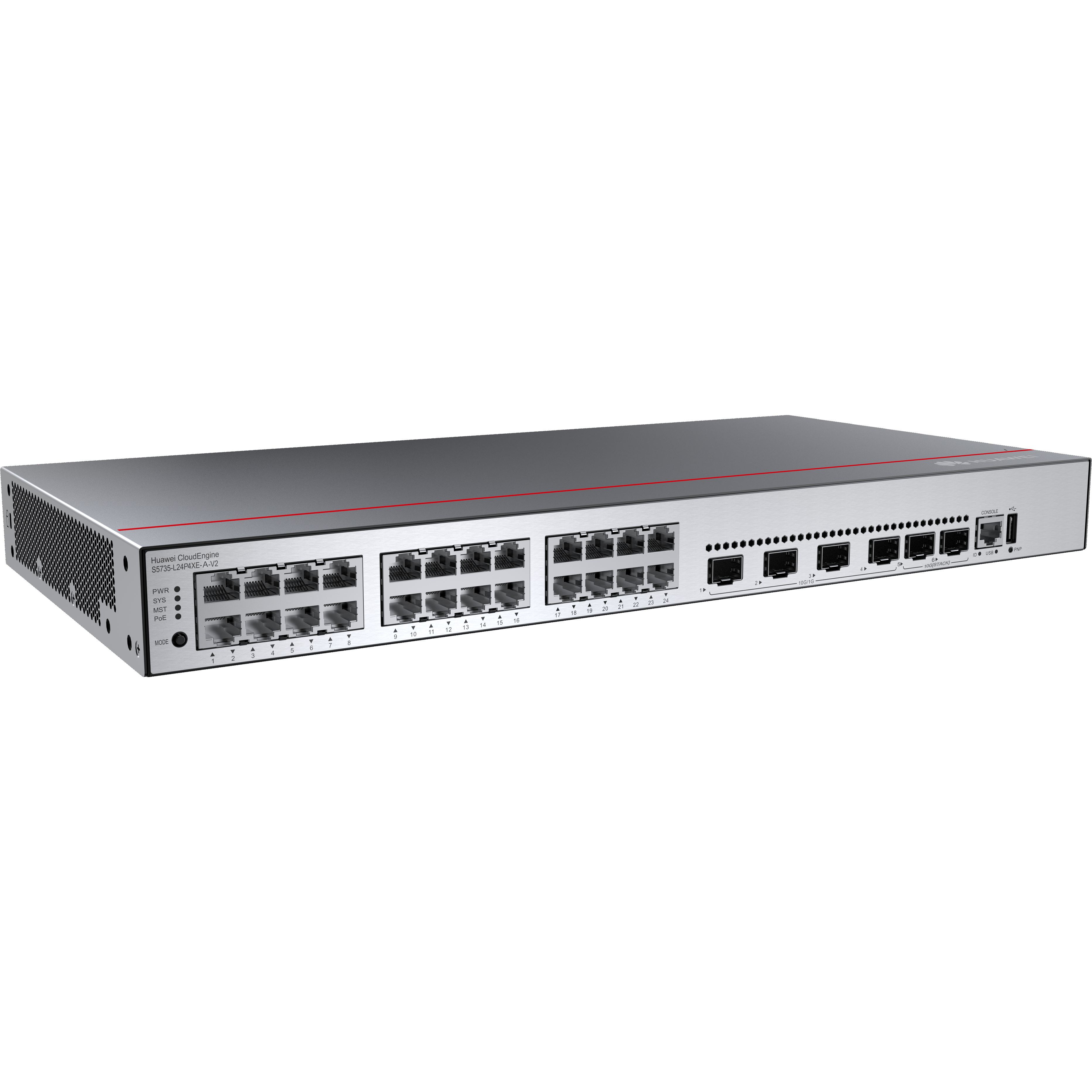

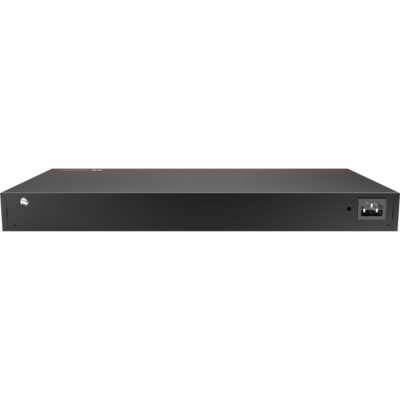

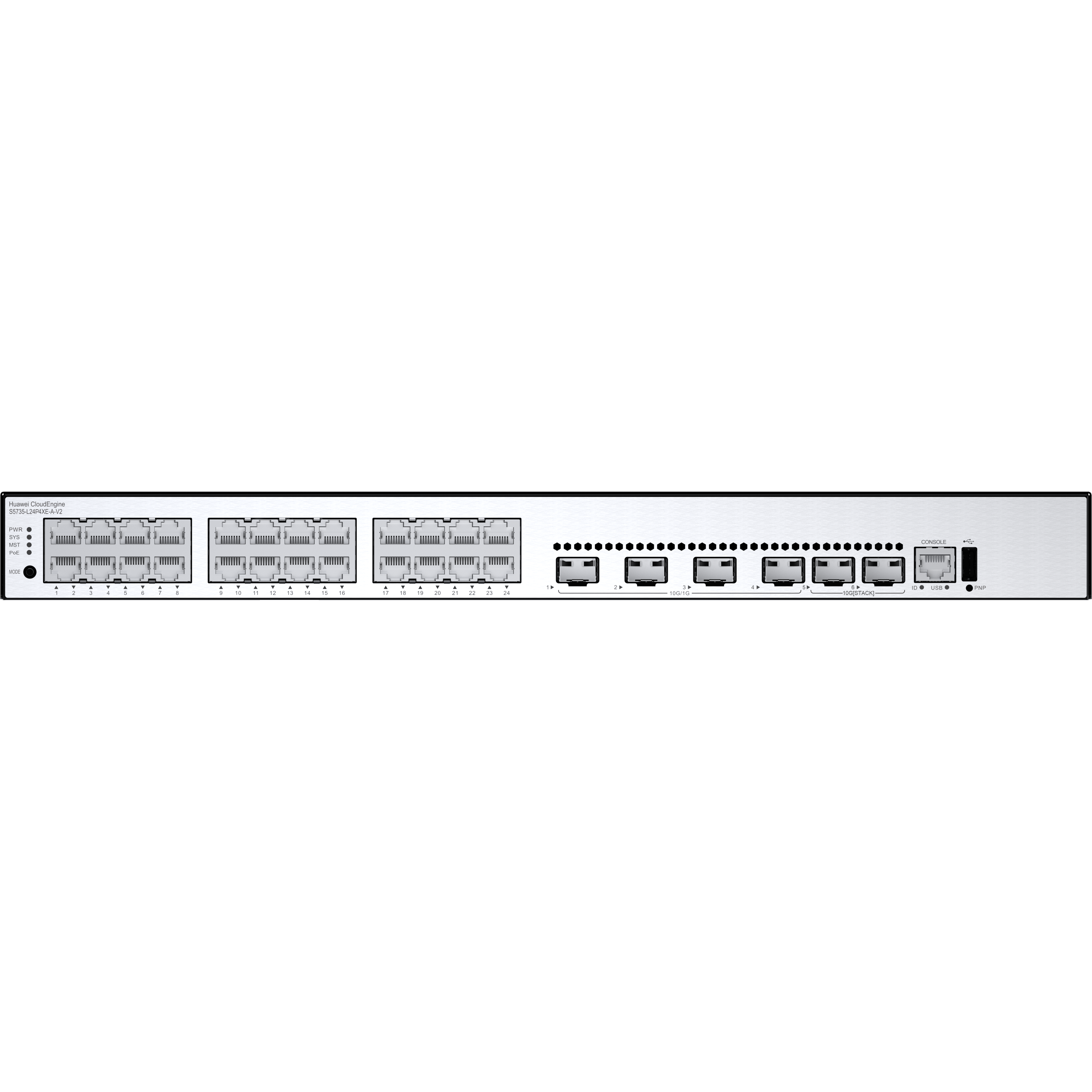

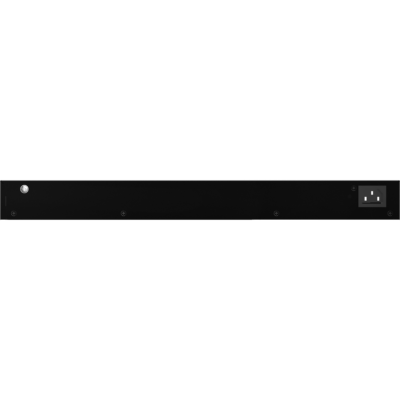

* NOTE: Image may not exactly match the product
Huawei S5735-L24P4XE-A-V2 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, AC power)
The Huawei S5735-L24P4XE-A-V2 is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports with Power over Ethernet (PoE+) capability, 4 high-speed 10GE SFP+ uplink ports, and 2 dedicated 12GE stacking ports for seamless network expansion. This versatile switch supports up to 370W PoE+ power budget, making it ideal for powering IP phones, wireless access points, and security cameras without additional power infrastructure. Key advantages include simplified network management through intelligent stacking technology, enhanced security with advanced access control features, energy-efficient design reducing operational costs, and robust performance with 336 Gbps switching capacity. The switch offers exceptional scalability for growing businesses, plug-and-play deployment, comprehensive network protection, and reliable 24/7 operation, making it the perfect solution for medium to large enterprises seeking cost-effective, future-ready network infrastructure with integrated power delivery capabilities.
