| PN | 98011318 |
|---|---|
| Model | S5735-L24P4X-A1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Weight without packaging [kg(lb)] | 2.96 kg (6.53 lb) |
| Weight with packaging [kg(lb)] | 3.93 kg (8.66 lb) |
| Typical power consumption [W] | 42.4 W |
| Typical heat dissipation [BTU/hour] | 144.67 BTU/hour |
| Maximum power consumption [W] | Not providing the PoE function: 53.8 W, 100% PoE loads: 433.8 W (PoE: 380 W) |
| Maximum heat dissipation [BTU/hour] | Not providing the PoE function: 183.57, 100% PoE loads: 1480.17 |
| Static power consumption [W] | 30.2 W |
| MTBF [year] | 52.74 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 50 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 38.2 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [??C(??F)] | -5??C to +55??C (23??F to 131??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC |
| Maximum input current [A] | 6 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | 98011318: Common mode: ??7 kV, 98011318-001: Common mode: ??2 kV |
| Power supply surge protection [kV] | ??6 kV in differential mode, ??6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

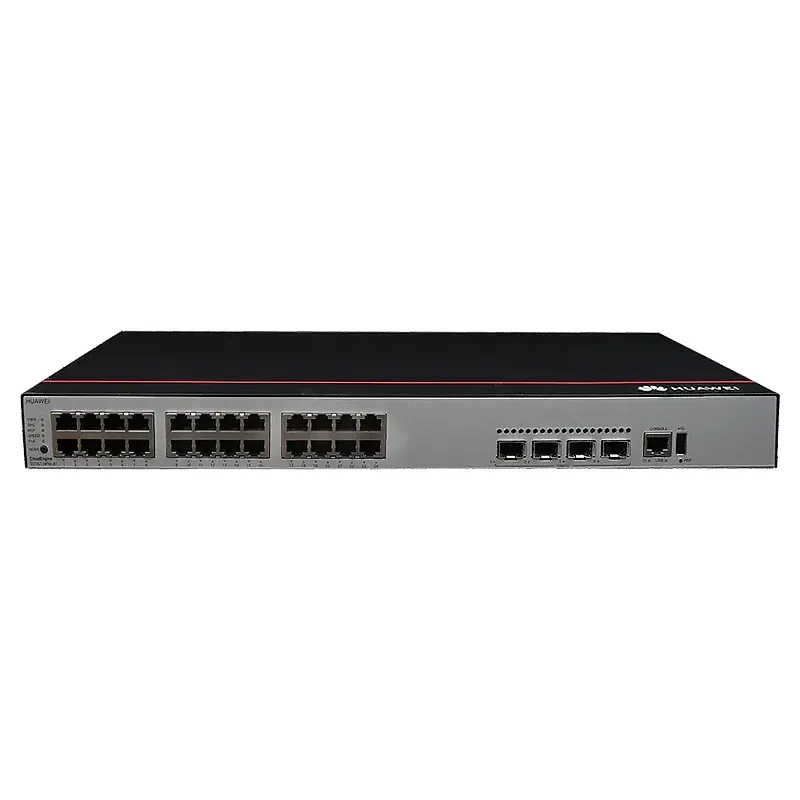

Huawei S5735-L24P4X-A1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power)
The Huawei S5735-L24P4X-A1 is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports with Power over Ethernet (PoE+) capability and 4 dedicated 10GE SFP+ uplink ports. This managed Layer 2/3 switch provides up to 370W PoE power budget, enabling direct power delivery to IP phones, wireless access points, and security cameras without additional power infrastructure. Key features include advanced security protocols, intelligent traffic management, energy-efficient design, and comprehensive network management tools. The switch offers exceptional scalability with 10Gbps uplinks, zero-touch deployment capabilities, and robust QoS controls, making it ideal for medium to large enterprises seeking reliable, cost-effective network infrastructure with simplified management and future-ready performance for demanding business applications.
