| PN | 98011321 |
|---|---|
| Model | S5735-L24P4S-A1 |
| Brand | Huawei |
| Warranty | 1 Year |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0 mm |
| Wide [mm] | 442.0 mm |
| Chassis height [U] | 1 |
| Weight with packaging | 3.91 kg (8.62 lb) |
| Weight without packaging | 2.94 kg (6.48 lb) |
| Maximum power consumption [W] | – Not providing the PoE function: 53.2 W/- 100% PoE loads: 433.2 W (PoE: 380 W) |
| Typical power consumption [W] | 41.7 |
| Maximum heat dissipation [BTU/h] | – Not providing the PoE function: 181.52/- 100% PoE loads: 1478.12 |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Typical heat dissipation [BTU/h] | 142.29 |
| Power supply mode | AC built-in |
| Input voltage range [V] | – AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz/- High-Voltage DC input: 190 V DC to 290 V DC |
| Rated input voltage [V] | – AC input: 100 V AC to 240 V AC, 50/60 Hz/- High-Voltage DC input: 240 V DC |
| Maximum input current [A] | 6 A |
| Number of power slots | 0 |
| Number of card slots | 0 |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Redundant power supply | Not supported |
| Types of fans | Built-in |
| Noise at normal temperature (acoustic pressure) | 38.2 |
| Noise at normal temperature (acoustic power) | 50 |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| Long-term operating temperature | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Short-term operating temperature | -5??C to +55??C (23??F to 131??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude | 0-5000 m (0-16404 ft.) |
| MTBF [year] | 55.72 |
| MTTR [h] | 2 |
| Availability | >0.99999 |
| Maximum number of physical ports on the entire device | 28 |
| Maximum number of 100GE ports | 0 |
| Maximum number of 40GE ports | 0 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 0 |
| Maximum number of GE ports | 28 |
| Maximum number of FE ports | 28 |
| 1000M electrical interface | 24 |
| 1000M optical interface | 4 |
| USB | Not supported |
| Console port | RJ45 |
| Eth Management port | Not supported |
| Service port surge protection | Common mode: ??7 kV |
| Power supply surge protection | ??6 kV in differential mode, ??6 kV in common mode |
| RPS input | Not supported |
| PoE | Supported |
| PoE power supply | Supported |
* NOTE: Image may not exactly match the product

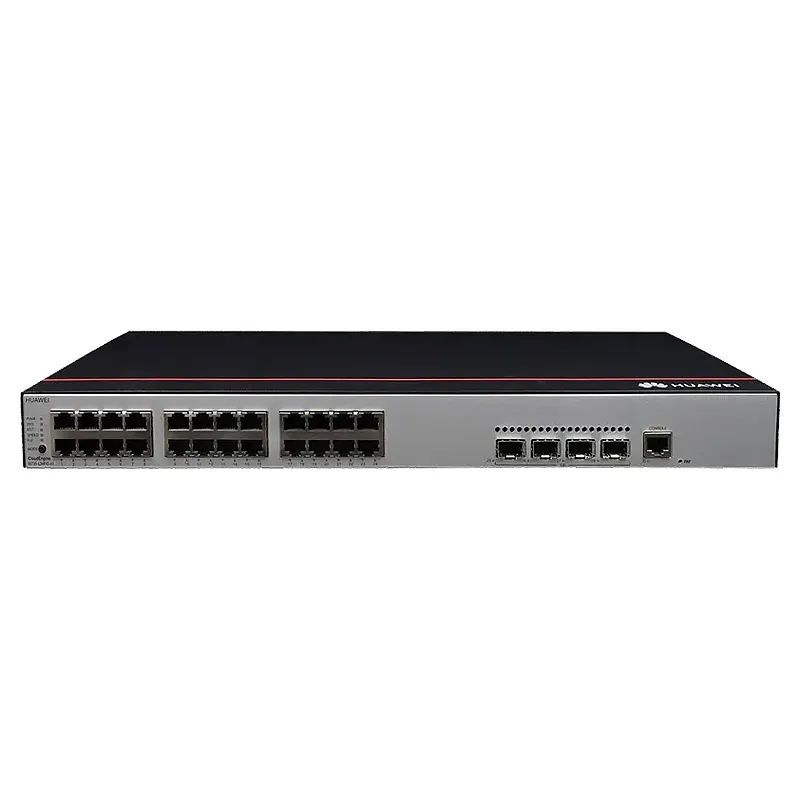

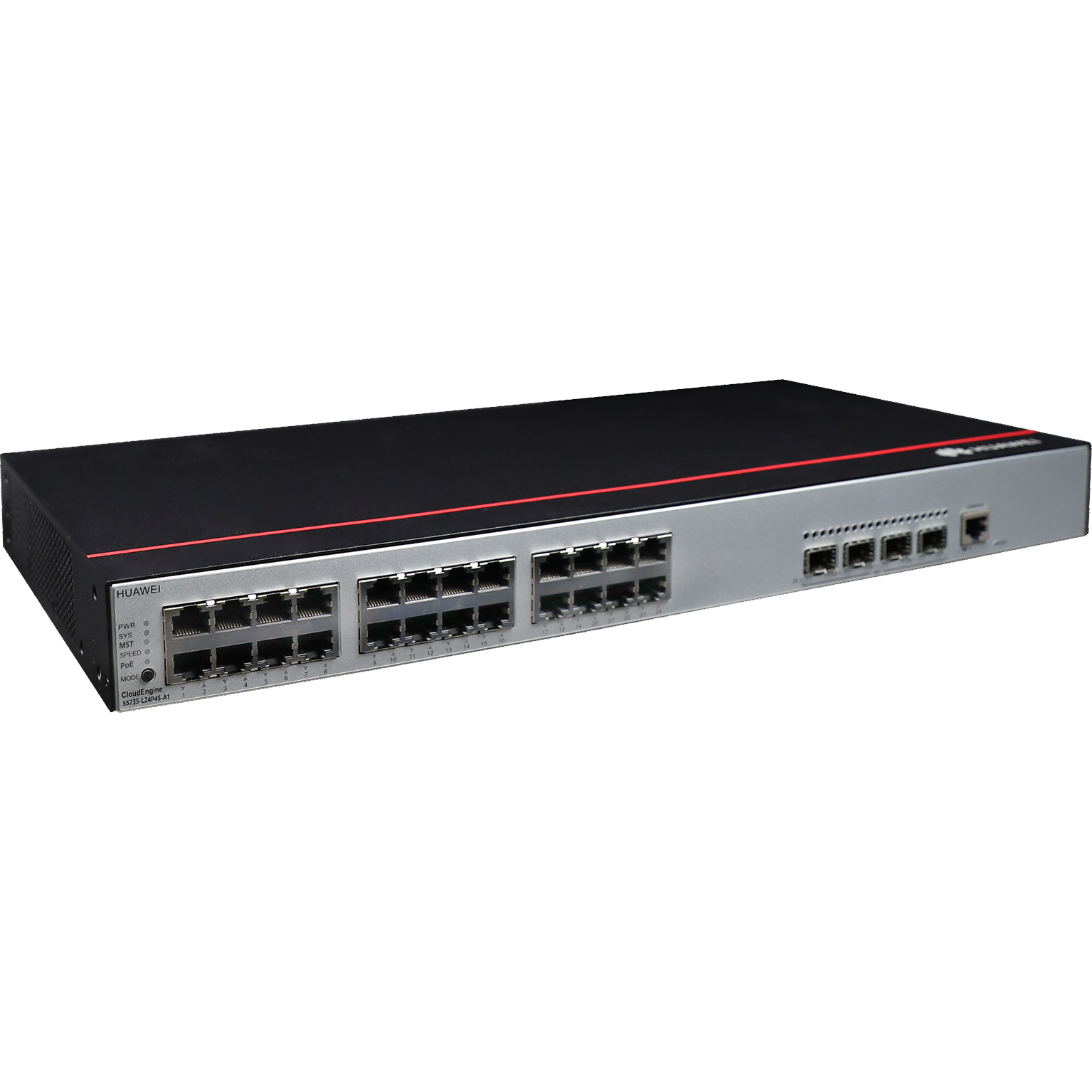

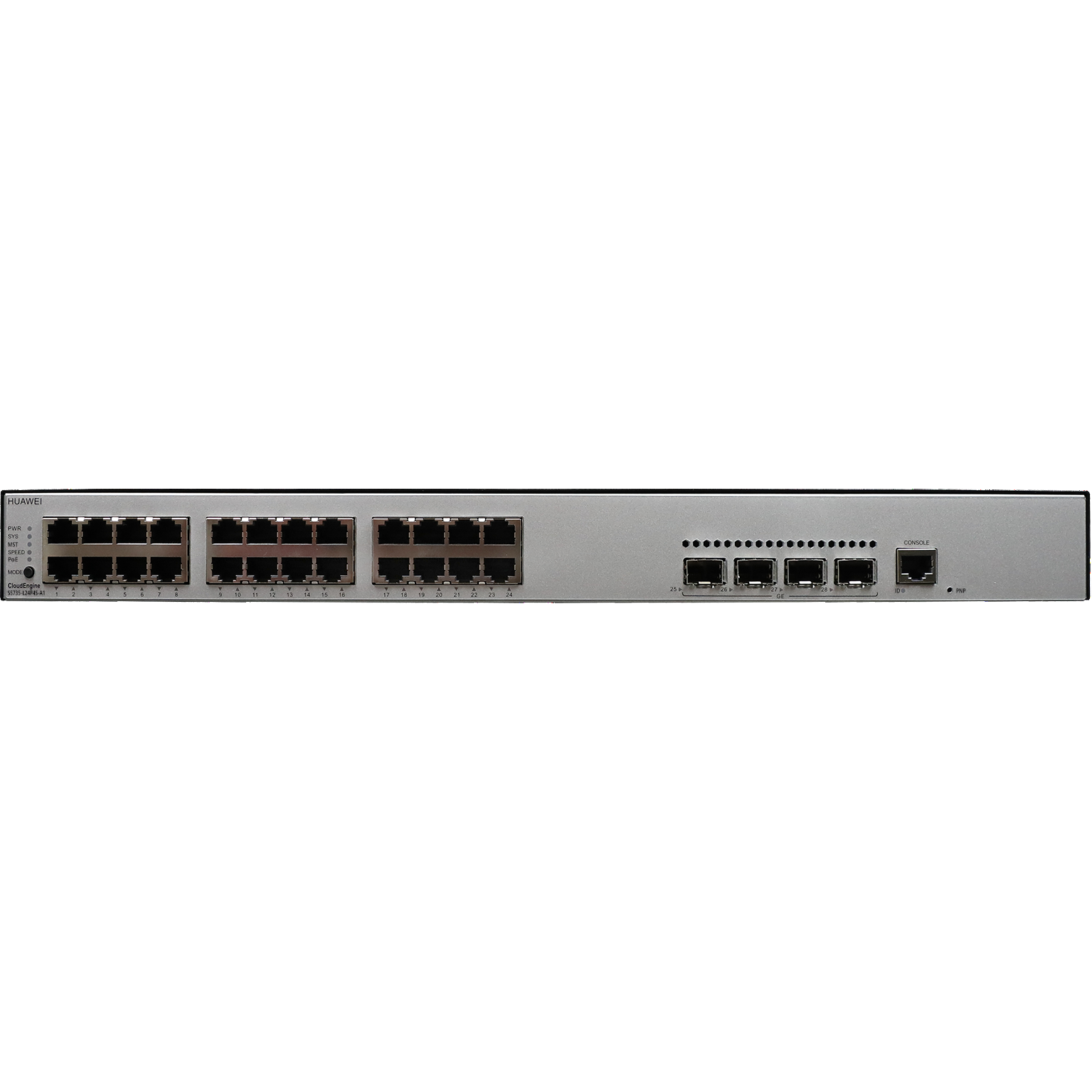

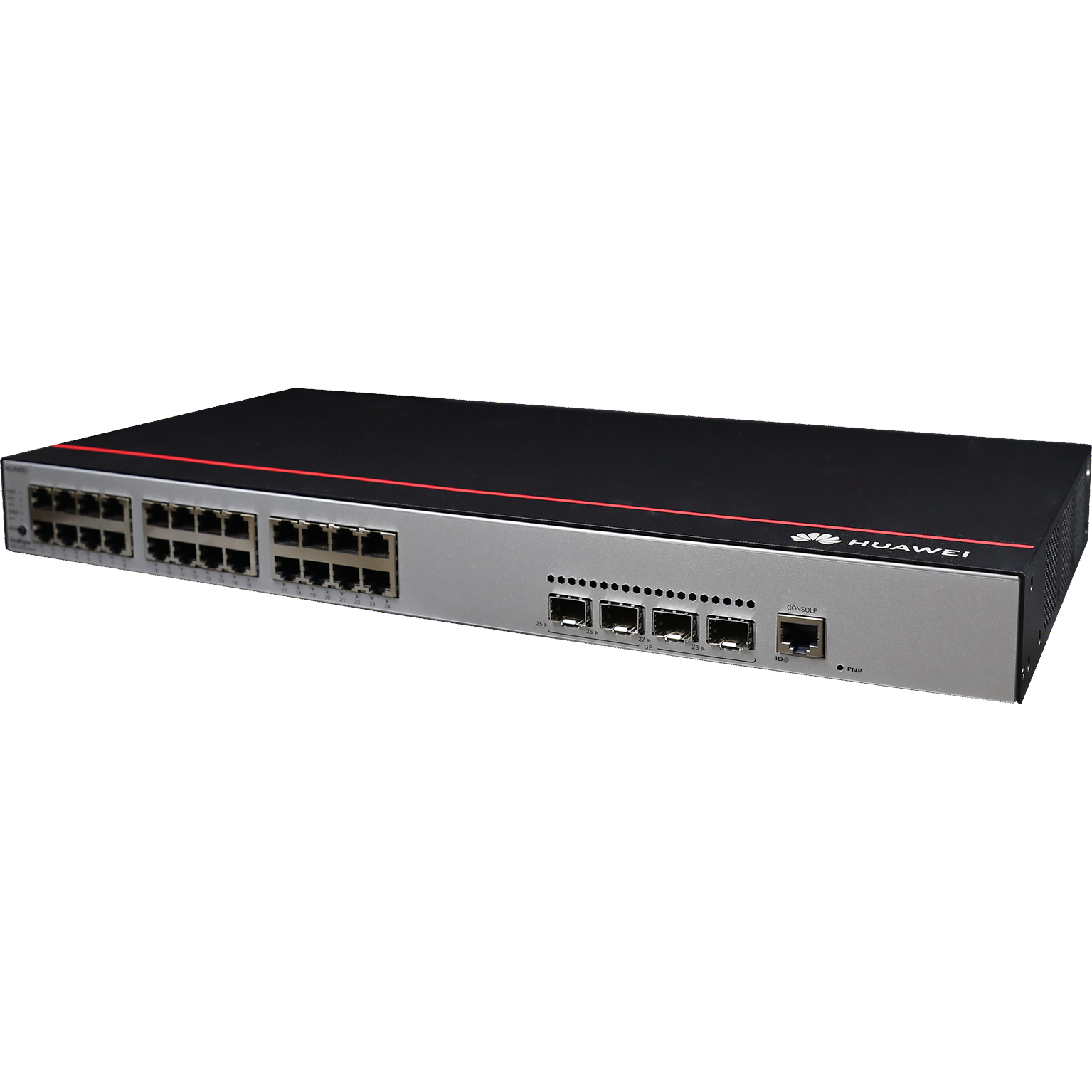

Huawei S5735-L24P4S-A1 (24*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power)
The Huawei S5735-L24P4S-A1 is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports with Power over Ethernet (PoE) capability and 4 SFP uplink ports. This versatile switch powers and connects IP phones, wireless access points, and security cameras through its PoE functionality, eliminating the need for separate power cables. With robust 10/100/1000BASE-T connectivity, flexible SFP uplink options for fiber connections, and AC power supply, it provides reliable network infrastructure for small to medium businesses. The switch offers simplified deployment, reduced cabling costs, centralized power management, and scalable connectivity, making it ideal for modern office environments requiring efficient network performance and device power delivery in a single, cost-effective solution.
