| Brand | Huawei |
|---|---|
| Model | S5735-L24P4S-A |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 8.94" |
| Flash | 512MB |
| PN | 98010924 |
| Availability | >0.99999 |
| RTC | Not supported |
| Memory | 1GB |
| Wide [mm] | 442.0mm |
| Height [mm] | 43.6mm |
| Power supply surge protection | 6 kV" differential mode, 6 kV" common mode |
| RPS | Not supported |
| Rated voltage range | AC"put: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC"put: 240 V DC |
| Maximum voltage range | AC"put: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC"put: 190 V DC to 290 V DC |
| Operating temperature | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F). |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Stack ports | Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable" V200R019C10 and later versions) |
| Noise under normal temperature (27C, sound power) | < 57.7 dB(A) |
| Depth [mm] | 220.0mm |
| Maximum Power | NotprovidingthePoEfunction:53W, 100%PoEloads:451W(PoE:380W) |
| Weight (with packaging) | 4.31 kg (9. lb) |
| Short-term operating temperature | -5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 50C (122F) consecutively for at most 96 hours" one year. The equipment operates at a temperature of over 50C (122F) for a total of no more than 360 hours" one year. The equipment operates at a temperature of over 50C (122F) for no more" 15 times" one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0C (32F). The maximum distance of optical modules used" these conditions cannot exceed 10 km. |

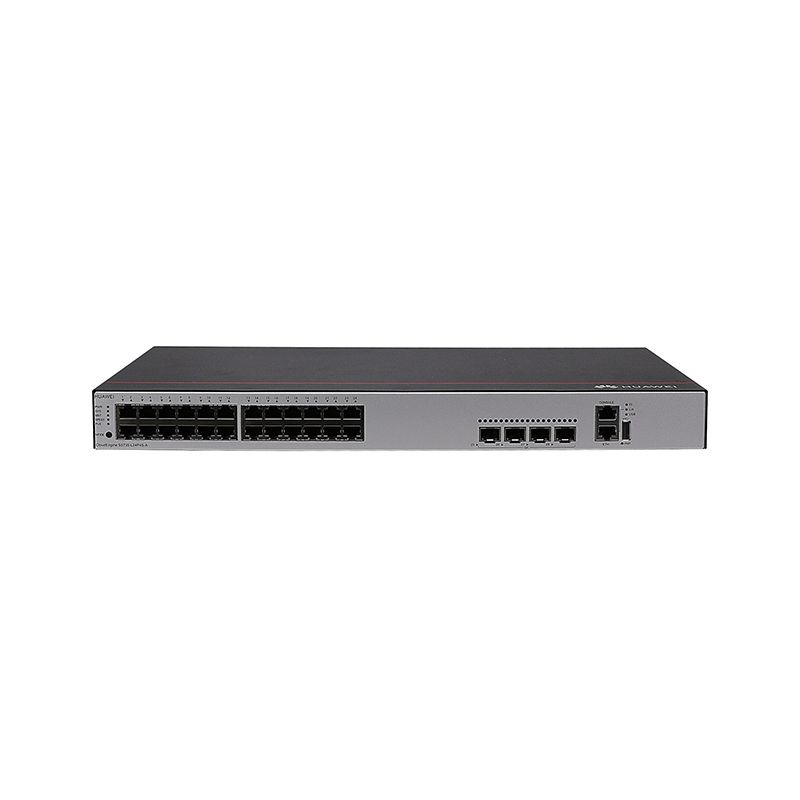

* NOTE: Image may not exactly match the product
Huawei S5735-L24P4S-A (24 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+)
The Huawei S5735-L24P4S-A is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports with Power over Ethernet (PoE) capability and 4 SFP uplink ports. This managed switch provides seamless power and data transmission to PoE-enabled devices like IP cameras, wireless access points, and VoIP phones, eliminating the need for separate power cables. Key features include advanced Layer 2/3 switching capabilities, robust security protocols, intelligent traffic management, and energy-efficient design. The switch offers flexible deployment options with SFP ports for fiber connectivity, comprehensive network management tools, and reliable performance for small to medium enterprises. Its PoE functionality reduces installation costs and complexity while ensuring centralized power management, making it ideal for modern IP-based network infrastructures requiring both connectivity and power delivery in a single, cost-effective solution.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Huawei |
|---|---|
| Model | S5735-L24P4S-A |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 8.94" |
| Flash | 512MB |
