PN | 98010918 |
---|---|
Model | S5735-L12T4S-A |
Brand | Huawei |
Warranty | 1 Year |
Products Status | New |
Height [mm] | 43.6 mm |
Depth [mm] | 220.0mm |
Wide [mm] | 442.0mm |
Chassis height [U] | 1 |
Weight (with packaging) | 3.83 kg (8.44 lb) |
Memory (RAM) | 1 GB |
Flash | 512 MB in total. To view the available flash memory size, run the?display version?command. |
Mean time between failures (MTBF) | 98.6 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ??7 kV |
Power supply surge protection | ??6 kV in differential mode, ??6 kV in common mode |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
Stack ports | Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions) |
RTC | Not supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC |
Maximum voltage range | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC input: 190 V DC to 290 V DC |
Maximum power consumption (100% throughput) | 29 W |
Typical power consumption (30% of traffic load) ??Tested according to ATIS standard ??EEE enabled ??No PoE power consumption | 23 W |
Operating temperature | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0??C (32??F). The operating temperature of the switch is -5??C to +40??C (23??F to 104??F) when it uses GE SFP optical modules with 40 km or longer transmission distance. When SFP+ copper cables or dedicated stack cables are used to set up a stack, the switch can operate in the following temperature range: -5??C to +45??C (23??F to 113??F) (installed in the ventilation cabinet, with the wind speed of at least 40 LFM) When SFP+ AOC cables or 10GE SFP+ optical modules are used to set up a stack, the switch can operate in the following temperature range: -5??C to +45??C (23??F to 113??F) (installed in the ventilation cabinet shipped with fans with a fan speed of at least 200 LFM) |
Storage temperature | -40??C to +70??C (-40??F to +158??F) |
Noise under normal temperature (27??C, sound power) | Noise-free (no fans) |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification | EMC certification, Safety certification, Manufacturing certification |

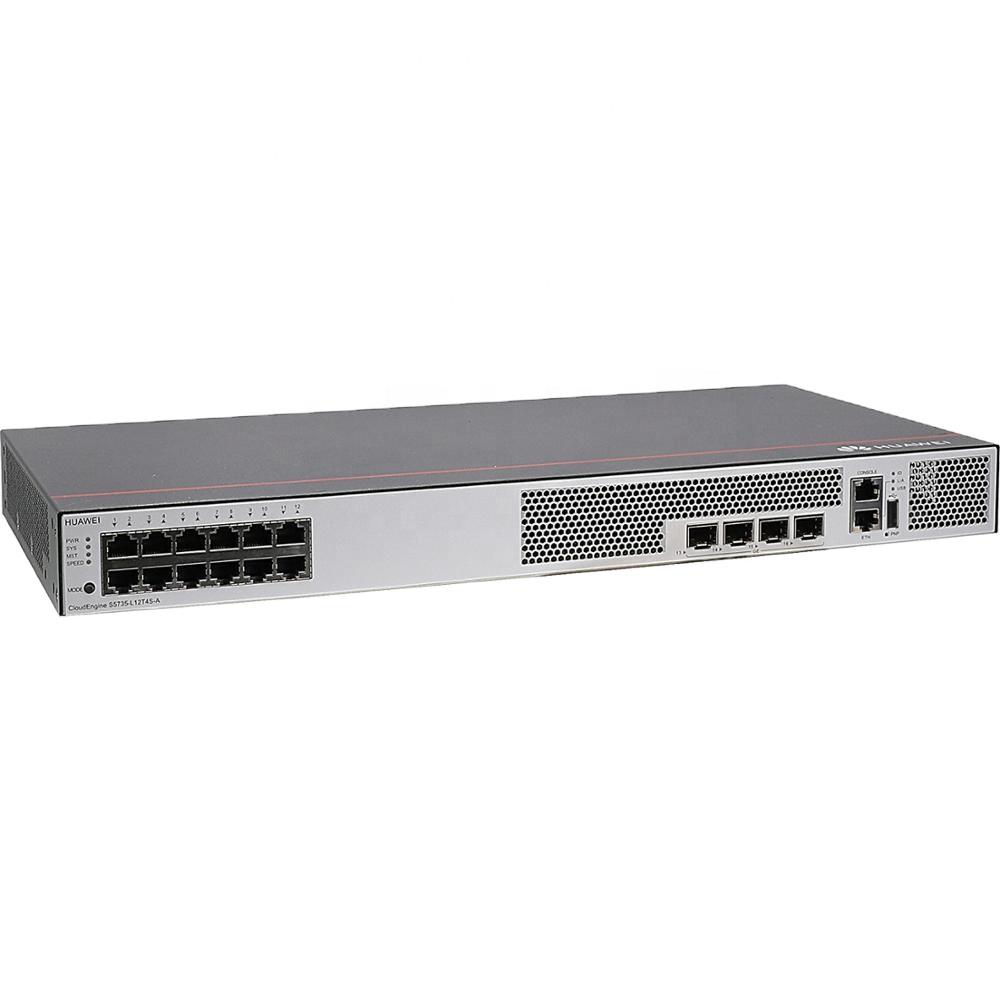

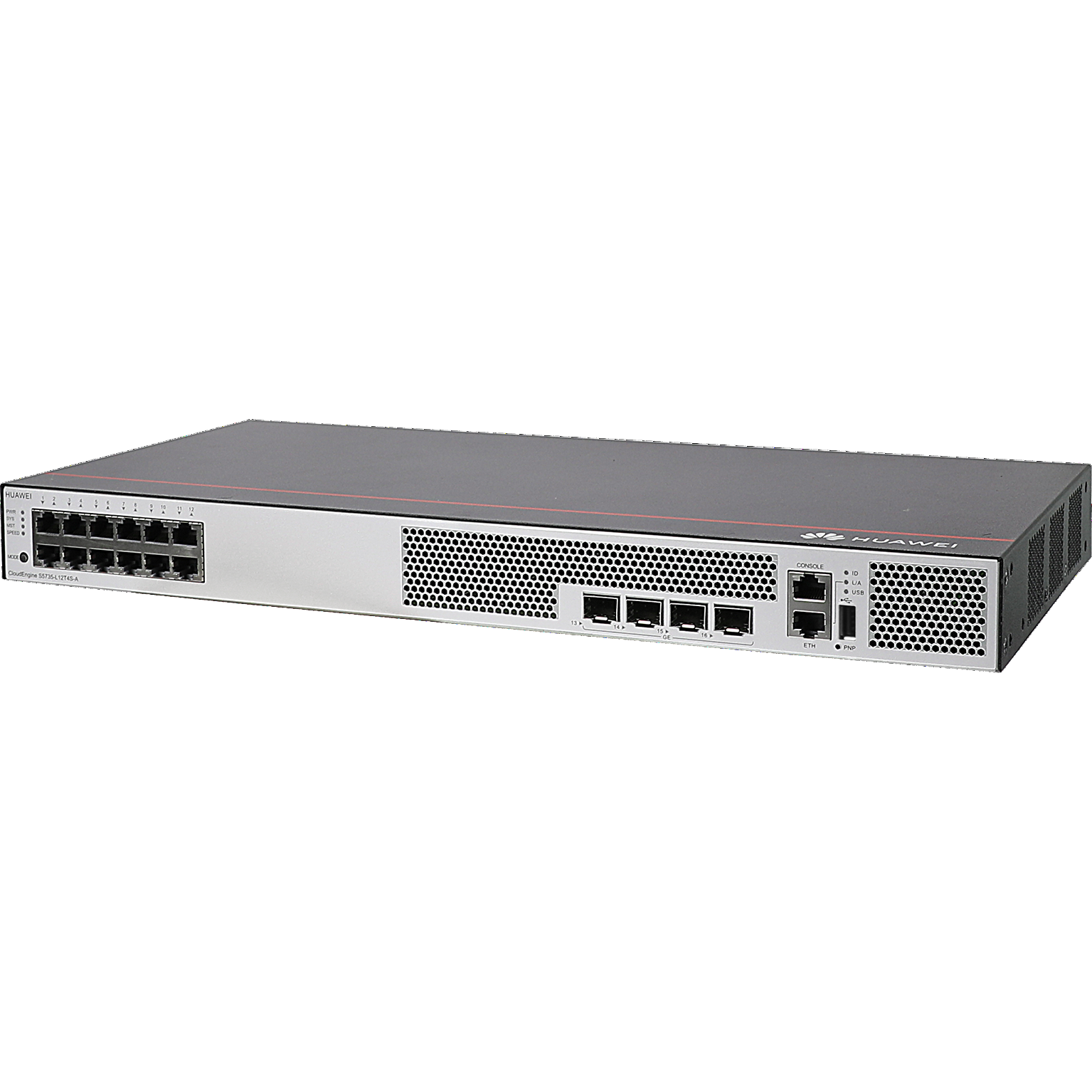

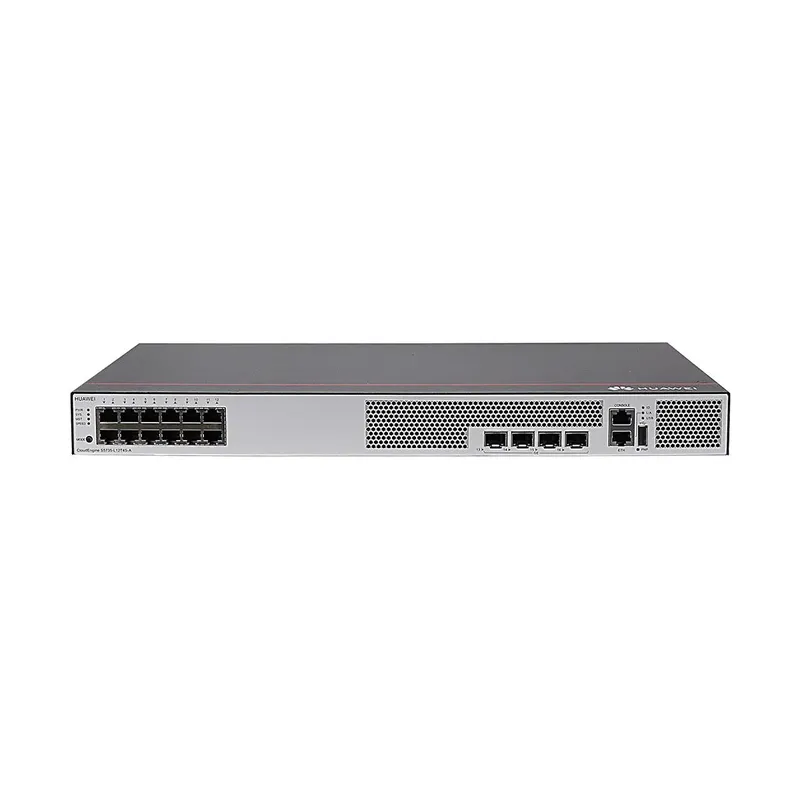

Huawei S5735-L12T4S-A (12 x 10/100/1000Base-T ports, 4 x GE SFP ports)
The Huawei S5735-L12T4S-A is a high-performance enterprise switch delivering 12 Gigabit Ethernet ports and 4 SFP slots for flexible fiber connectivity. This energy-efficient switch features advanced Layer 2/3 capabilities, comprehensive security protocols, and intelligent traffic management. Key benefits include simplified network deployment, reduced operational costs through smart power management, and seamless scalability for growing businesses. Its fanless design ensures silent operation, making it ideal for office environments, while supporting advanced features like VLAN, QoS, and network virtualization. The switch offers enterprise-grade reliability with redundant power options and comprehensive network monitoring, making it perfect for small to medium businesses requiring robust, future-ready networking infrastructure.
