| PN | 98011847 |
|---|---|
| Model | S5731-S48T4X |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Weight without packaging [kg(lb)] | 5.01 kg (11.05 lb) |
| Weight with packaging [kg(lb)] | 7.54 kg (16.62 lb) |
| Typical power consumption [W] | 78 W |
| Typical heat dissipation [BTU/hour] | 266.14 BTU/hour |
| Maximum power consumption [W] | 111 W |
| Maximum heat dissipation [BTU/hour] | 378.74 BTU/hour |
| Static power consumption [W] | 50 W |
| MTBF [year] | 73.81 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 45.62 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 31.94 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 2 |
| Redundant power supply | 1+1, Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together. |
| Long-term operating temperature [??C(??F)] | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Storage temperature [??C(??F)] | ?C40??C to +70??C (?C40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0?C5000 m (0?C16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 Hz, High-voltage DC input: 240 V DC, DC input: ?C48 V DC to ?C60 V DC |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC; 45?C65 Hz, High-voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Memory | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | Configured with AC power modules: ??6 kV in differential mode and ??6 kV in common mode, Configured with DC power modules: ??2 kV in differential mode and ??4 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air flows in from the left, right, and front, and flows out from the rear. |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |

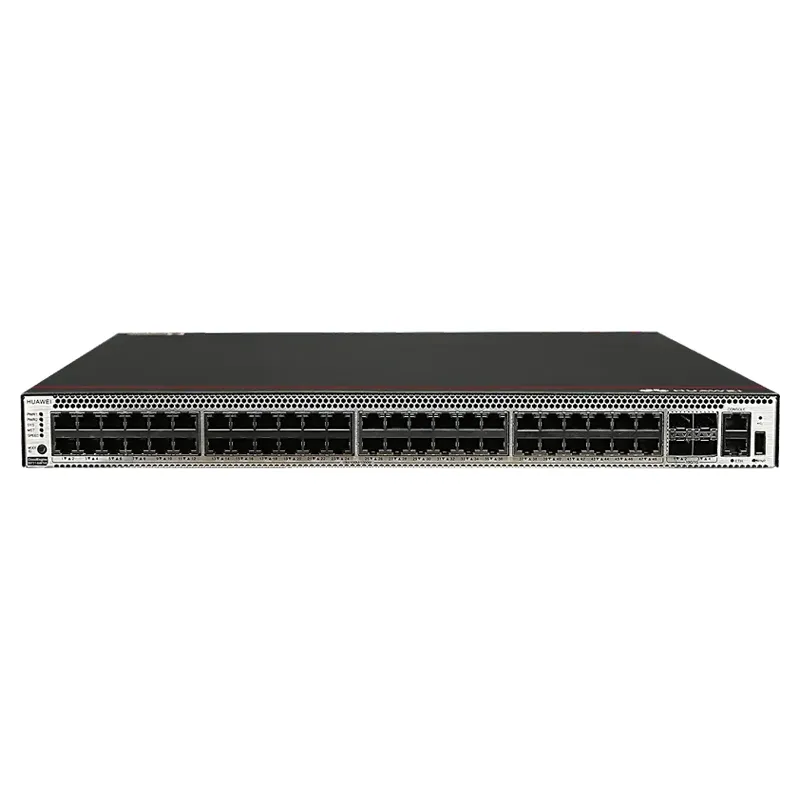

* NOTE: Image may not exactly match the product
Huawei S5731-S48T4X (48*10/100/1000BASE-T ports,4*10GE SFP+ ports,without power module)
The Huawei S5731-S48T4X is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports plus 4 10GE SFP+ uplink ports for superior network connectivity. This stackable switch offers advanced Layer 3 routing capabilities, comprehensive security features including ACLs and 802.1X authentication, and intelligent traffic management with QoS prioritization. Key benefits include flexible deployment options with modular power design, energy-efficient operation, centralized management through Huawei’s eSight platform, and seamless integration with existing network infrastructure. The switch excels in medium to large enterprise environments requiring reliable, scalable networking with future-proof 10G uplink capacity, making it ideal for data centers, campus networks, and growing businesses demanding robust performance and advanced network services.
