| PN | 98011801 |
|---|---|
| Model | S5731-S48S4X-A |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 550 mm x 355 mm (3.54 in. x 21.65 in. x 13.98 in.) |
| Weight without packaging [kg(lb)] | 3.49 kg (7.69 lb) |
| Weight with packaging [kg(lb)] | 4.85 kg (10.69 lb) |
| Typical power consumption [W] | 87.89 W |
| Typical heat dissipation [BTU/hour] | 299.89 BTU/hour |
| Maximum power consumption [W] | 121.04 W |
| Maximum heat dissipation [BTU/hour] | 413.00 BTU/hour |
| Static power consumption [W] | 47.28 W |
| MTBF [years] | 31.39 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 41.42 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 27.74 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [??C(??F)] | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | – AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | – AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Memory | 2 GB |
| Flash memory | The physical space is 1 GB. You can run the display version command to view the actual available space. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Not supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | – |
| Power supply surge protection [kV] | ??6 kV in differential mode; ??6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

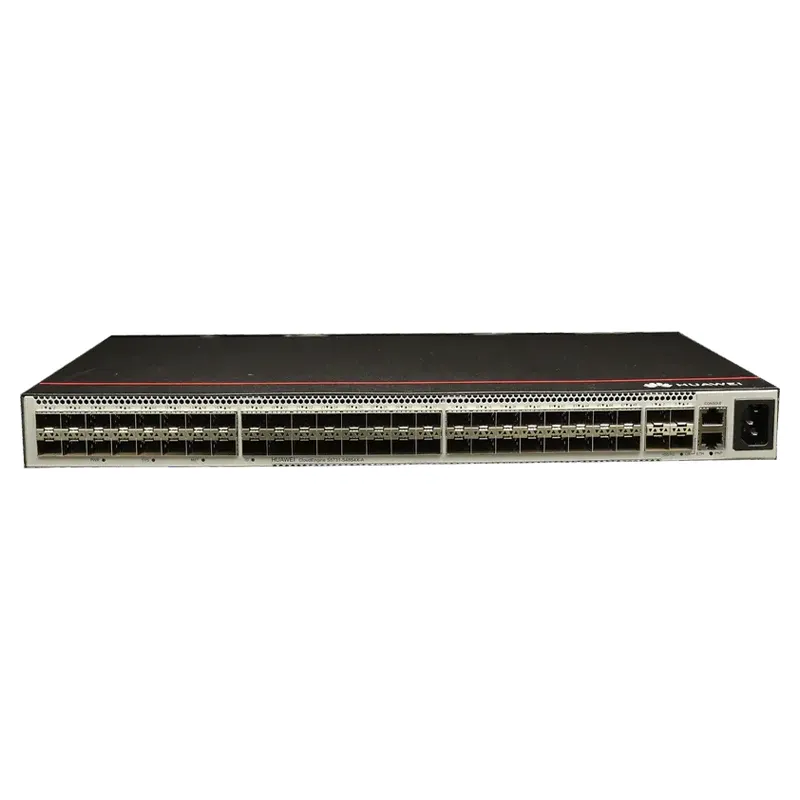

Huawei S5731-S48S4X-A(48*GE SFP ports, 4*10GE SFP+ ports, AC power, front access)
The Huawei S5731-S48S4X-A is a high-performance enterprise switch delivering exceptional network connectivity with 48 Gigabit Ethernet SFP ports and 4 10-Gigabit Ethernet SFP+ uplink ports. This versatile switch features front-panel access design for easy maintenance in rack environments, AC power supply for standard deployment, and advanced Layer 2/3 switching capabilities. Key benefits include flexible fiber connectivity options, scalable bandwidth up to 176 Gbps, comprehensive security features, and energy-efficient operation. The switch supports advanced protocols like VLAN, QoS, and network virtualization, making it ideal for campus networks, data centers, and enterprise aggregation layers. Its hot-swappable SFP modules ensure minimal downtime during upgrades, while the robust hardware design guarantees reliable 24/7 operation for mission-critical applications.
