| PN | 02353AJH |
|---|---|
| Model | S5731-S48P4X |
| Brand | Huawei |
| Warranty | 1 Year |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0 mm |
| Wide [mm] | 442.0 mm |
| Chassis height [U] | 1 |
| Weight (with packaging) | 8.8 kg (19.40 lb) |
| Fixed port | 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports |
| Memory (RAM) | 2 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 54.96 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ??6 kV |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Maximum power consumption (100% throughput, full speed of fans) | Not providing the PoE function: 132 W, 100% PoE loads: 1750 W (PoE: 1440 W) |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 108 W |
| Operating temperature | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 62.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??2 kV in differential mode, ??4 kV in common mode |
| Stack ports | 10GE SFP+ ports on the front panel |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Rated voltage range | AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz, DC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Products Status | New |

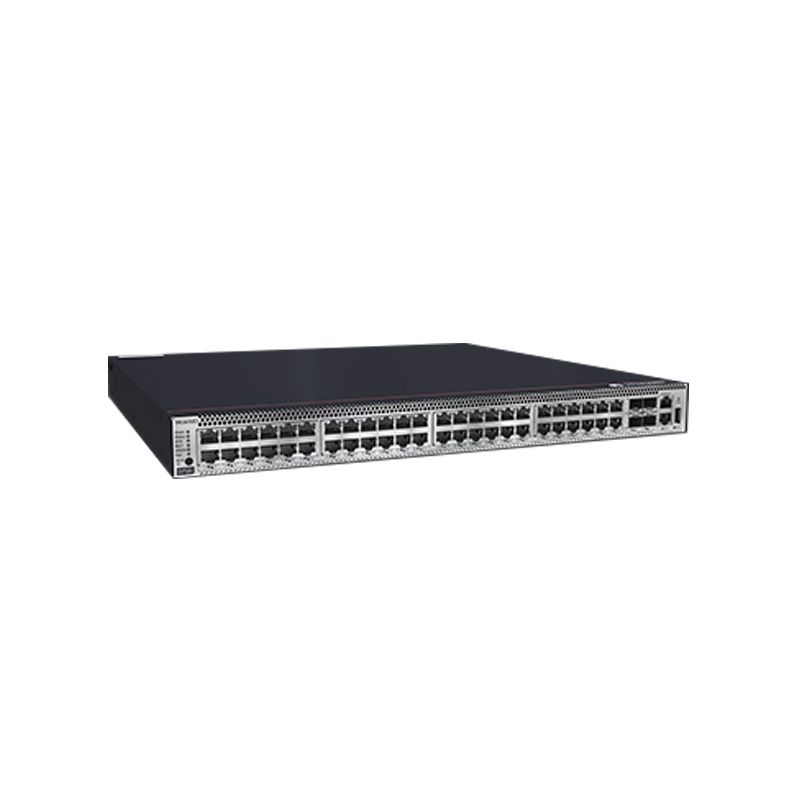

* NOTE: Image may not exactly match the product
Huawei S5731-S48P4X (48*10/100/1000BASE-T ports,4*10GE SFP+ ports,PoE+,without power module)
The Huawei S5731-S48P4X is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports with Power over Ethernet (PoE) capability and 4 dedicated 10GE SFP+ uplink ports. This versatile switch powers and connects IP phones, wireless access points, and security cameras through its PoE functionality while providing robust 10Gbps uplink connectivity for demanding network environments. Key advantages include simplified cable management through PoE integration, scalable 10GE uplinks for future network growth, enterprise-grade reliability, and flexible deployment options with its modular power design. Ideal for medium to large businesses requiring high-density PoE connectivity with premium uplink performance for unified communications, wireless infrastructure, and surveillance systems.
