| Brand | Huawei |
|---|---|
| Model | S5731-S32ST4X |
| Products Status | New |
| Dimensions | 7.28" x 25.59" x 21.65" |
| PN | 98011813 |
| Availability | >0.99999 |
| RTC | Supported |
| Memory | 2GB |
| Wide [mm] | 442.0mm |
| Height [mm] | 43.6mm |
| Console port | RJ45 |
| Power supply mode | Pluggable power supply |
| Heat dissipation mode | Heat dissipation with fan, "telligent fan speed adjustment |
| Input voltage range [V] | AC"put: 90 V AC to 290 V AC; 45 Hz to 65 Hz, High-voltage DC"put: 190 V DC to 290 V DC, DC"put: C38.4 V DC to C72 V DC |
| Rated"put voltage [V] | AC"put: 100 V AC to 240 V AC, 50/60 Hz, High-voltage DC"put: 240 V DC, DC"put: C48 V DC to C60 V DC |
| Maximum power consumption [W] | 104.82W(150WACor180WDC), 119.23W(600WAC) |
| Maximum"put current [A] | The current specifications depend on the pluggable power modules" use. For details, see the related power module specifications. |
| Eth Management port | RJ45 |
| RPS"put | Not supported |
| Number of power slots | 2 |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Airflow direction | Air"take from left, front and right, air exhaustion from behind |
| Static power consumption [W] | 44.5W |
| Types of fans | Built-in |
| Typical power consumption [W] | 73.56W |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 31.79 dB(A) |
| Weight without packaging [kg(lb)] | 4.9 kg (10.8 lb) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Service port surge protection [kV] | Common mode: 7 kV |
| Maximum heat dissipation [BTU/hour] | 357.66 (150 W AC or 180 W DC), 406.82 (600 W AC) |
| Typical heat dissipation [BTU/hour] | 250.99 BTU/hour |
| Power supply surge protection [kV] | Configured with AC power modules: 6 kV" differential mode and 6 kV" common mode, Configured with DC power modules: 2 kV" differential mode and 4 kV" common mode |
| Weight with packaging [kg(lb)] | 7.43 kg (16.38 lb) |
| Long-term operating temperature [C(F)] | -5C to +45C (23F to 113F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [C(F)] | -40C to +70C (-40F to +158F) |
| Noise at normal temperature (acoustic power) [dB(A)] | 45.47 dB(A) |
| Short-term operating temperature [C(F)] | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) |
| MTBF [years] | 71.54 years |
| Ingress protection level (dustproof/waterproof) | IP20 |
* NOTE: Image may not exactly match the product

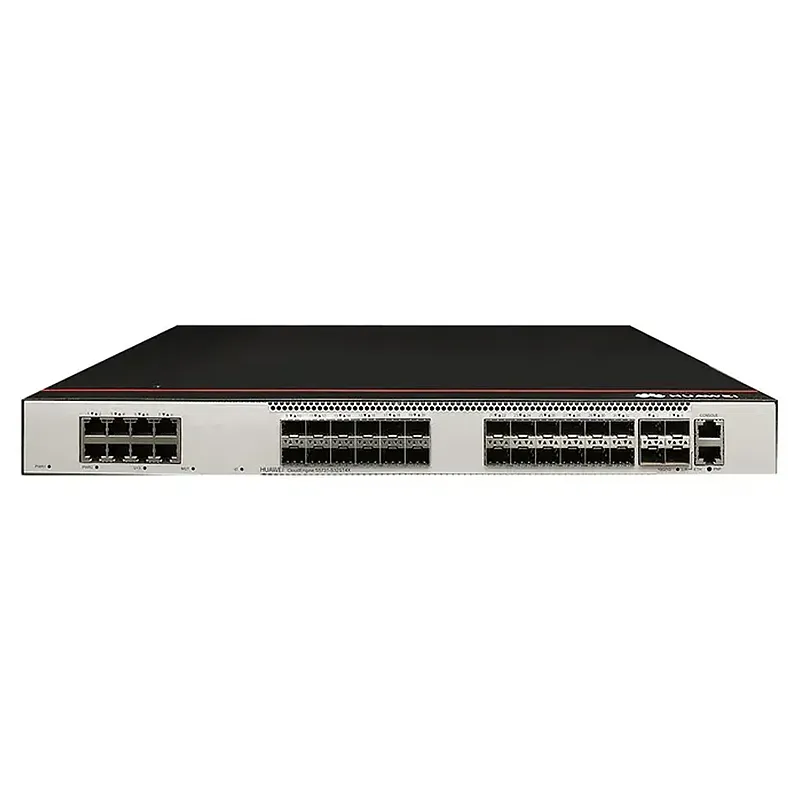

Huawei S5731-S32ST4X(8*10/100/1000BASE-T ports, 24*GE SFP ports, 4*10GE SFP+ ports, without power module)
The Huawei S5731-S32ST4X is a high-performance enterprise switch delivering exceptional network flexibility with 36 ports total: 8 copper Gigabit Ethernet ports, 24 SFP Gigabit ports, and 4 10-Gigabit SFP+ uplink ports. This modular design enables seamless fiber and copper connectivity while providing 10GE backbone capacity for demanding applications. Key advantages include hot-swappable SFP modules for easy maintenance, scalable bandwidth up to 10Gbps, advanced Layer 2/3 switching capabilities, and energy-efficient operation. The switch supports comprehensive network management, VLAN segmentation, and Quality of Service features, making it ideal for medium to large enterprises requiring reliable, high-speed connectivity with room for future expansion. Its modular power design allows for redundant power supply options, ensuring maximum uptime for mission-critical networks.
