| PN | 98011808 |
|---|---|
| Model | S5731-S32ST4X-A |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 550 mm x 355 mm (3.54 in. x 21.65 in. x 13.98 in.) |
| Weight without packaging [kg(lb)] | 3.13 kg (6.9 lb) |
| Weight with packaging [kg(lb)] | 4.49 kg (9.9 lb) |
| Typical power consumption [W] | 66.85 W |
| Typical heat dissipation [BTU/hour] | 228.10 BTU/hour |
| Maximum power consumption [W] | 93.92 W |
| Maximum heat dissipation [BTU/hour] | 320.46 BTU/hour |
| Static power consumption [W] | 41.71 W |
| MTBF [years] | 32.56 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 41.42 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 27.74 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature [??C(??F)] | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [??C(??F)] | -5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [??C(??F)] | -40??C to +70??C (-40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | – AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | – AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Memory | 2 GB |
| Flash memory | The physical space is 1 GB. You can run the display version command to view the actual available space. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Not supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ??7 kV |
| Power supply surge protection [kV] | ??6 kV in differential mode; ??6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

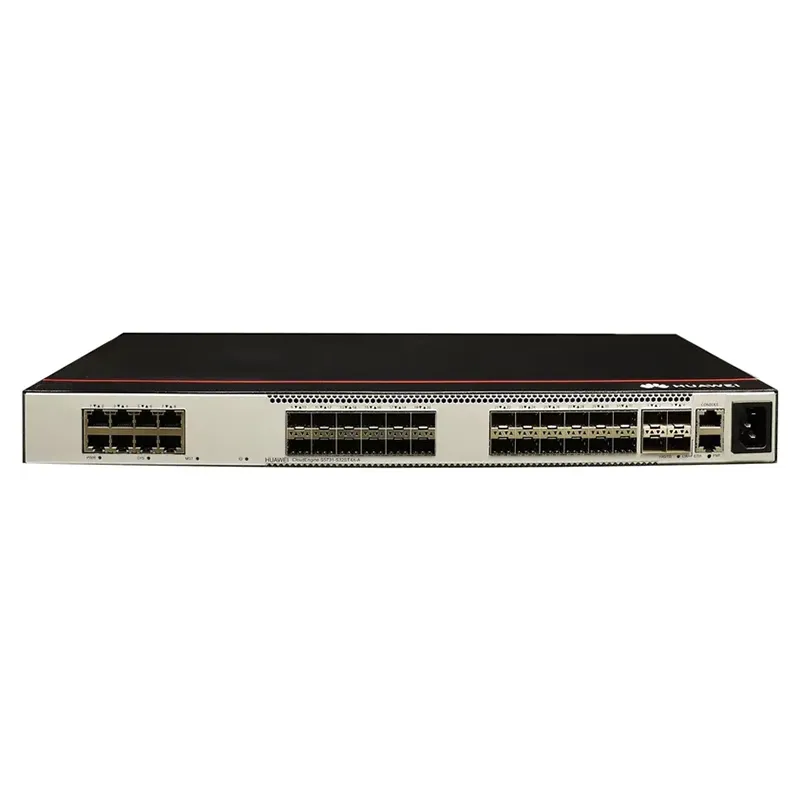

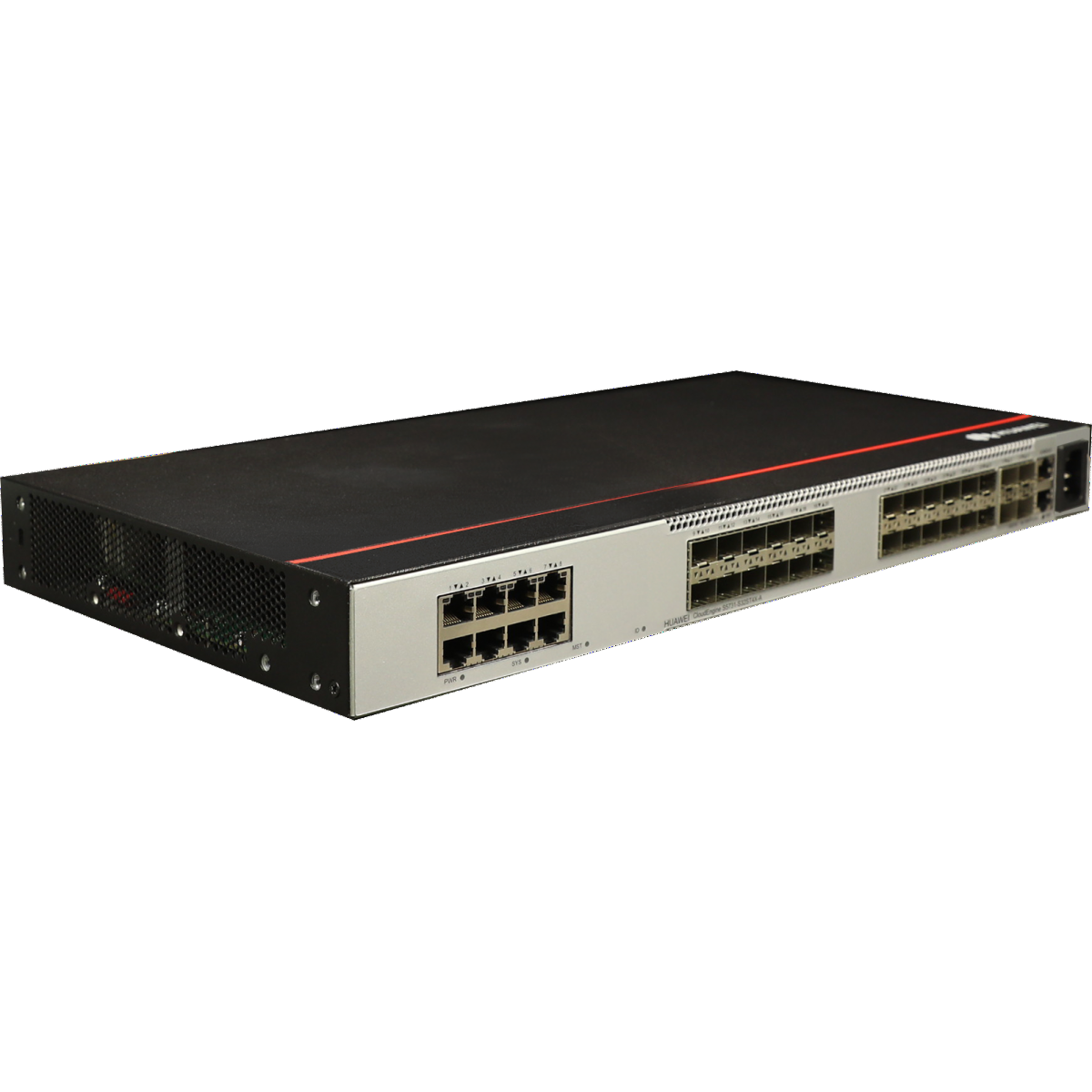

Huawei S5731-S32ST4X-A(8*10/100/1000BASE-T ports, 24*GE SFP ports, 4*10GE SFP+ ports, AC power, front access)
The Huawei S5731-S32ST4X-A is a high-performance enterprise switch delivering exceptional network flexibility with 36 total ports: 8 copper Gigabit Ethernet ports, 24 SFP Gigabit ports, and 4 10-Gigabit SFP+ uplink ports. This versatile switching solution supports both copper and fiber connectivity, enabling seamless integration in mixed network environments. Key advantages include scalable 10GE uplinks for high-bandwidth applications, hot-swappable SFP modules for minimal downtime, front-panel access for easy maintenance in rack deployments, and reliable AC power supply. Ideal for enterprise campus networks, data centers, and aggregation layers requiring robust performance, flexible connectivity options, and future-proof 10-Gigabit capabilities in a compact, manageable form factor.
