| PN | 02353AHX |
|---|---|
| Model | S5731-S24P4X |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Memory (RAM) | 2 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the?display version command. |
| Mean time between failures (MTBF) | 57.21 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ??6 kV |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??2 kV in differential mode, ??4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Weight (with packaging) | 8.6 kg (18.96 lb) |
| Stack ports | 10GE SFP+ ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | Not providing the PoE function: 121 W, 100% PoE loads: 977 W (PoE: 720 W) |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 95 W |
| Operating temperature | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0??C (32??F). |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 62.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

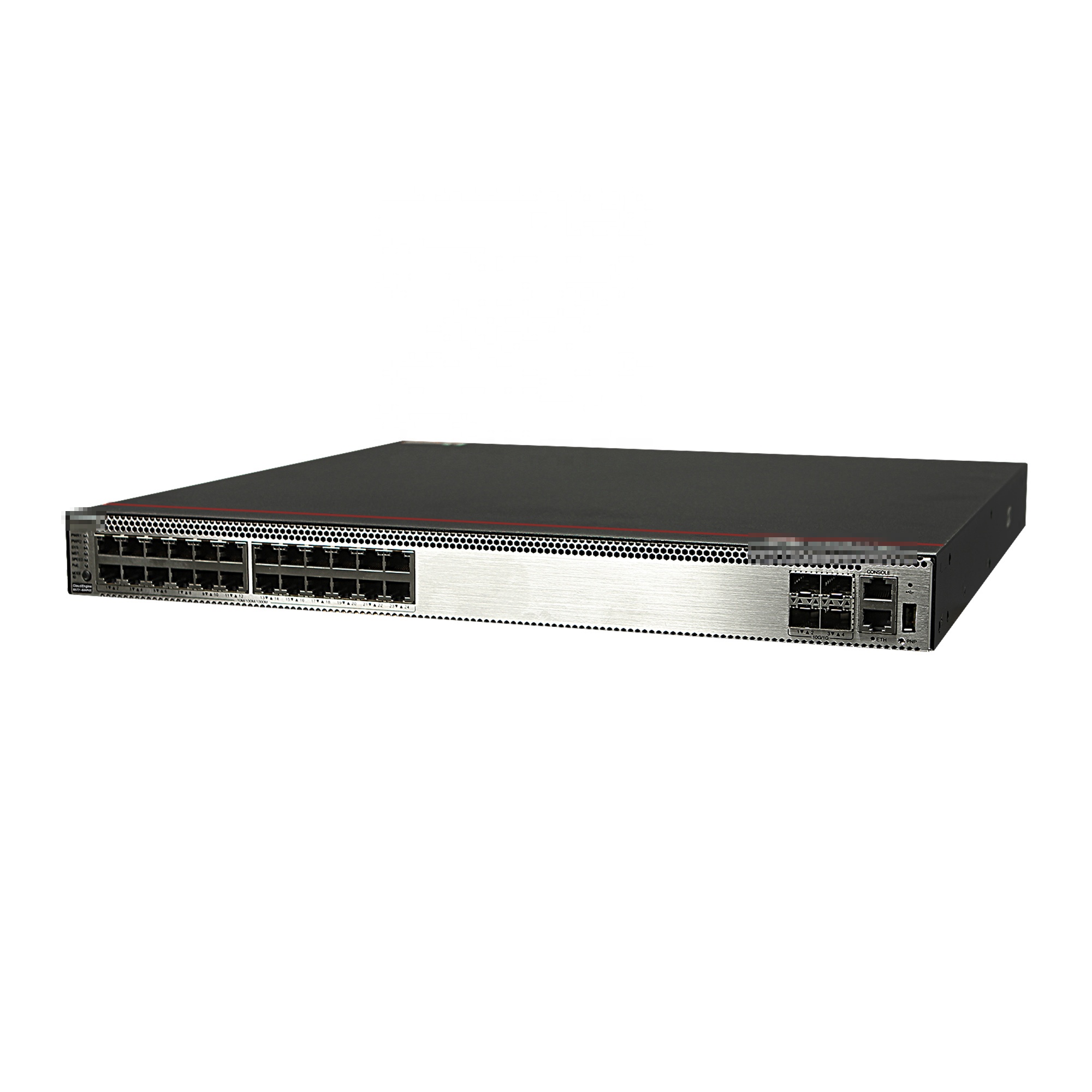

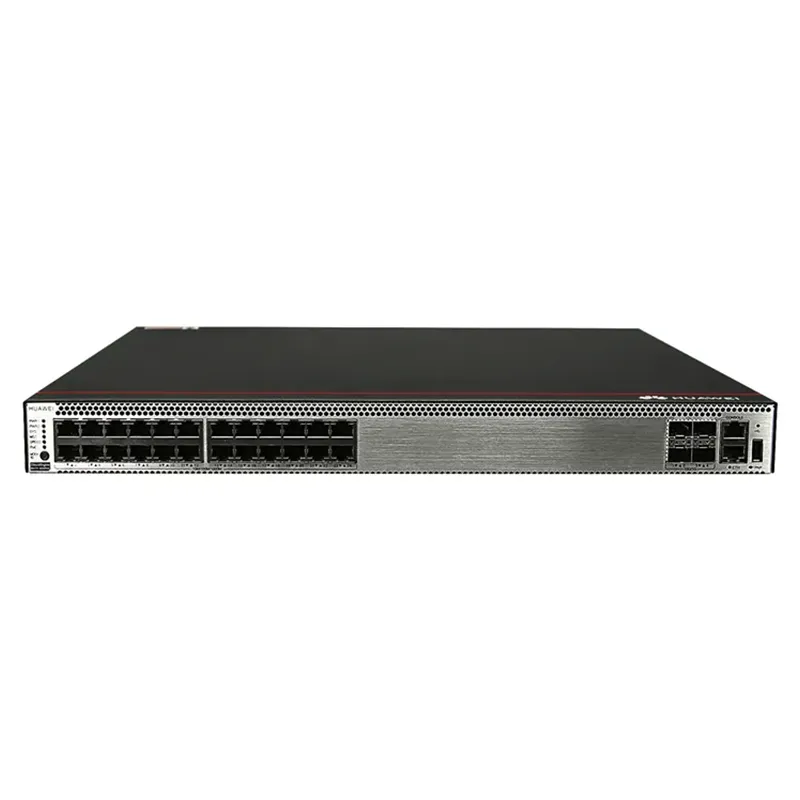

Huawei S5731-S24P4X (24*10/100/1000BASE-T ports,4*10GE SFP+ ports,PoE+, without power module)
The Huawei S5731-S24P4X is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports with Power over Ethernet (PoE) capability and 4 dedicated 10GE SFP+ uplink ports. This versatile switch powers IP phones, wireless access points, and IoT devices directly through its PoE-enabled ports, eliminating the need for separate power adapters. The four 10-Gigabit SFP+ ports provide high-speed backbone connectivity and future-proof network scalability. Key advantages include simplified cable management through PoE integration, reduced infrastructure costs, flexible deployment options with the modular power design, and robust performance for demanding enterprise environments. The switch supports advanced Layer 2/3 features, comprehensive security protocols, and intelligent traffic management, making it ideal for campus networks, office buildings, and growing businesses requiring reliable, scalable connectivity with integrated power delivery.
