| PN | 02352SVD |
|---|---|
| Model | S5731-H48P4XC |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0mm |
| Wide [mm] | 442.0mm |
| Chassis height [U] | 1 |
| Memory (RAM) | 4 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the?display version command. |
| Mean time between failures (MTBF) | 54.96 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ??6 kV |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??2 kV in differential mode, ??4 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Weight (with packaging) | 8.8 kg (19.40 lb) |
| Stack ports | 10GE SFP+ ports on the front panel, or ports on the rear card |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | Not providing the PoE function: 132 W (without card), 100% PoE loads: 1750 W (PoE: 1440 W, without card) |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 108 W (without card) |
| Operating temperature | -5??C to +45??C (23??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0??C (32??F). |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 62.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

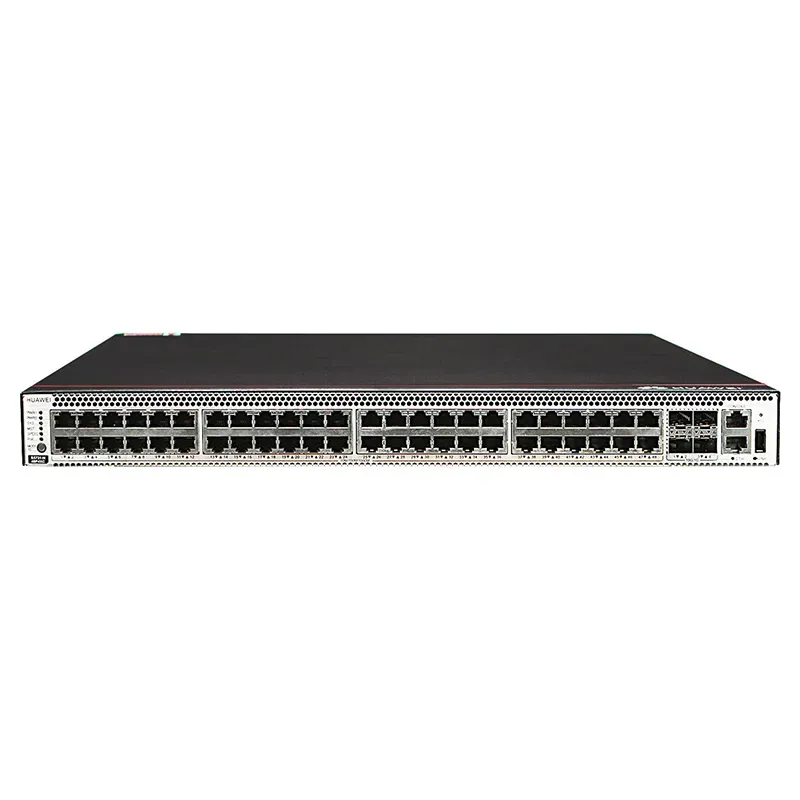

Huawei S5731-H48P4XC (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 1*expansion slot, PoE+, without power module)
The Huawei S5731-H48P4XC is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports with Power over Ethernet (PoE+) capability, 4 dedicated 10GE SFP+ uplink ports, and one expansion slot for future scalability. This versatile switch provides up to 370W PoE+ power budget to support IP phones, wireless access points, and IoT devices while eliminating the need for separate power supplies. Key advantages include flexible deployment options with modular power design, high-density port configuration ideal for access layer implementations, advanced Layer 2/3 switching capabilities, and comprehensive network management features. The switch offers exceptional value for organizations seeking reliable, scalable network infrastructure with integrated power delivery, reduced cable complexity, and future-proof expansion capabilities through its modular design and 10GE uplinks.
