| Brand | Huawei |
|---|---|
| Model | S5731-H24P4XC |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 17.7" |
| Flash | 1GB |
| PN | 02352QPV |
| Availability | >0.99999 |
| RTC | Supported |
| Memory | 4GB |
| Wide [mm] | 442.0mm |
| Height [mm] | 43.6mm |
| Power supply surge protection | Using AC power modules: 6 kV" differential mode, 6 kV" common mode, Using DC power modules: 2 kV" differential mode, 4 kV" common mode |
| RPS | Not supported |
| Rated voltage range | AC"put: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz, High-Voltage DC"put: 240 V DC, DC"put: -48 V DC to -60 V DC |
| Maximum voltage range | AC"put: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC"put: 190 V DC to 290 V DC, DC"put: -38.4 V DC to -72 V DC |
| Operating temperature | -5C to +45C (23F to 113F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F). |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Stack ports | 10GE SFP+ ports on the front panel, or ports on the rear card |
| Noise under normal temperature (27C, sound power) | < 62.3 dB(A) |
| Depth [mm] | 420.0mm |
| Maximum Power | NotprovidingthePoEfunction:121W(withoutcard), 100%PoEloads:977W(PoE:720W, withoutcard) |
| Weight (with packaging) | 8.6 kg (18.96 lb) |

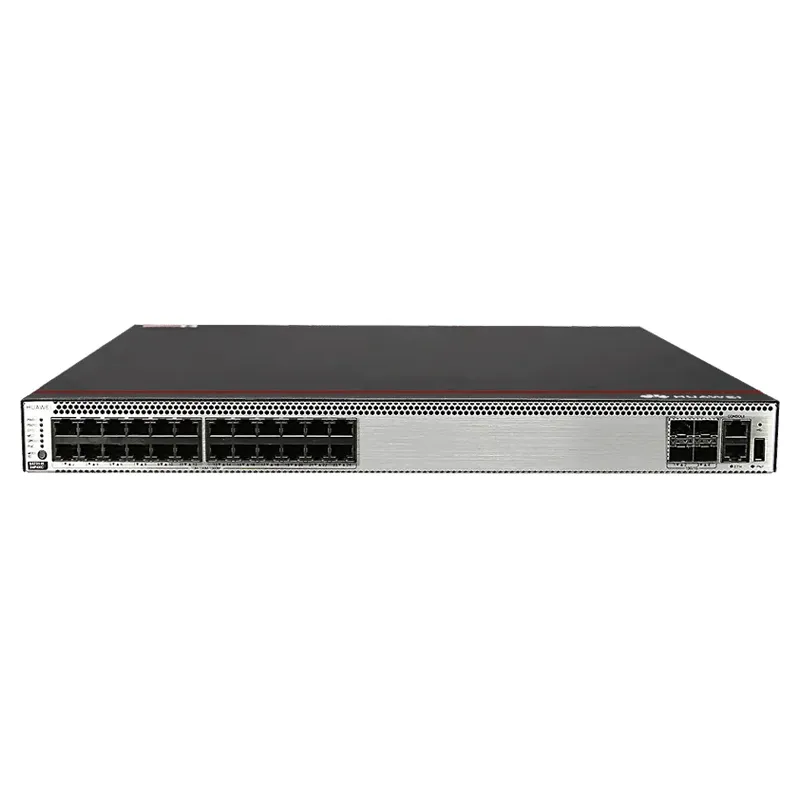

Huawei S5731-H24P4XC (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 1*expansion slot, PoE+, without power module)
The Huawei S5731-H24P4XC is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports with PoE+ capability and 4 dedicated 10GE SFP+ uplink ports for superior network backbone connectivity. This versatile switch features modular design with an expansion slot for future scalability, supports advanced Layer 2/3 switching protocols, and provides comprehensive network security features including ACLs and port security. Key benefits include simplified network management through Huawei’s eSight platform, energy-efficient operation, robust QoS capabilities for traffic prioritization, and flexible deployment options for campus networks, data centers, and enterprise environments. The PoE+ functionality eliminates the need for separate power infrastructure for connected devices like IP phones, wireless access points, and security cameras, while the 10GE uplinks ensure high-bandwidth aggregation and eliminate network bottlenecks. Its fanless design enables quiet operation in office environments, making it ideal for organizations seeking reliable, scalable, and cost-effective network infrastructure.
