| Brand | Huawei |
|---|---|
| Model | S5720-52X-SI-AC |
| Products Status | New |
| Dimensions | 1.75" x 17.4" x 17.79" |
| Flash | 512MB |
| PN | 02350DLV |
| Availability | >0.99999 |
| RTC | Supported |
| Memory | 512MB |
| Wide [mm] | 442.0mm |
| Height [mm] | 44.4mm |
| Power supply surge protection | Using AC power modules: 6 kV" differential mode, 6 kV" common mode, Using DC power modules: 1 kV" differential mode, 2 kV" common mode |
| RPS | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz, -48 V DC to -60 V DC |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz, -36 V DC to -72 V DC |
| Operating temperature | 0C to 45C (32F to 113F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.), DC power modules configured: 0-2000 m (0-6562 ft.) |
| Stack ports | GE electrical ports and 10GE SFP+ optical ports on the front panel |
| Noise under normal temperature (27C, sound power) | < 52 dB(A) |
| Depth [mm] | 424.7mm |
| Maximum Power | 56.8W |
| Weight (with packaging) | 9.5 kg (20.95 lb) |
| Short-term operating temperature | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude"creases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 45C (113F) consecutively for at most 96 hours" one year. The equipment operates at a temperature of over 45C (113F) for a total of no more than 360 hours" one year. The equipment operates at a temperature of over 45C (113F) for no more" 15 times" one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0C (32F). The maximum distance of optical modules used" these conditions cannot exceed 10 km. |
* NOTE: Image may not exactly match the product

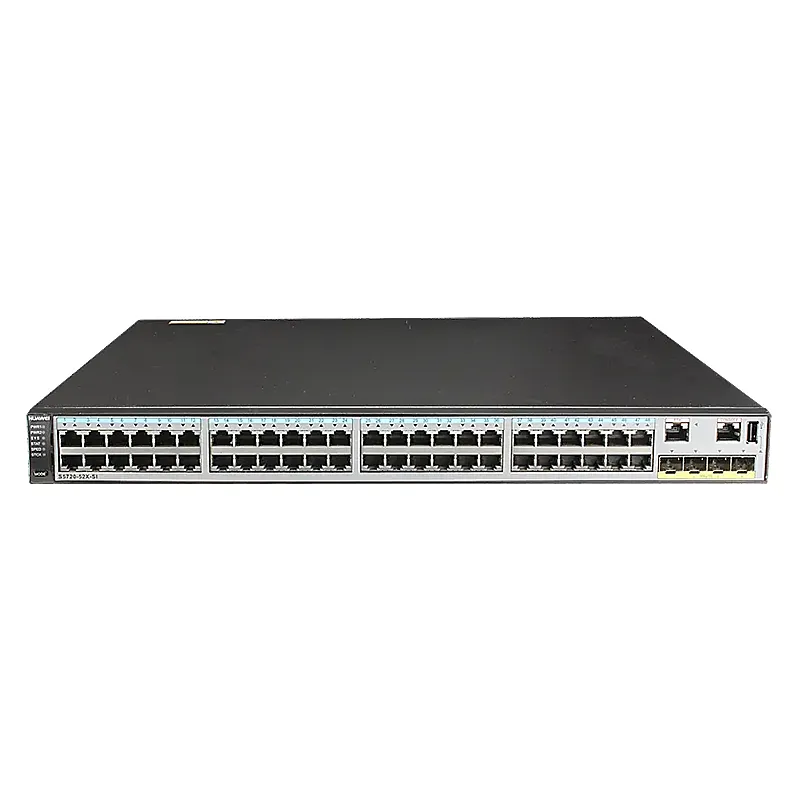

Huawei S5720-52X-SI-AC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,with 150W AC power supply)
The Huawei S5720-52X-SI-AC is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports and 4 10-Gigabit SFP+ uplinks for superior network connectivity. This rack-mountable switch features advanced Layer 2/3 switching capabilities, comprehensive security protocols, and energy-efficient design with a 150W AC power supply. Key benefits include exceptional port density for growing networks, future-proof 10G uplinks for high-bandwidth applications, robust QoS for traffic prioritization, and simplified management through Huawei’s eSight platform. The switch supports VLAN segmentation, link aggregation, and redundancy protocols, making it ideal for medium to large enterprises requiring reliable, scalable network infrastructure with minimal power consumption and maximum uptime.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Huawei |
|---|---|
| Model | S5720-52X-SI-AC |
| Products Status | New |
| Dimensions | 1.75" x 17.4" x 17.79" |
| Flash | 512MB |
