| PN | 98010814 |
|---|---|
| Model | S5720-52X-SI-48S |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Memory (RAM) | 512 MB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 35.23 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | >0.99999 |
| Service port surge protection | Common mode: ??7 kV |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??1 kV in differential mode, ??2 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.9 mm (1.75 in. x 17.4 in. x 16.73 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.) |
| Weight (with packaging) | 8.05 kg (17.75 lb) |
| Stack ports | GE optical ports and 10GE SFP+ optical ports except combo ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz, -48 V DC to -60 V DC |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz, -36 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 85 W |
| Typical power consumption (30% of traffic load) ??Tested according to ATIS standard ??EEE enabled ??No PoE power consumption | 65 W |
| Operating temperature | 0??C to 45??C (32??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 49 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.), DC power modules configured: 0-2000 m (0-6562 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

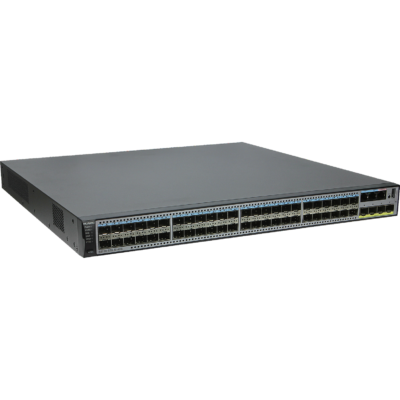

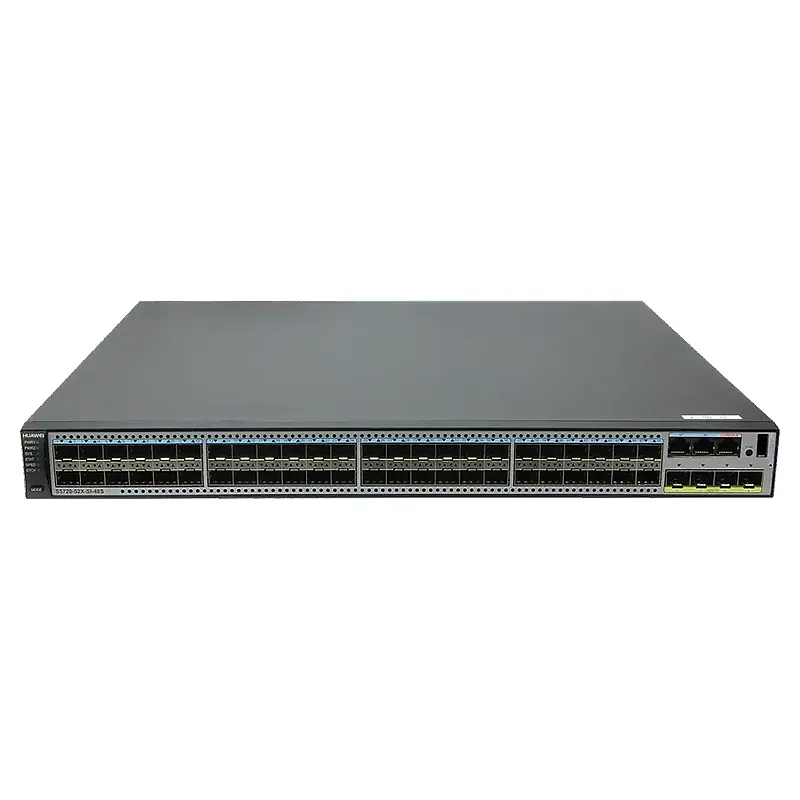

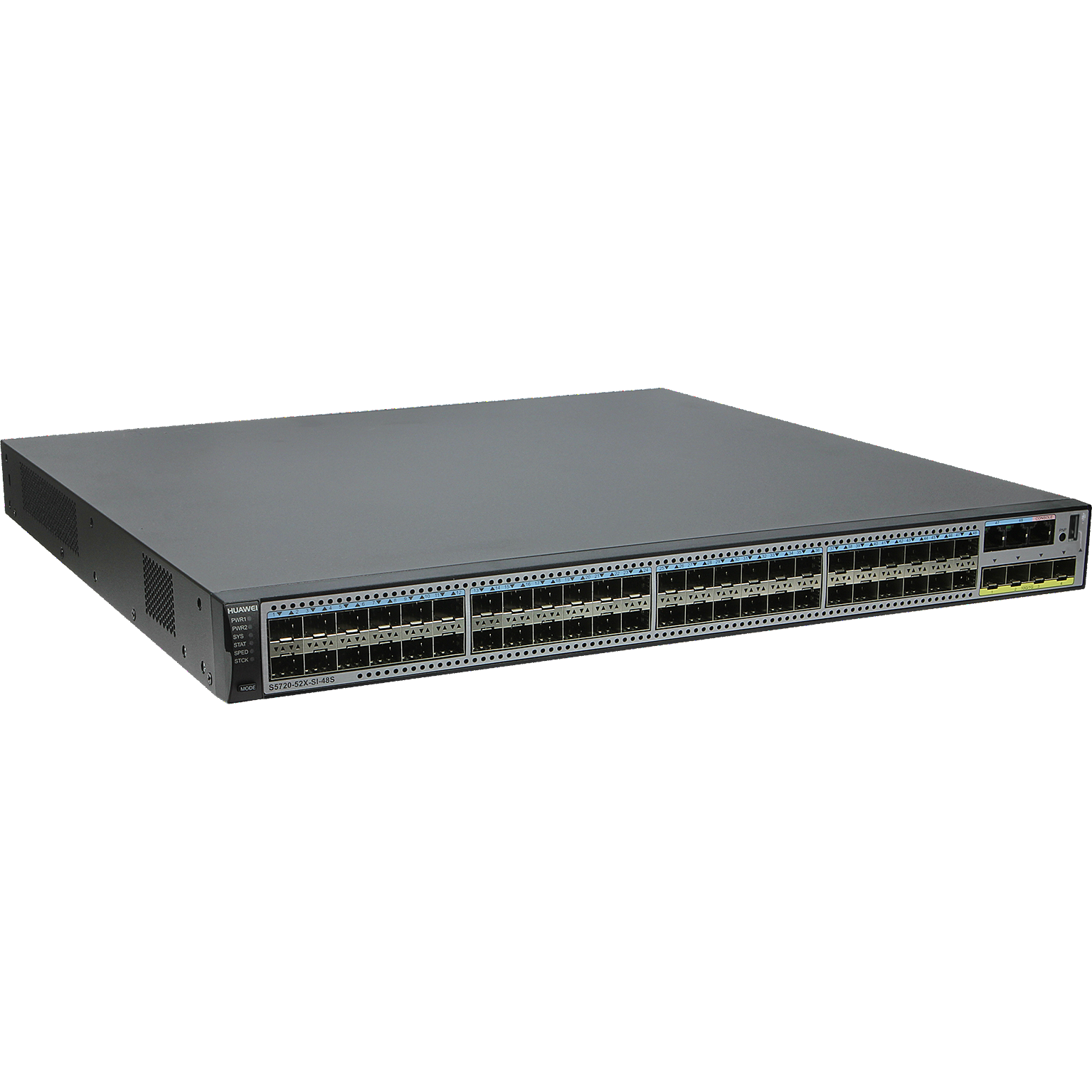

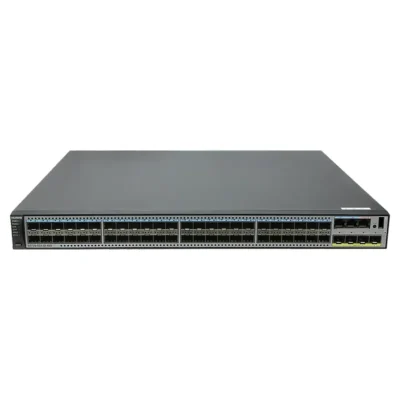

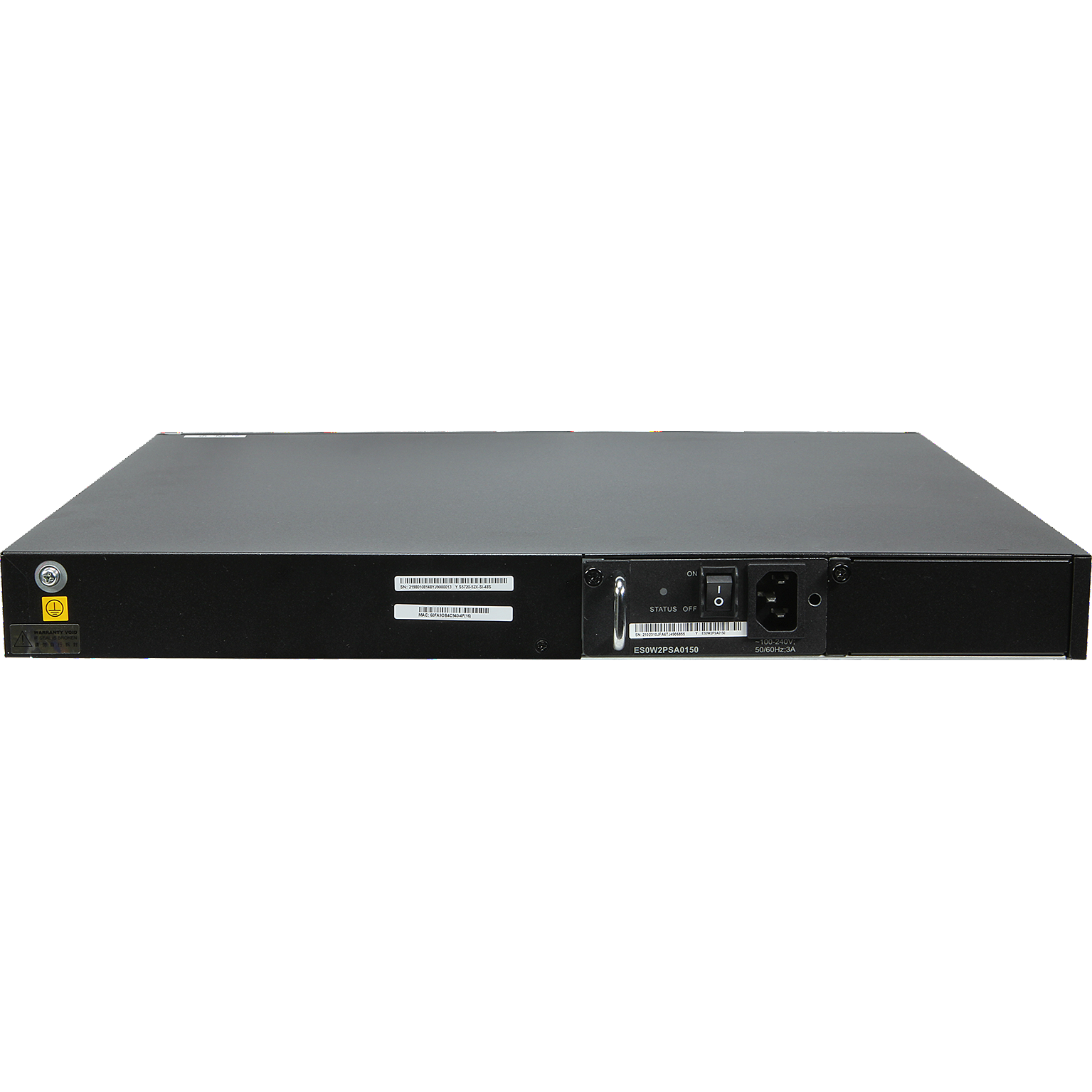

Huawei S5720-52X-SI-48S (switch with 46-port 1000BASE-X, 2-port 1000BASE-X & 1000BASE-T combo, 4-port 10GE SFP+)
The Huawei S5720-52X-SI-48S is a high-performance enterprise switch featuring 48 SFP ports for 1000BASE-X fiber connectivity and 4 additional 10GE SFP+ uplink ports. This Layer 3 switch delivers robust network performance with 176 Gbps switching capacity and advanced features including VLAN support, QoS, security protocols, and energy-efficient design. Key benefits include flexible fiber deployment options, scalable 10G uplinks for backbone connectivity, comprehensive network management through web interface and SNMP, and reliable operation for medium to large enterprise networks requiring high-density gigabit fiber connectivity with future-ready 10G expansion capabilities.
Quote1 Piece(MOQ)
Premium Client Discounts Available
| PN | 98010814 |
|---|---|
| Model | S5720-52X-SI-48S |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
