| PN | 2359589 |
|---|---|
| Model | S5720-52X-EI-AC |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 73.12 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | >0.99999 |
| Service port surge protection | Common mode: ??6 kV |
| Power supply surge protection | ??6 kV in differential mode, ??6 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 237.3 mm (1.72 in. x 17.4 in. x 9.34 in.) |
| Weight (with packaging) | 4.7 kg (10.36 lb) |
| Stack ports | Two fixed QSFP+ stack ports on the rear card |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | 61.5 W |
| Typical power consumption (30% of traffic load) ??Tested according to ATIS standard ??EEE enabled ??No PoE power consumption | 52.25 W |
| Operating temperature | 0??C to 45??C (32??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 49.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

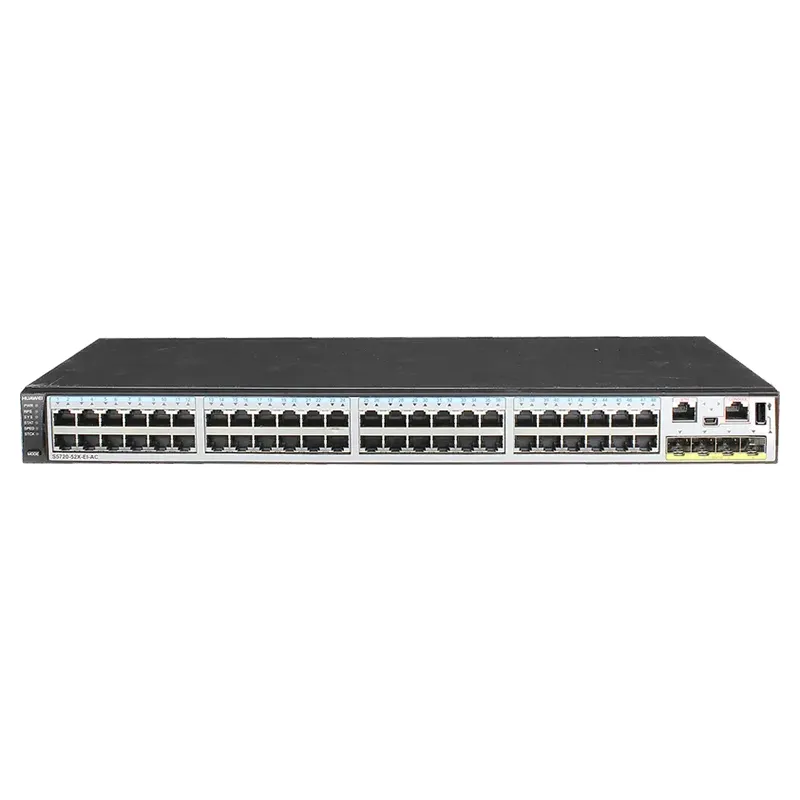

Huawei S5720-52X-EI-AC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,AC 110/220V)
The Huawei S5720-52X-EI-AC is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports and 4 10-Gigabit SFP+ uplinks for demanding network environments. This rack-mountable switch supports dual AC power (110/220V) for global deployment flexibility. Key features include advanced Layer 3 routing capabilities, comprehensive security protocols, energy-efficient design, and Huawei’s intelligent stack technology for simplified management. The switch offers exceptional port density, reliable performance for data centers and campus networks, hot-swappable components for minimal downtime, and comprehensive QoS controls for traffic prioritization. Its unique selling points include Huawei’s proven networking expertise, cost-effective 10G connectivity, robust hardware design with lifetime warranty, and seamless integration with existing Huawei network infrastructure, making it ideal for organizations requiring scalable, high-bandwidth connectivity.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| PN | 2359589 |
|---|---|
| Model | S5720-52X-EI-AC |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
