| PN | 02350BDY |
|---|---|
| Model | S5720-32P-EI-AC |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 224.9mm |
| Wide [mm] | 442.0mm |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the?display version?command. |
| Mean time between failures (MTBF) | 80.32 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ??6 kV |
| Power supply surge protection | ??6 kV in differential mode, ??6 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 237.3 mm (1.72 in. x 17.4 in. x 9.34 in.) |
| Weight (with packaging) | 4.5 kg (9.92 lb) |
| Stack ports | Two fixed QSFP+ stack ports on the rear card |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | 50.7 W |
| Typical power consumption (30% of traffic load) ??Tested according to ATIS standard ??EEE enabled ??No PoE power consumption | 39.75 W |
| Operating temperature | 0??C to 45??C (32??F to 113??F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 49.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

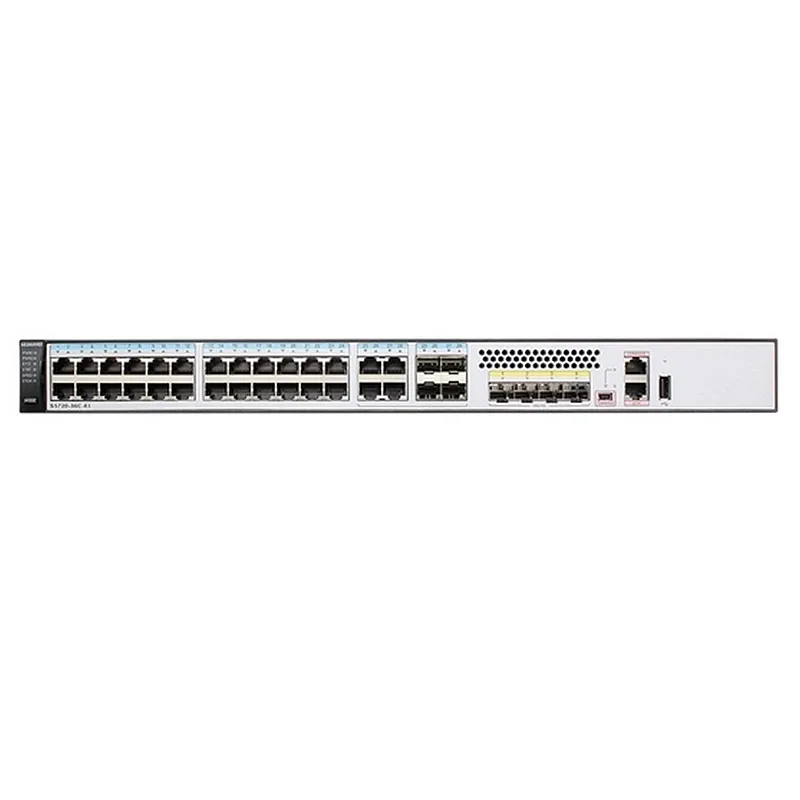

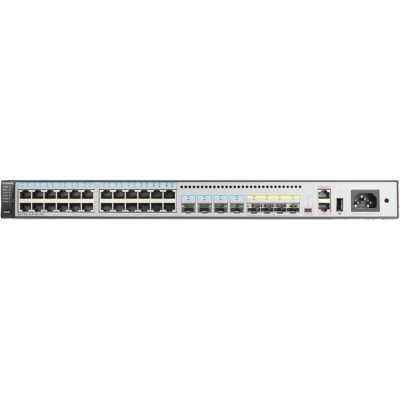

Huawei S5720-32P-EI-AC(24 Ethernet 10/100/1000 ports,8 Gig SFP,AC 110/220V,front access)
The Huawei S5720-32P-EI-AC is a high-performance enterprise switch delivering robust network connectivity with 24 Gigabit Ethernet ports and 8 SFP slots for fiber uplinks. This energy-efficient switch supports dual AC power (110/220V) and features front-panel access for simplified maintenance in rack environments. Key benefits include advanced Layer 3 routing capabilities, comprehensive security features, and intelligent traffic management for optimized network performance. Its stackable design enables seamless network expansion while maintaining centralized management. Ideal for medium to large enterprises requiring reliable, scalable networking infrastructure with enterprise-grade features at competitive pricing.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| PN | 02350BDY |
|---|---|
| Model | S5720-32P-EI-AC |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
