| PN | 98010639 |
|---|---|
| Model | S5720-28TP-LI-AC |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Memory (RAM) | 512 MB |
| Flash | 240 MB |
| Mean time between failures (MTBF) | 43 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | >0.99999 |
| Service port surge protection | Common mode: ??7 kV |
| Power supply surge protection | ??6 kV in differential mode, ??6 kV in common mode |
| Dimensions (W x D x H) | 442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.) |
| Weight (including packaging materials) | 2.9 kg (6.39 lb) |
| Stack ports | Twenty-four 10/100/1000BASE-T ports and two 1000BASE-X ports |
| RTC | Not supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput) | 22.1 W |
| Typical power consumption (30% of traffic load) ??Tested according to ATIS standard ??EEE enabled ??No PoE power consumption | 16.2 W |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | Noise-free (no fans) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
* NOTE: Image may not exactly match the product

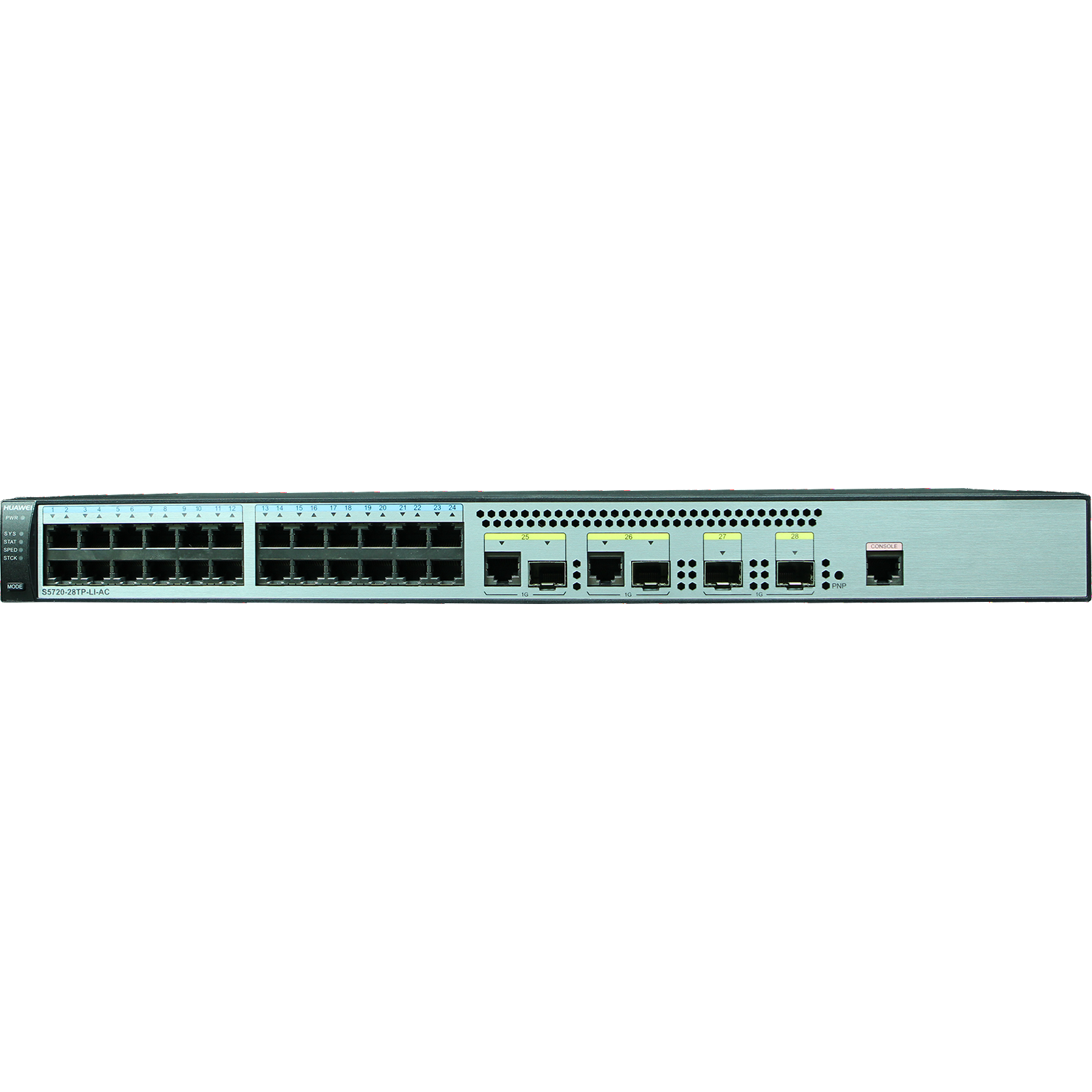

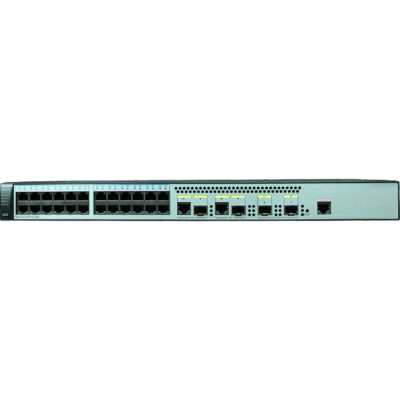

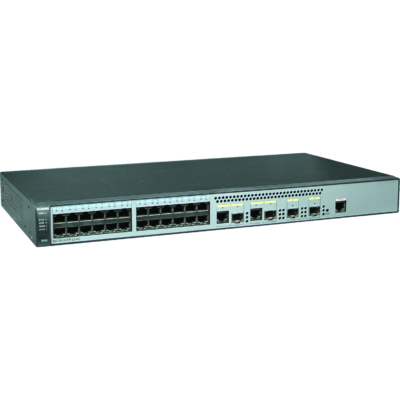

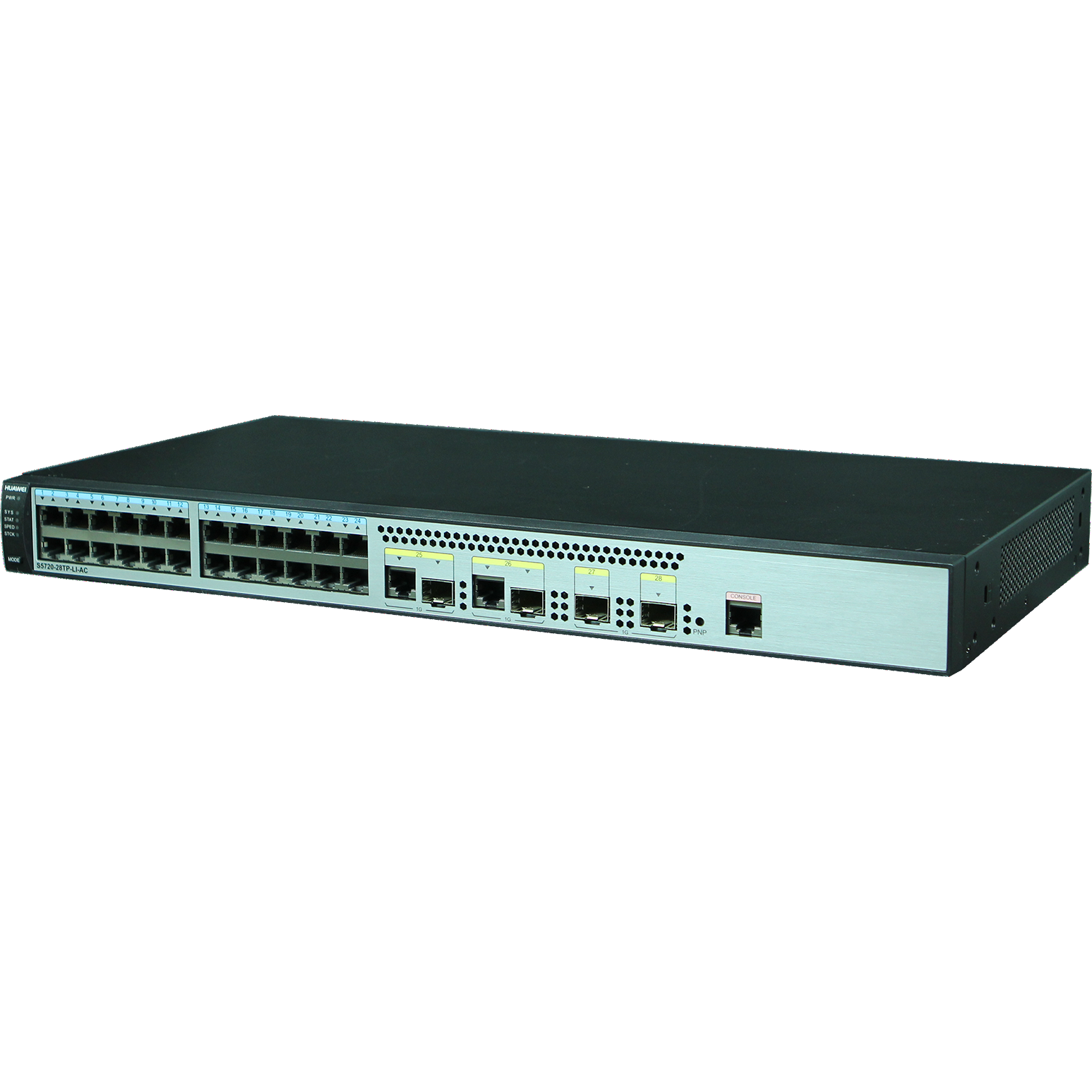

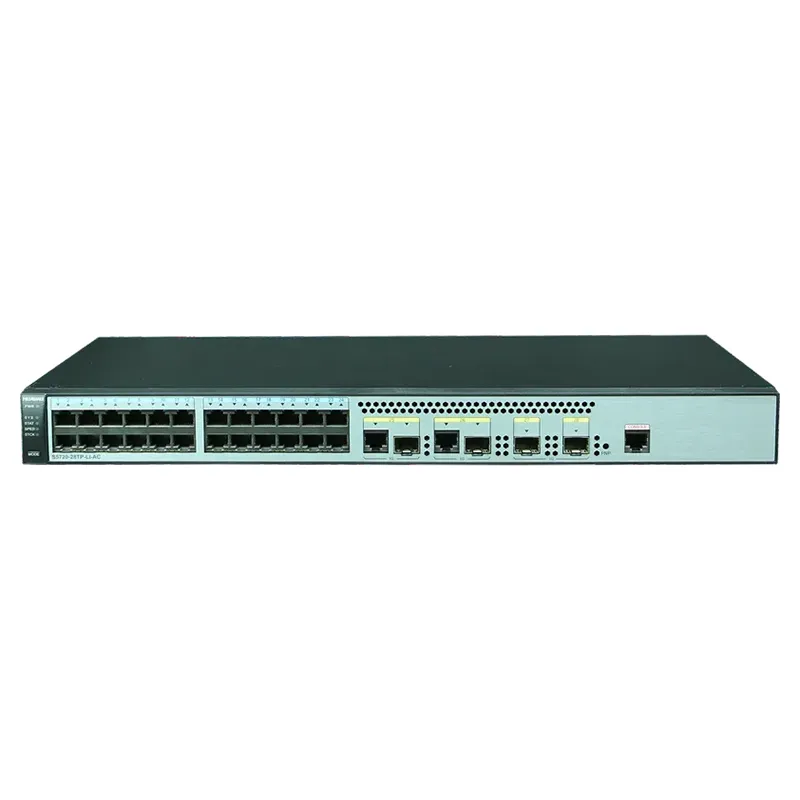

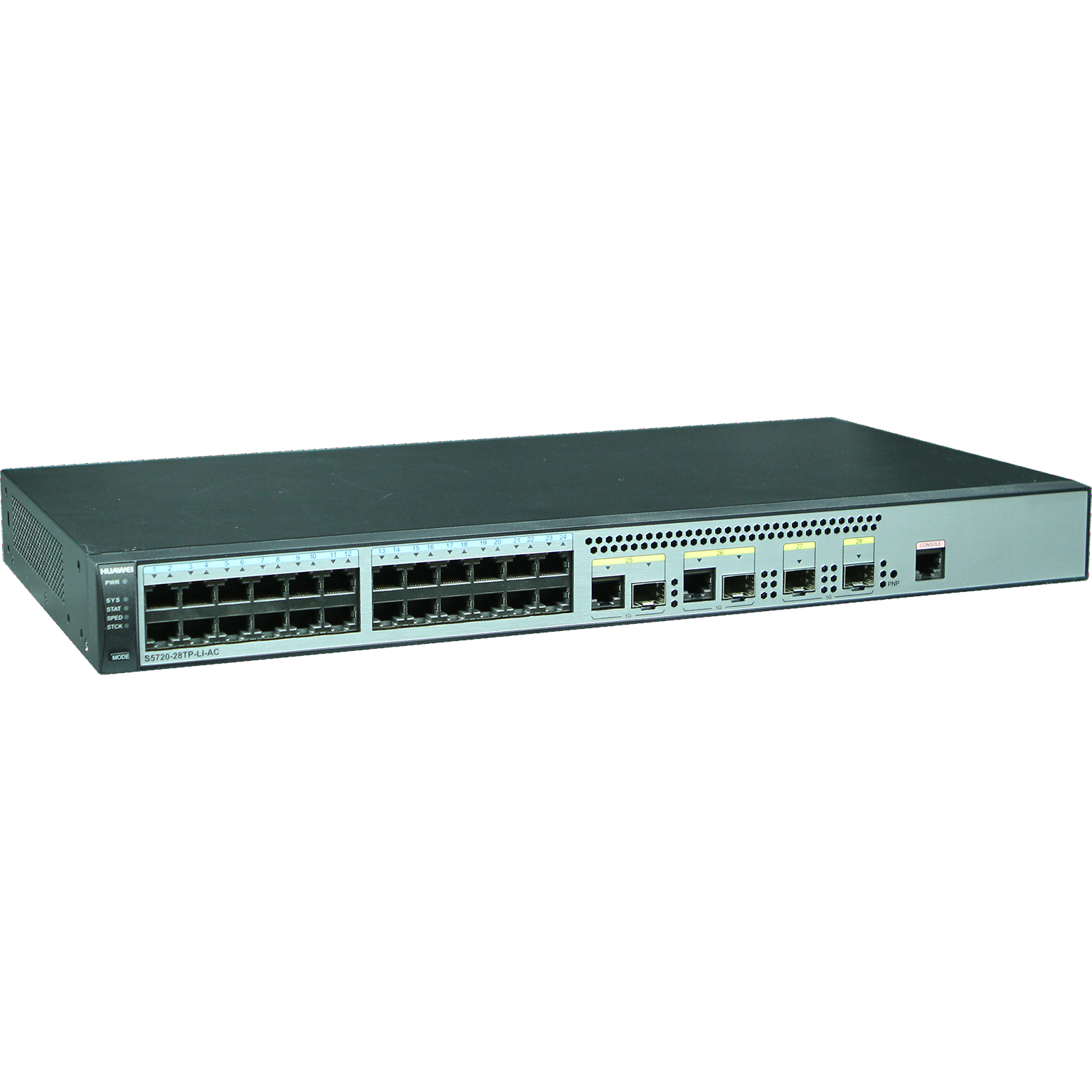

Huawei S5720-28TP-LI-AC(24 Ethernet 10/100/1000 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V)
The Huawei S5720-28TP-LI-AC is a versatile 28-port enterprise switch delivering robust network connectivity with 24 Gigabit Ethernet ports, 2 dedicated SFP slots, and 2 flexible dual-purpose ports supporting both copper and fiber connections. This energy-efficient switch operates on standard AC power (110/220V), making it ideal for small to medium businesses seeking reliable, high-performance networking infrastructure. Key advantages include flexible port configuration for mixed media environments, enterprise-grade reliability from Huawei’s proven switching technology, simplified deployment with plug-and-play functionality, and cost-effective scalability for growing network demands. The dual-purpose ports provide exceptional flexibility for uplink connections, while the compact design maximizes rack space efficiency.
