| PN | 2352356 |
|---|---|
| Model | S5700-52C-SI |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0mm |
| Wide [mm] | 442.0mm |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| Mean time between failures (MTBF) | 51.3 years when a 2-port 10GE interface card is configured, 70.3 years when a 4-port GE front card is configured, 28.58 years when a 4x10GE front card is configured |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ??2 kV |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??1 kV in differential mode, ??2 kV in common mode |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Weight | Empty: ?? 5 kg (11.02 lb), Fully configured: ?? 8.5 kg (18.74 lb) |
| Stack ports | Two stack ports available on each stack card |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz, -48 V DC to -60 V DC |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz, -36 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 78 W |
| Operating temperature | 0??C to 50??C (32??F to 122??F) |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 41 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.), DC power modules configured: 0-2000 m (0-6562 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

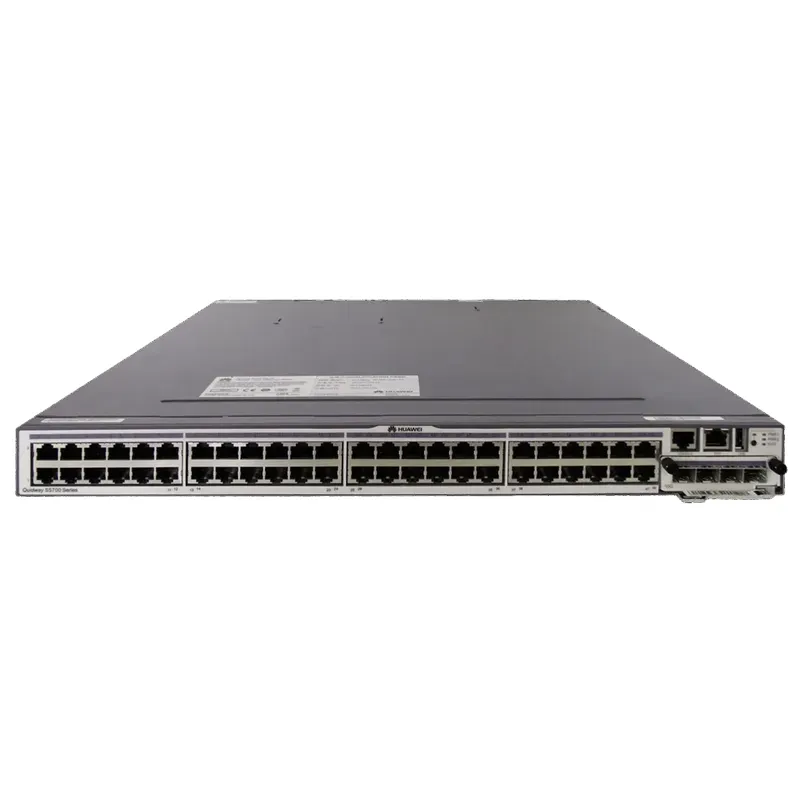

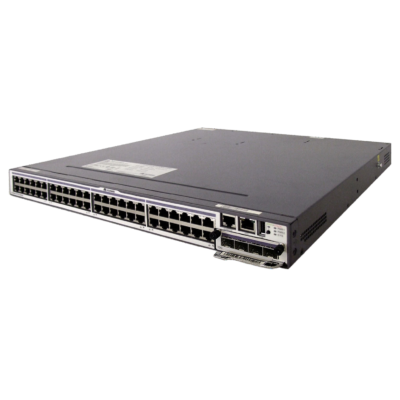

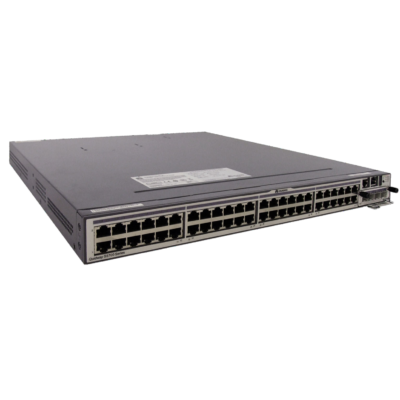

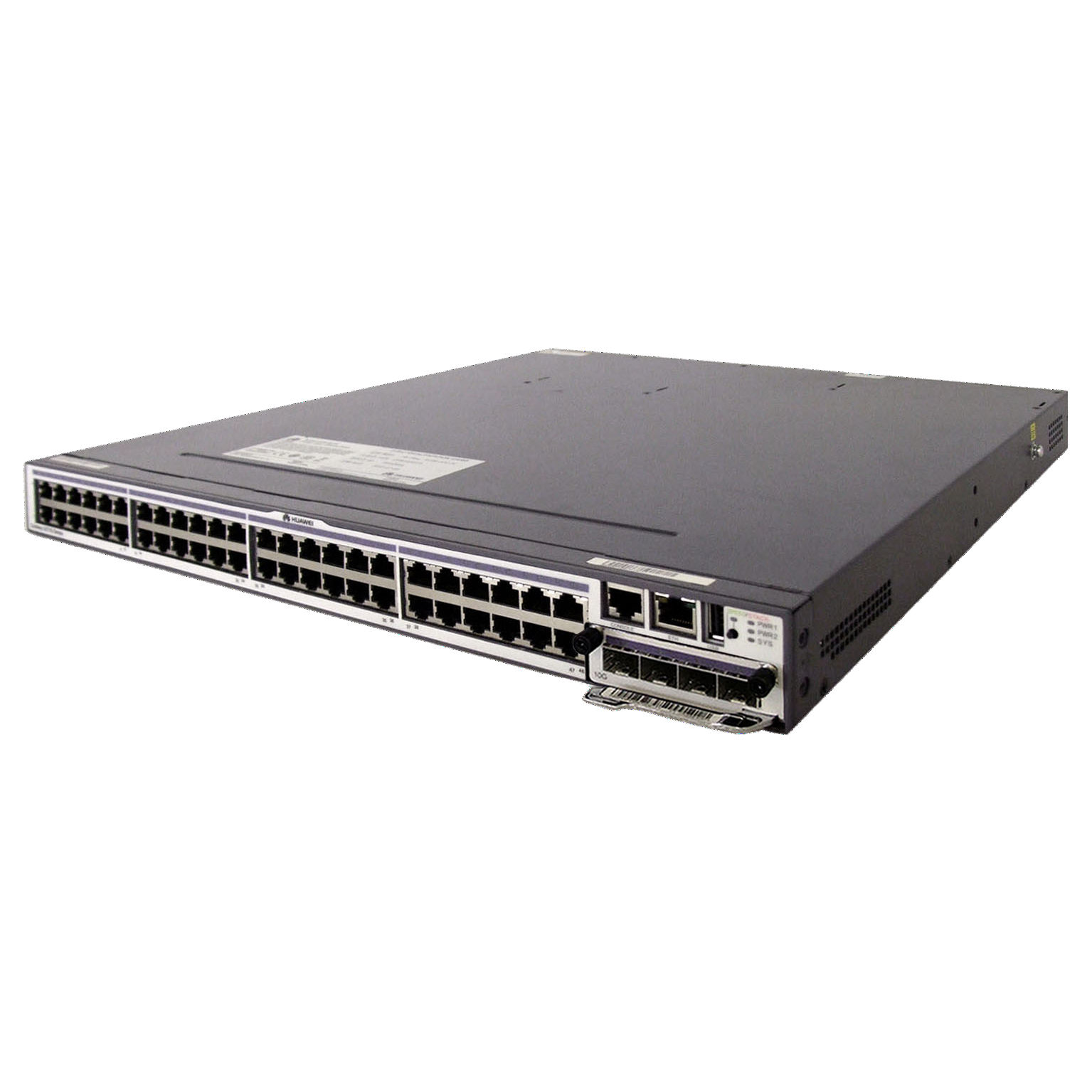

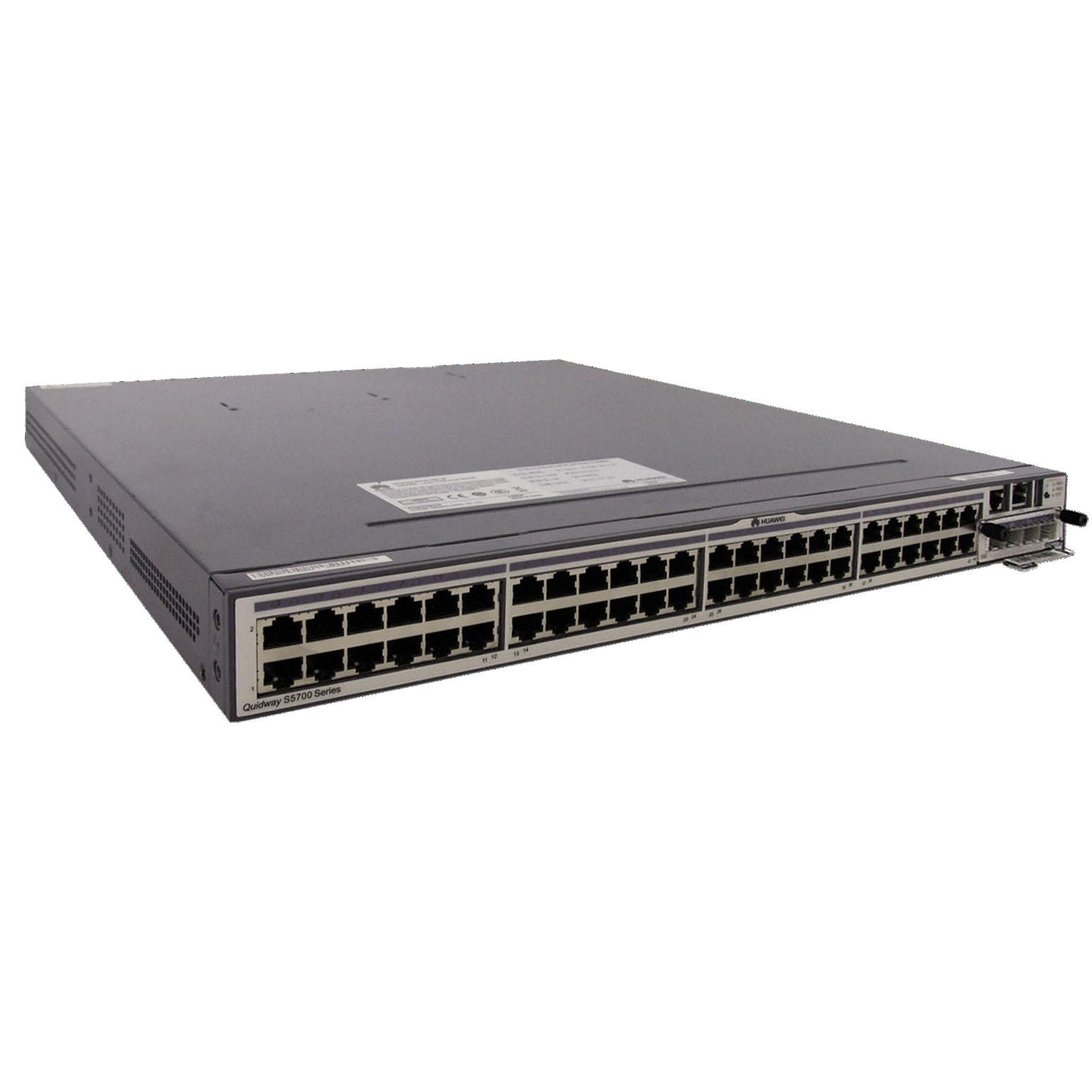

Huawei S5700-52C-SI(48 Ethernet 10/100/1000 ports, with 1 interface slot, without power module, 2 extension slots)
The Huawei S5700-52C-SI is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports for robust network connectivity. This stackable switch features advanced Layer 2/3 switching capabilities, comprehensive security protocols, and energy-efficient design. Key advantages include flexible expansion through one interface slot and two extension slots, modular power options for redundancy, and intelligent traffic management. The switch supports advanced features like VLAN, QoS, and network virtualization, making it ideal for medium to large enterprises requiring reliable, scalable network infrastructure. Its fanless design ensures quiet operation while delivering wire-speed performance and enterprise-grade reliability for mission-critical applications.
