| PN | 2354135 |
|---|---|
| Model | S5700-52C-PWR-SI |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0mm |
| Wide [mm] | 442.0mm |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| Mean time between failures (MTBF) | 50.4 years when a 2-port 10GE interface card is configured, 68.6 years when a 4-port GE front card is configured, 35.58 years when a 4x10GE front card is configured |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ??1 kV |
| Power supply surge protection | ??2 kV in differential mode, ??4 kV in common mode |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Weight | Empty: ?? 5 kg (11.02 lb), Fully configured: ?? 8.5 kg (18.74 lb) |
| Stack port | Two stack ports available on each stack card |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, 100% PoE loads, full speed of fans) | 917 W (system power consumption: 177 W, PoE: 740 W) |
| Operating temperature | 0??C to 50??C (32??F to 122??F) |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 45 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

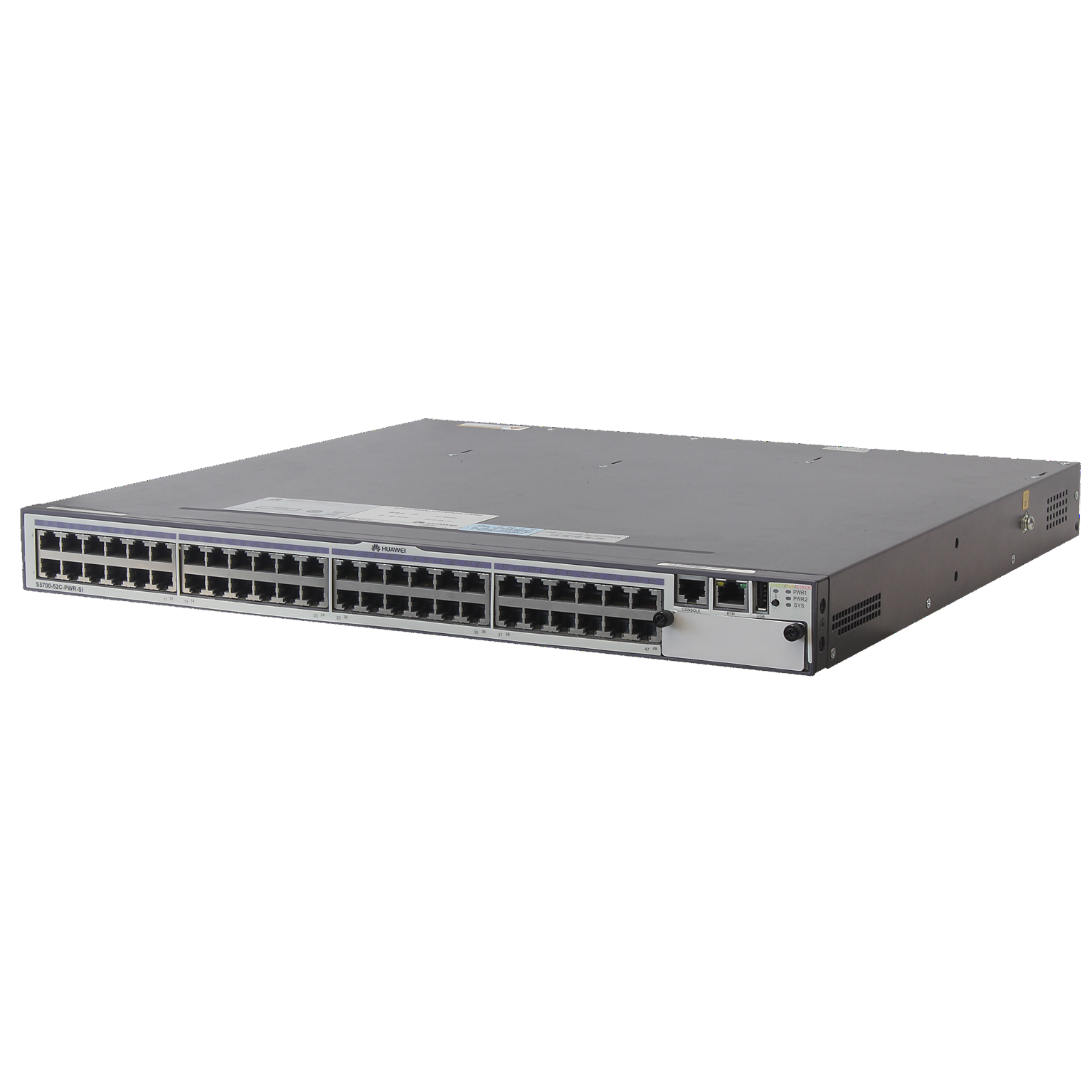

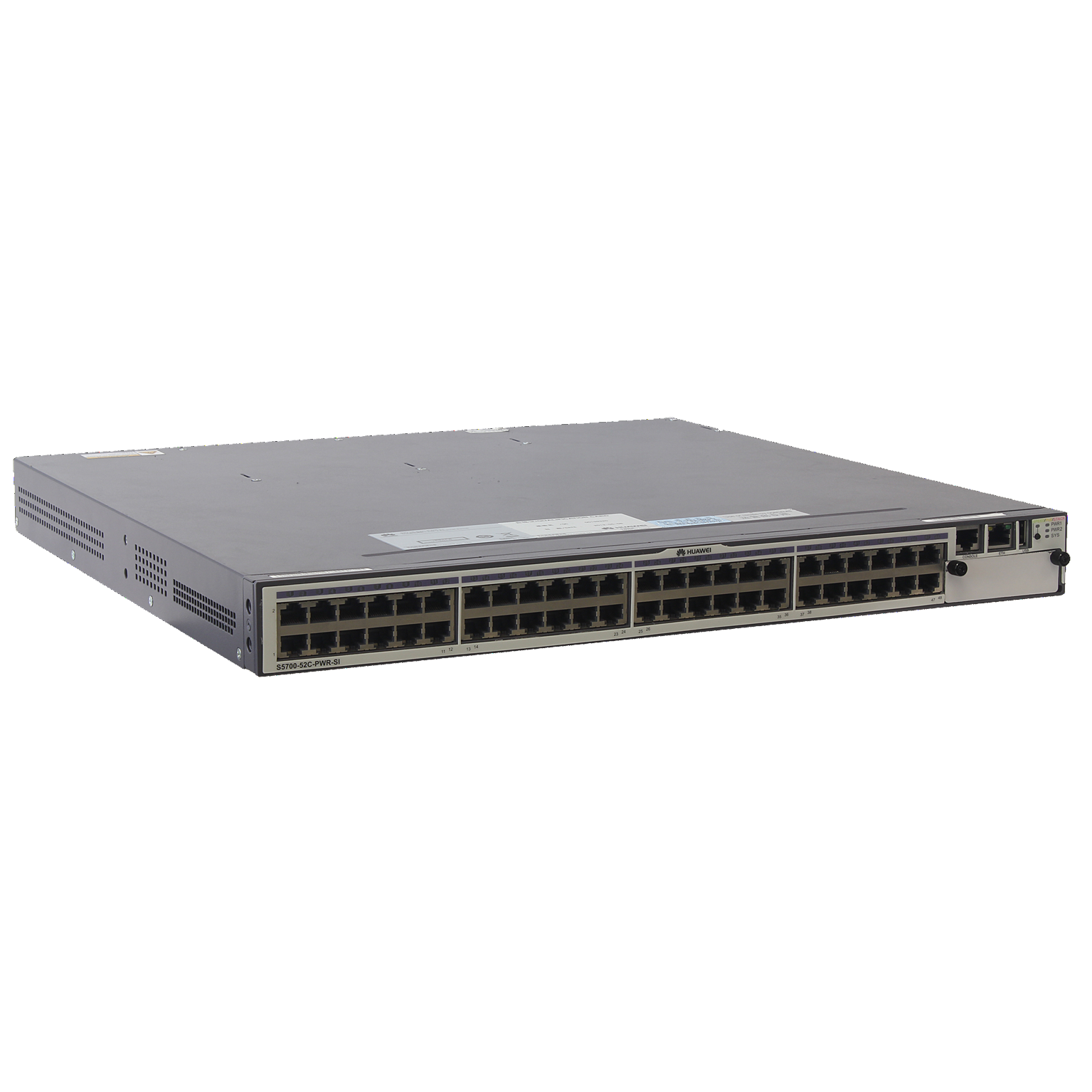

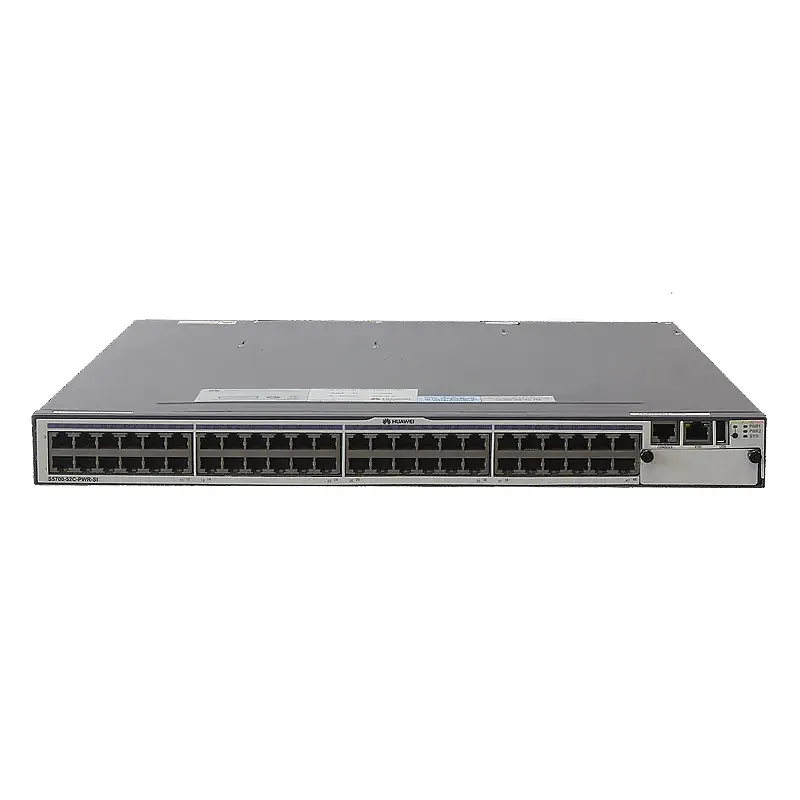

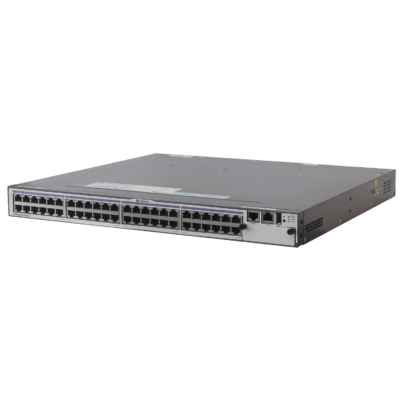

Huawei S5700-52C-PWR-SI(48 Ethernet 10/100/1000 PoE+ ports,with 1 interface slot,with 500W AC power supply)
The Huawei S5700-52C-PWR-SI is a high-performance enterprise switch delivering 48 Gigabit PoE ports with a robust 500W AC power supply. This versatile networking solution features one expansion interface slot for enhanced connectivity options, making it ideal for powering IP phones, wireless access points, and security cameras while maintaining high-speed data transmission. Key benefits include simplified network infrastructure through integrated PoE capability, reduced cabling costs, centralized power management, and scalable design for growing business needs. Its enterprise-grade reliability, energy-efficient operation, and comprehensive port density make it the optimal choice for medium to large organizations seeking a single-device solution for both data networking and device power requirements.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| PN | 2354135 |
|---|---|
| Model | S5700-52C-PWR-SI |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
