| PN | 2352354 |
|---|---|
| Model | S5700-52C-EI |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0mm |
| Wide [mm] | 442.0mm |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| Mean time between failures (MTBF) | 46.05 years when a 2-port 10GE interface card is configured, 57.08 years when a 4-port GE front card is configured, 25.58 years when a 4x10GE front card is configured |
| Mean time to repair (MTTR) | 2 years |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ??2 kV |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??1 kV in differential mode, ??2 kV in common mode |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Weight | Empty: ?? 5 kg (11.02 lb),Fully configured: ?? 8.5 kg (18.74 lb) |
| Stack ports | Two stack ports available on each stack card |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz, -48 V DC to -60 V DC |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz, -36 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 88 W |
| Operating temperature | 0??C to 50??C (32??F to 122??F) |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 41 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.), DC power modules configured: 0-2000 m (0-6562 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

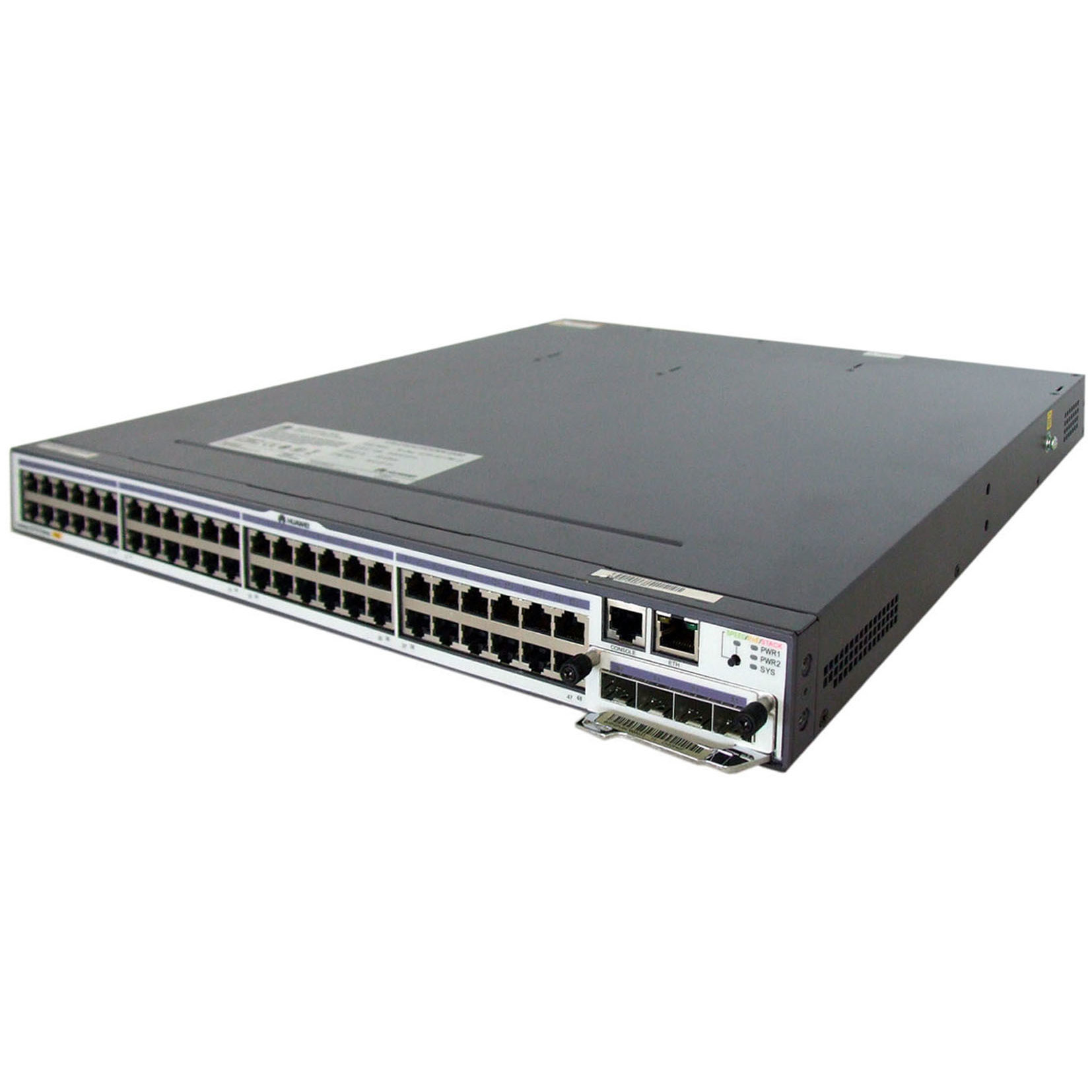

Huawei S5700-52C-EI(48 Ethernet 10/100/1000 ports, with 1 interface slot, without power module, 2 extension slots)
The Huawei S5700-52C-EI is a high-performance enterprise switch delivering 48 Gigabit Ethernet ports for robust network connectivity. Key features include advanced Layer 2/3 switching capabilities, comprehensive security protocols, and energy-efficient design. The modular architecture offers flexibility with one interface slot and two extension slots for future expansion. Benefits include simplified network management through intelligent stack technology, enhanced reliability with redundant power options, and cost-effective scalability for growing businesses. Unique selling points are its industry-leading forwarding performance, comprehensive Quality of Service (QoS) features, and Huawei’s proven enterprise networking expertise, making it ideal for medium to large enterprises requiring reliable, high-density Gigabit connectivity with room for growth.
Quote1 Piece(MOQ)
Premium Client Discounts Available
| PN | 2352354 |
|---|---|
| Model | S5700-52C-EI |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
Inquiry Now
Contact us for more discounts!
