| PN | 2352341 |
|---|---|
| Model | S5700-28C-SI |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0mm |
| Wide [mm] | 442.0mm |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| Mean time between failures (MTBF) | 53.7 years when a 2-port 10GE interface card is configured, 74.9 years when a 4-port GE front card is configured, 29.58 years when a 4-port 10GE front card is configured |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | ??2 kV in common mode |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??1 kV in differential mode, ??2 kV in common mode |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Weight | Empty: ?? 5 kg (11.02 lb), Fully configured: ?? 8.5 kg (18.74 lb) |
| Stack ports | Two stack ports available on each stack card |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz, -48 V DC to -60 V DC |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz, -36 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 56 W |
| Operating temperature | 0??C to 50??C (32??F to 122??F) |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 41 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.), DC power modules configured: 0-2000 m (0-6562 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

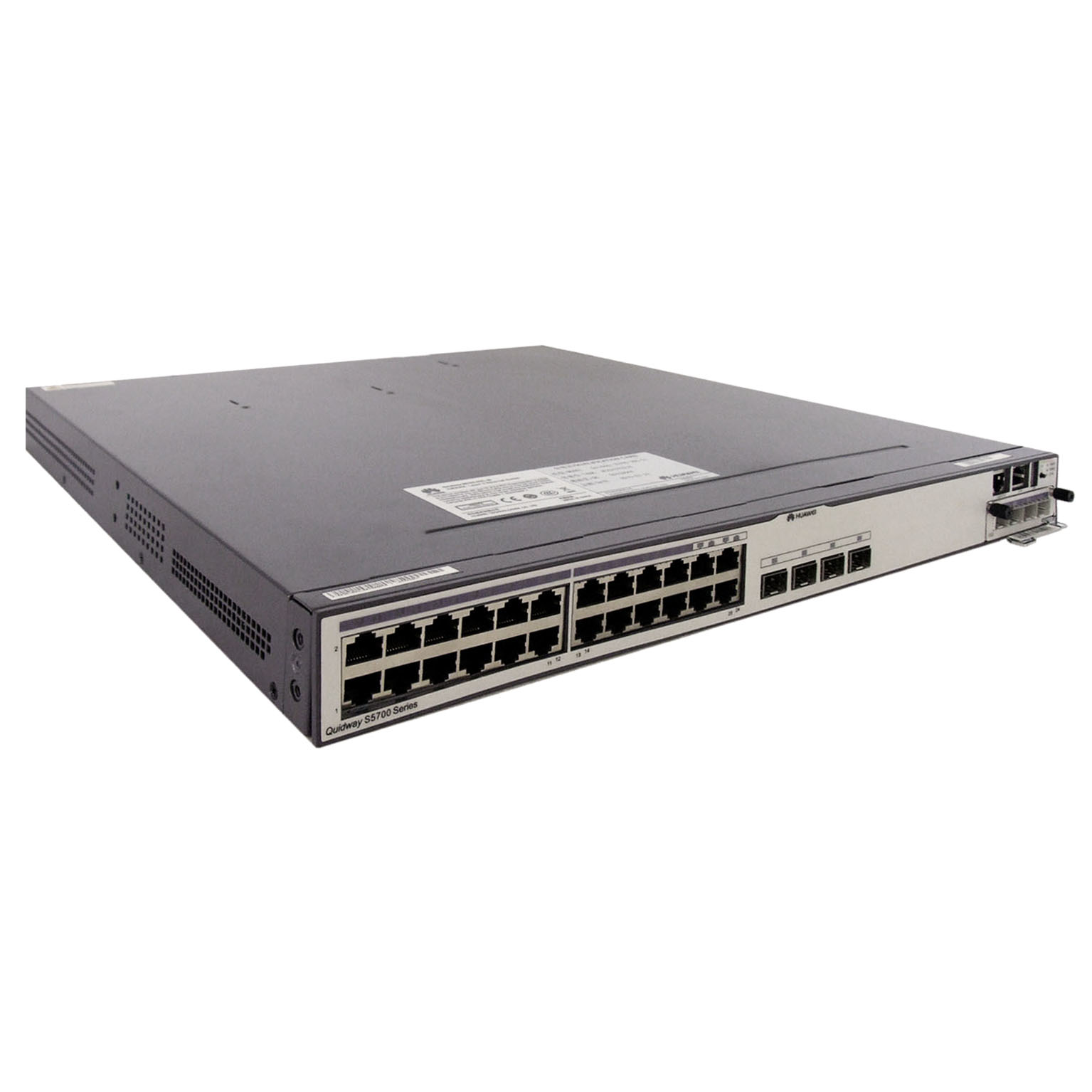

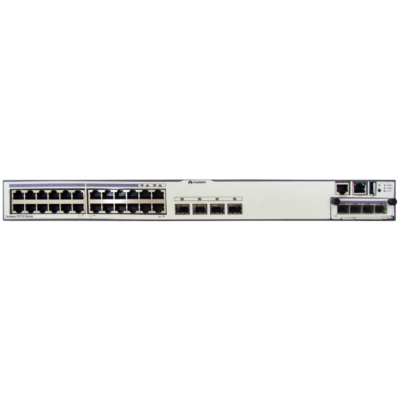

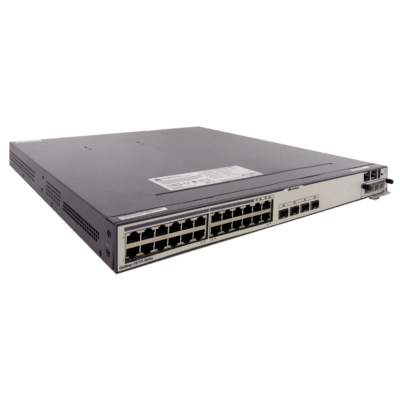

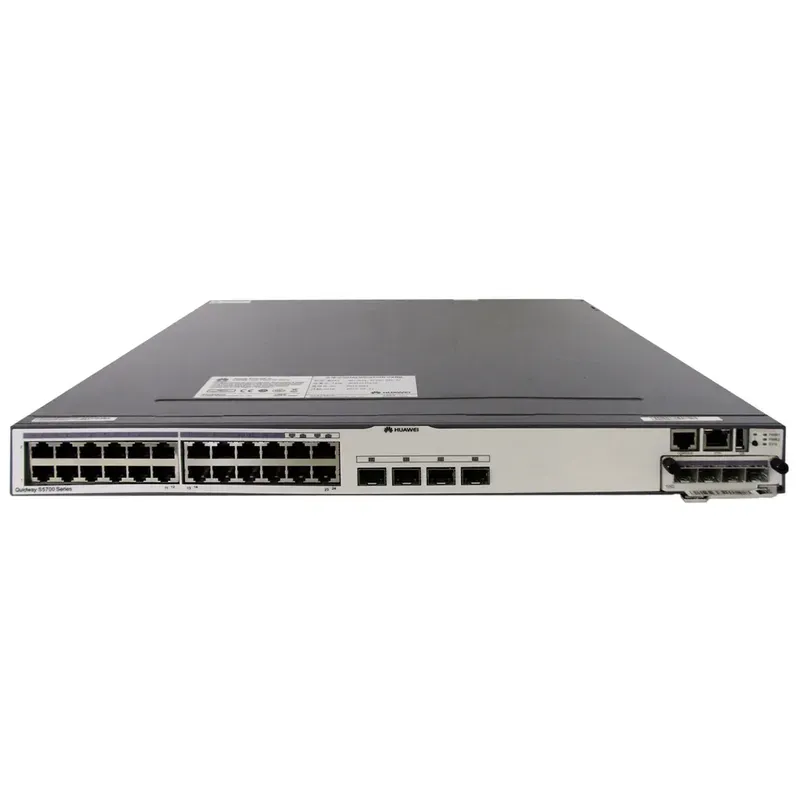

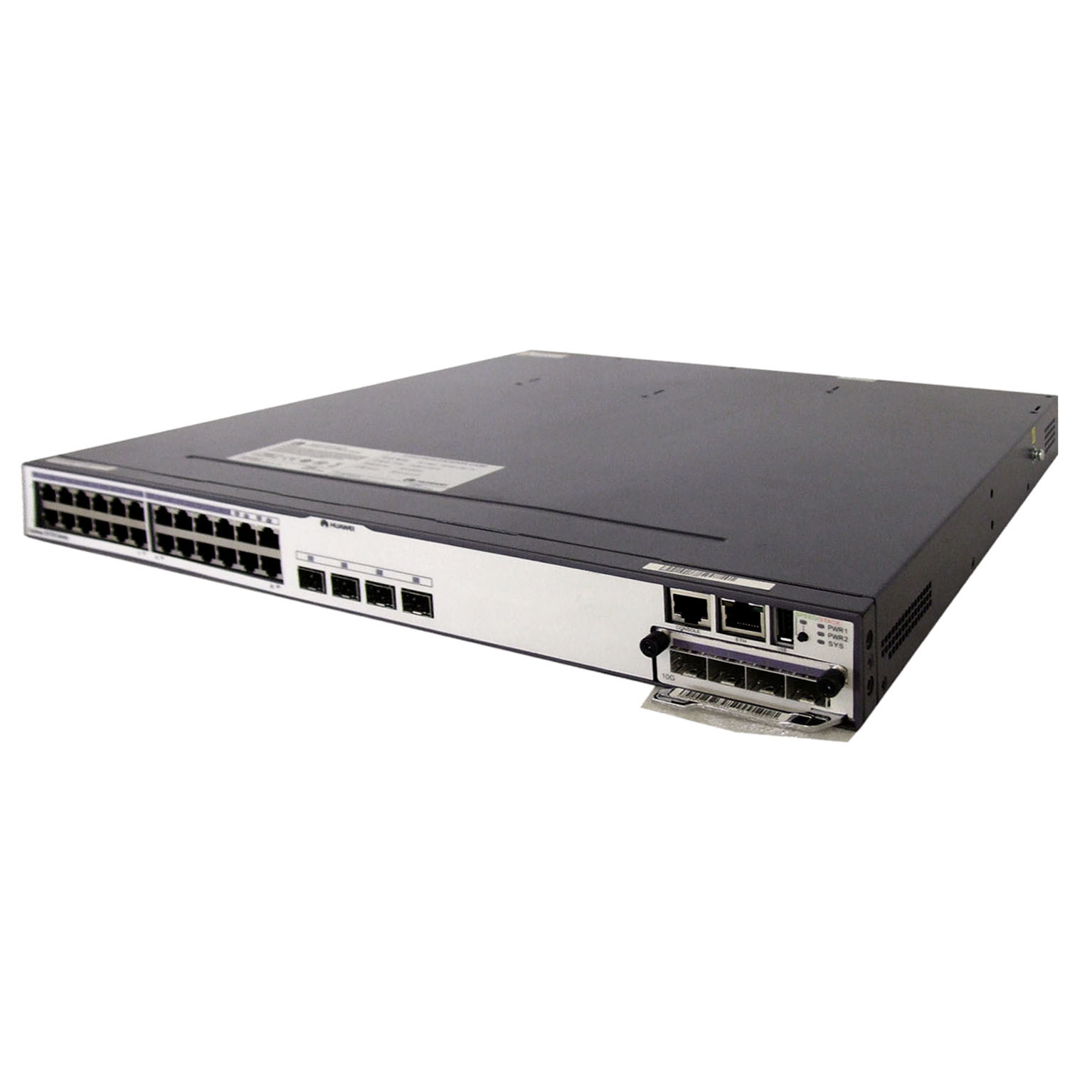

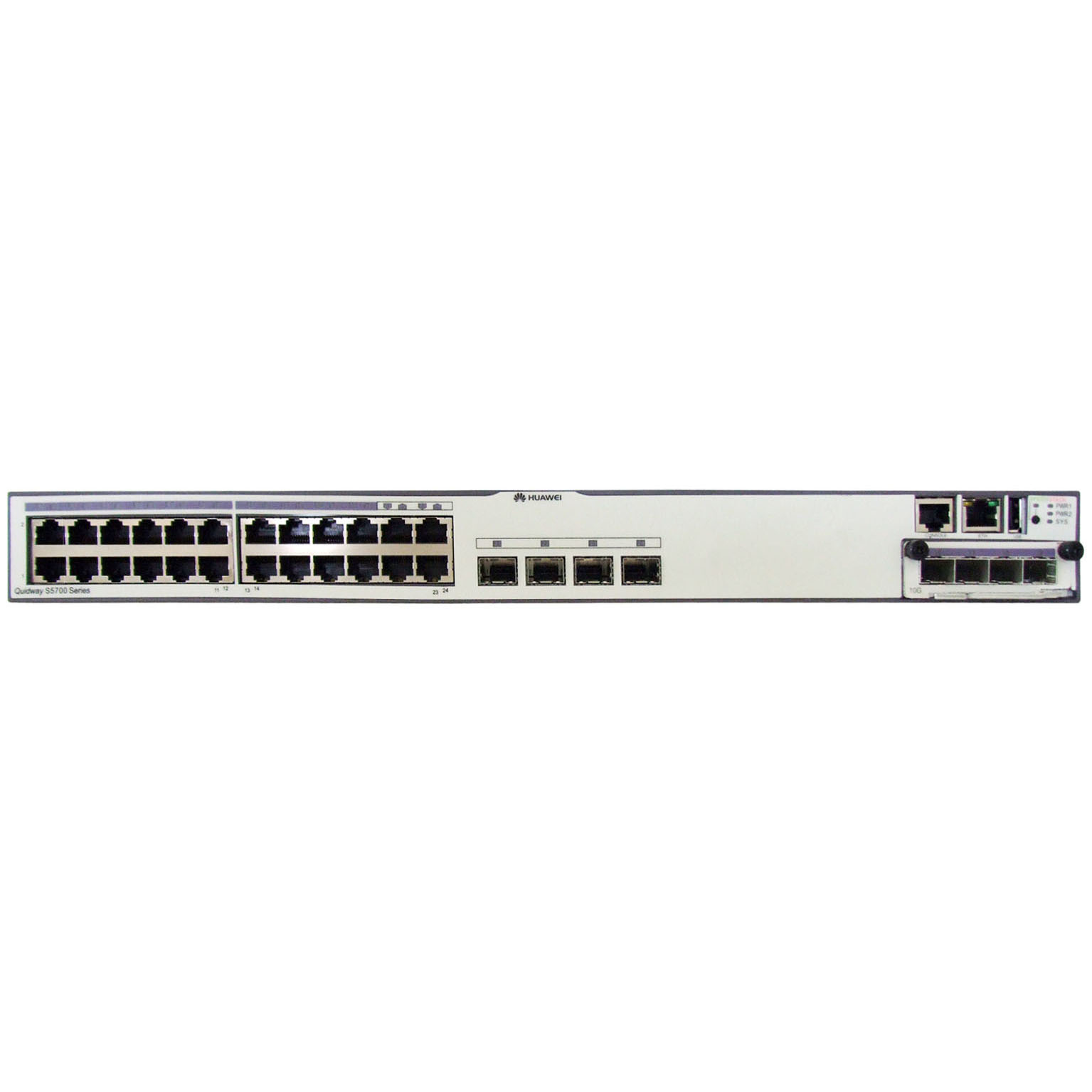

Huawei S5700-28C-SI(24 Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP)
The Huawei S5700-28C-SI is a high-performance enterprise switch delivering 24 Gigabit Ethernet PoE ports with 4 dual-purpose ports supporting both 10/100/1000 copper and SFP fiber connectivity. This versatile switch provides comprehensive Power over Ethernet capabilities to support IP phones, wireless access points, and security cameras while eliminating the need for separate power supplies. Key advantages include flexible deployment options through dual-purpose ports, robust enterprise-grade reliability, advanced Layer 2/3 switching features, and energy-efficient design. The switch offers exceptional value for medium to large businesses requiring reliable network infrastructure with integrated power delivery, simplified cable management, and future-proof connectivity options for both copper and fiber networks.
