| Brand | Huawei |
|---|---|
| Model | S5700-28C-PWR-EI |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 16.5" |
| Flash | 32MB |
| PN | 2352361 |
| Availability | >0.99999 |
| Memory | 256MB |
| Wide [mm] | 442.0mm |
| Height [mm] | 43.6mm |
| Power supply surge protection | 2 kV" differential mode, 4 kV" common mode |
| RPS | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Operating temperature | 0C to 50C (32F to 122F) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Stack ports | Two stack ports available on each stack card |
| Noise under normal temperature (27C, sound power) | < 45 dB(A) |
| Depth [mm] | 420.0mm |
| Maximum power consumption (100% throughput, 100% PoE loads, full speed of fans) | 842 W (system power consumption: 102 W, PoE: 740 W) |
* NOTE: Image may not exactly match the product

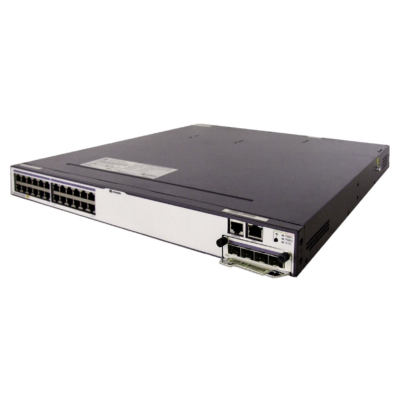

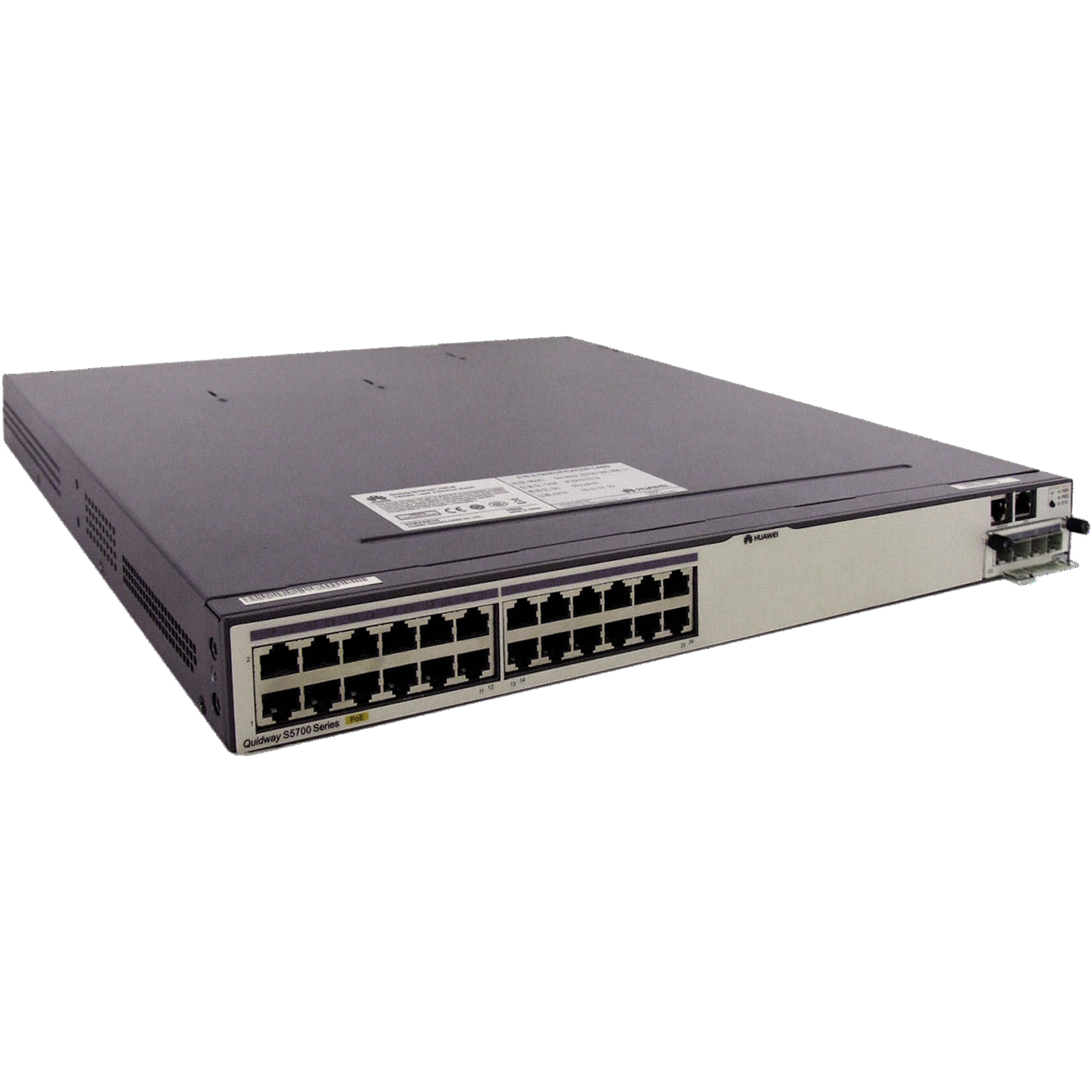

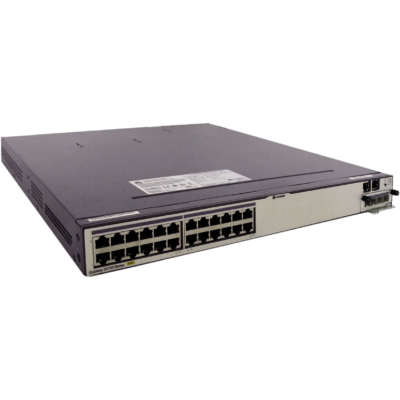

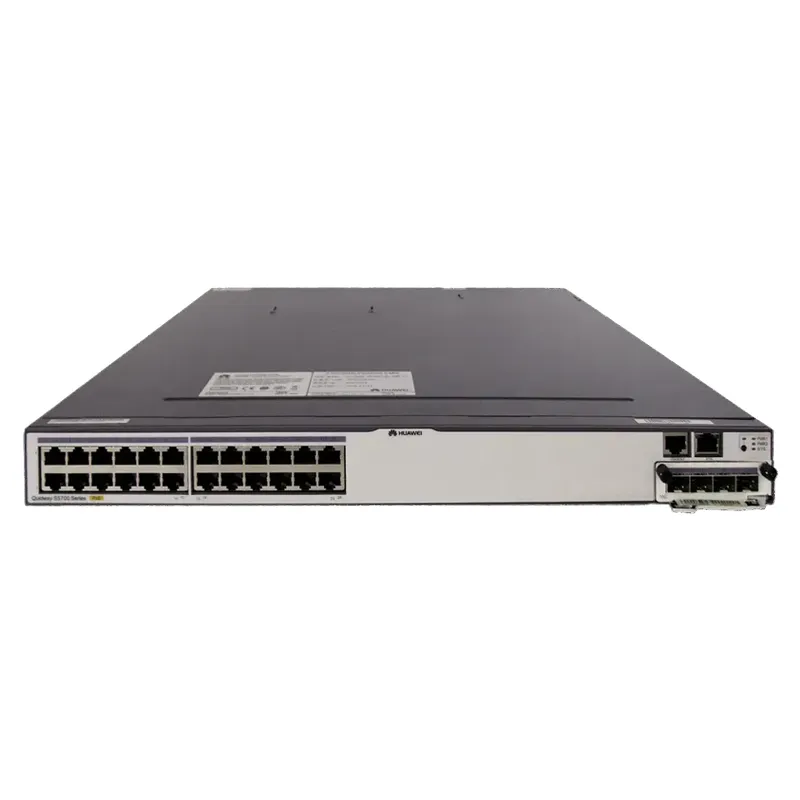

Huawei S5700-28C-PWR-EI(24 Ethernet 10/100/1000 PoE+ ports, with 2 interface slots)
The Huawei S5700-28C-PWR-EI is a high-performance enterprise switch delivering 24 Gigabit PoE+ ports and 2 flexible interface slots for seamless network expansion. With 370W PoE budget, it powers IP phones, wireless access points, and security cameras without additional power infrastructure. Features advanced Layer 3 routing, comprehensive security protocols, and energy-efficient design reducing operational costs by up to 30%. The modular interface slots support 10GE uplinks for future-ready connectivity. Ideal for medium enterprises requiring reliable, scalable networking with simplified PoE device deployment and centralized power management.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Huawei |
|---|---|
| Model | S5700-28C-PWR-EI |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 16.5" |
| Flash | 32MB |
