| PN | 2353630 |
|---|---|
| Model | S5700-28C-HI |
| Brand | Huawei |
| Warranty | 1 Year |
| Products Status | New |
| Height [mm] | 44.4 mm |
| Depth [mm] | 220.0mm |
| Wide [mm] | 442.0mm |
| Memory (RAM) | 512 MB |
| Flash | 64 MB |
| Mean time between failures (MTBF) | 28.7 years when a 4-port 10GE interface card is configured, 41.1 years when a 2-port 10GE interface card is configured, 42.9 years when a 4-port GE interface card is configured |
| Mean time to repair (MTTR) | 2 years |
| Availability | > 0.99999 |
| Service port surge protection | ??2 kV in common mode |
| Power supply surge protection | Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??1 kV in differential mode, ??2 kV in common mode |
| Dimensions (H x W x D) | 44.4 mm x 442.0 mm x 220.0 mm (1.75 in. x 17.4 in. x 8.7 in.) |
| Weight | Empty: ?? 5 kg (11.02 lb), Fully configured: ?? 6.5 kg (14.33 lb) |
| Stack ports | Versions earlier than V200R003C00 do not support stack ports. Since V200R003C00, 10GE ports on the front card can be used as stack ports. |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz, -48 V DC to -60 V DC |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz, -36 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 76.6 W |
| Operating temperature | -5??C to +55??C (23??F to 131??F), NOTE: The operating temperature of the switch is -5??C to +50??C (23??F to 122??F) when it uses SFP+ optical modules with 40 km or longer transmission distances. |
| Storage temperature | -40??C to +70??C (-40??F to +158??F) |
| Noise under normal temperature (27??C, sound power) | < 60 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.), DC power modules configured: 0-2000 m (0-6562 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
* NOTE: Image may not exactly match the product

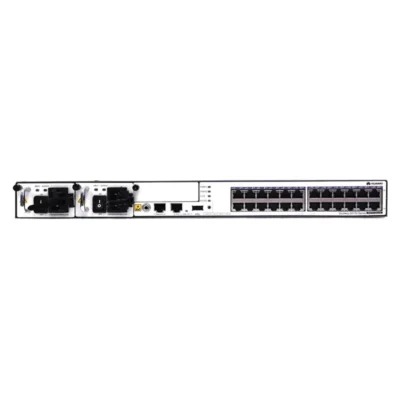

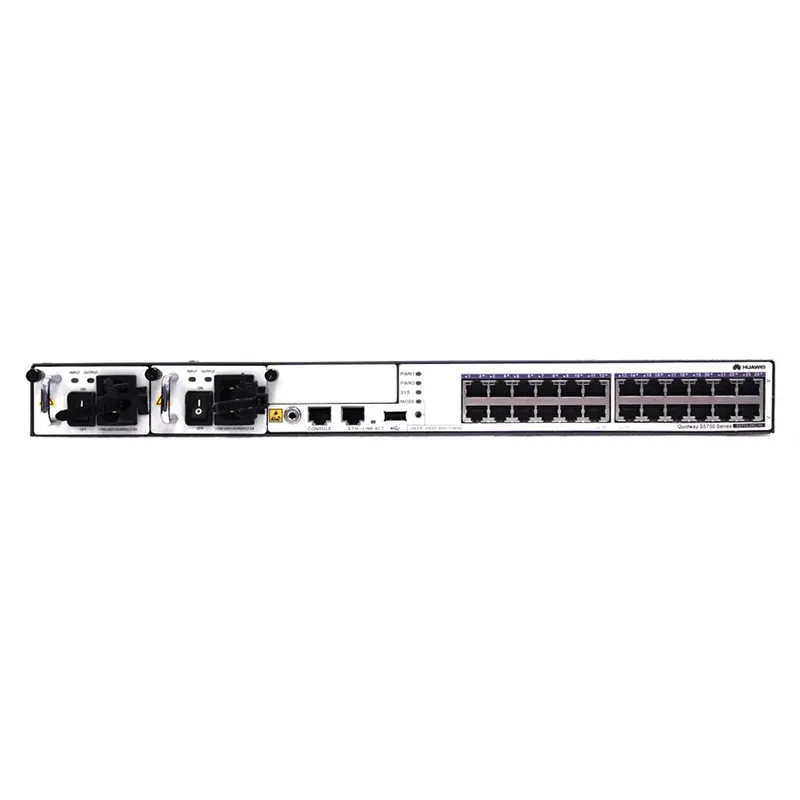

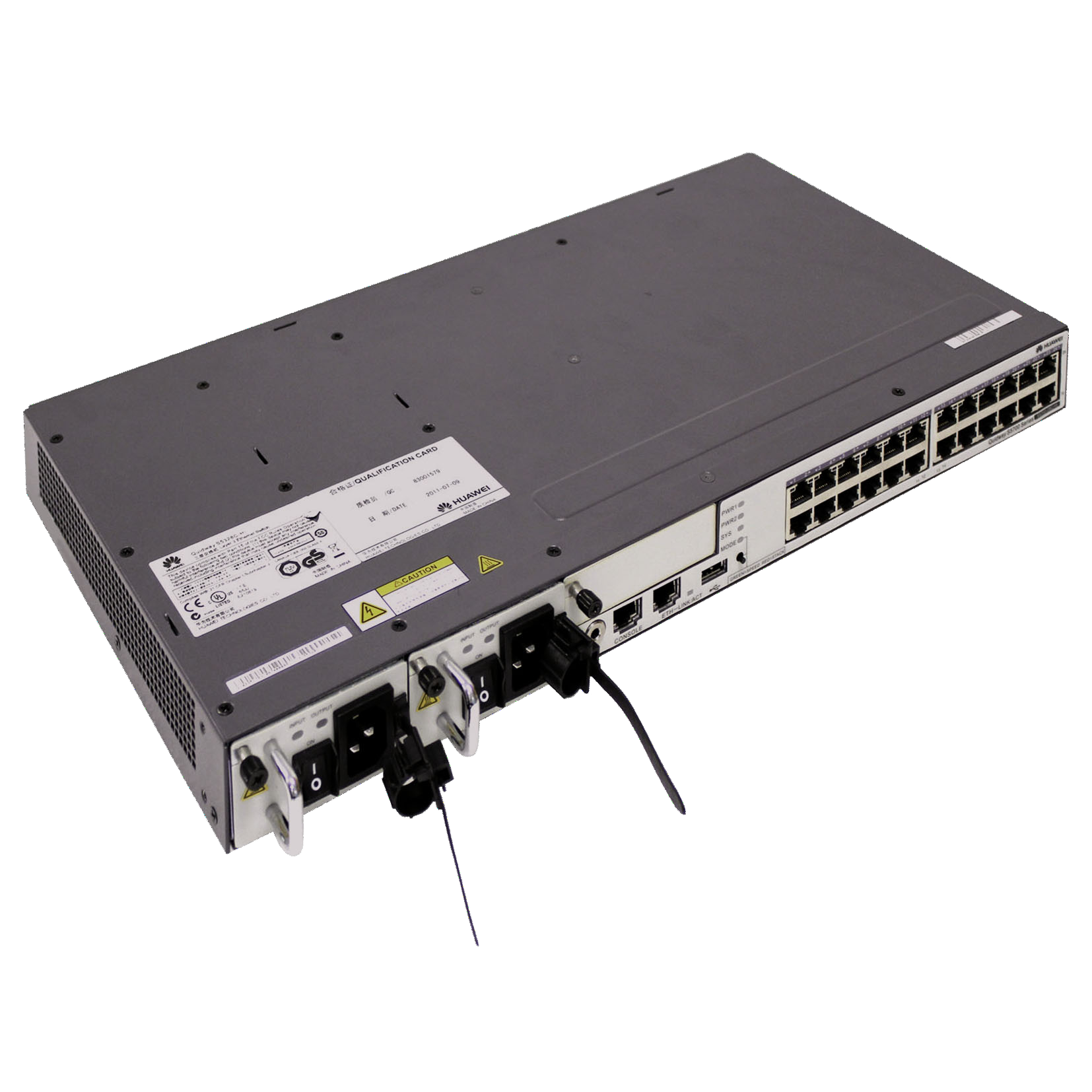

Huawei S5700-28C-HI(24 Ethernet 10/100/1000 ports,with 1 interface slot,without power module)
The Huawei S5700-28C-HI is a high-performance enterprise switch delivering 24 Gigabit Ethernet ports with one expandable interface slot for enhanced connectivity options. This managed Layer 2/3 switch features advanced security protocols, energy-efficient design, and robust QoS capabilities for optimized network performance. Key benefits include flexible deployment without included power module for customized power solutions, comprehensive network management through web interface and CLI, and reliable switching capacity up to 336 Gbps. Ideal for medium to large enterprises requiring scalable, secure networking infrastructure with future expansion capabilities through the modular interface slot design.
