| Brand | Huawei |
|---|---|
| Model | S5700-28C-EI |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 16.5" |
| Flash | 32MB |
| PN | 2352338 |
| Availability | >0.99999 |
| Memory | 256MB |
| Wide [mm] | 442.0mm |
| Height [mm] | 43.6mm |
| Power supply surge protection | Using AC power modules: 6 kV" differential mode, 6 kV" common mode Using DC power modules: 1 kV" differential mode, 2 kV" common mode |
| RPS | Not supported |
| Rated voltage range | -48 V DC to -60 V DC, 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz, -36 V DC to -72 V DC |
| Operating temperature | 0C to 50C (32F to 122F) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.), DC power modules configured: 0-2000 m (0-6562 ft.) |
| Stack ports | Two stack ports available on each stack card |
| Noise under normal temperature (27C, sound power) | < 41 dB(A) |
| Depth [mm] | 420.0mm |
| Maximum Power | 60W |
* NOTE: Image may not exactly match the product

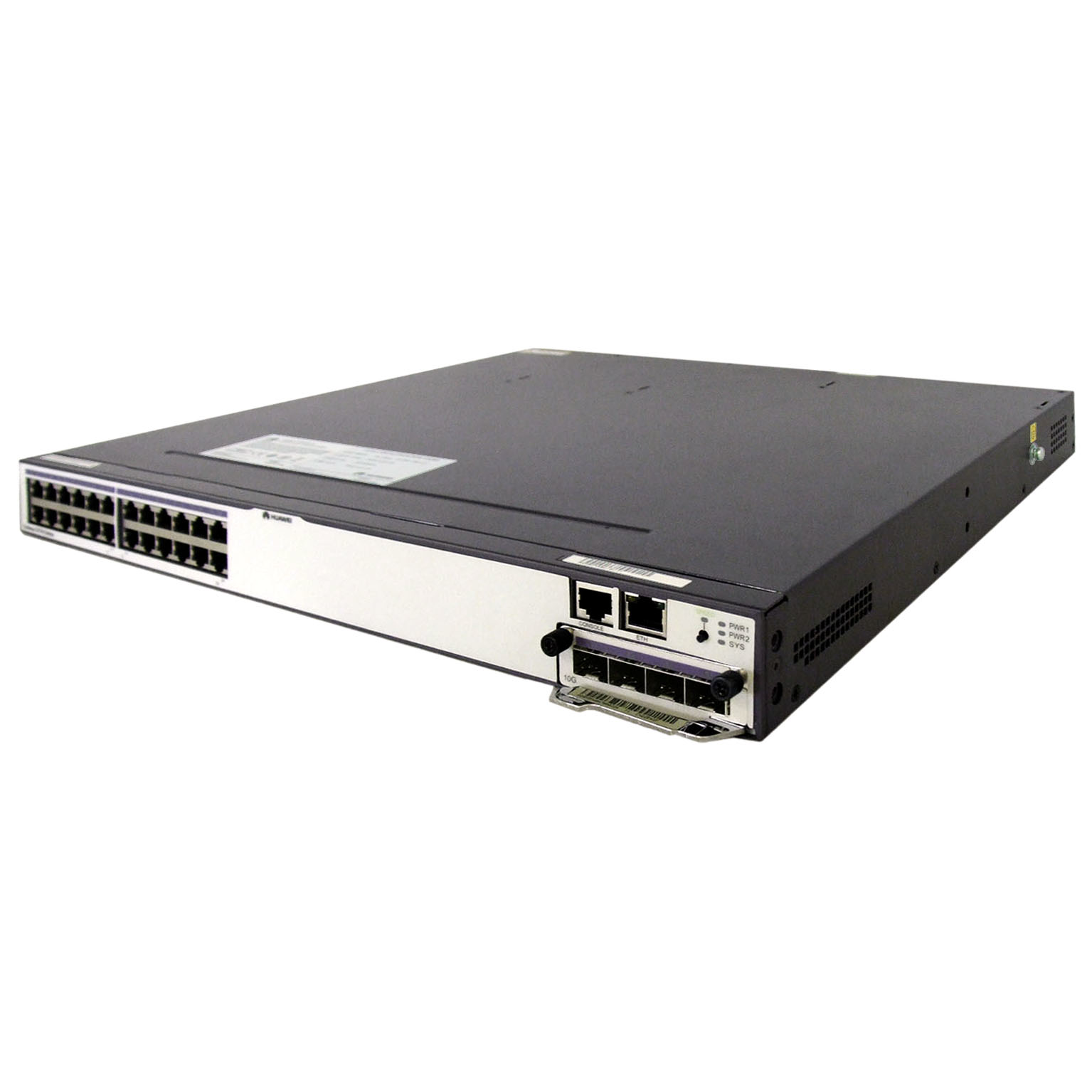

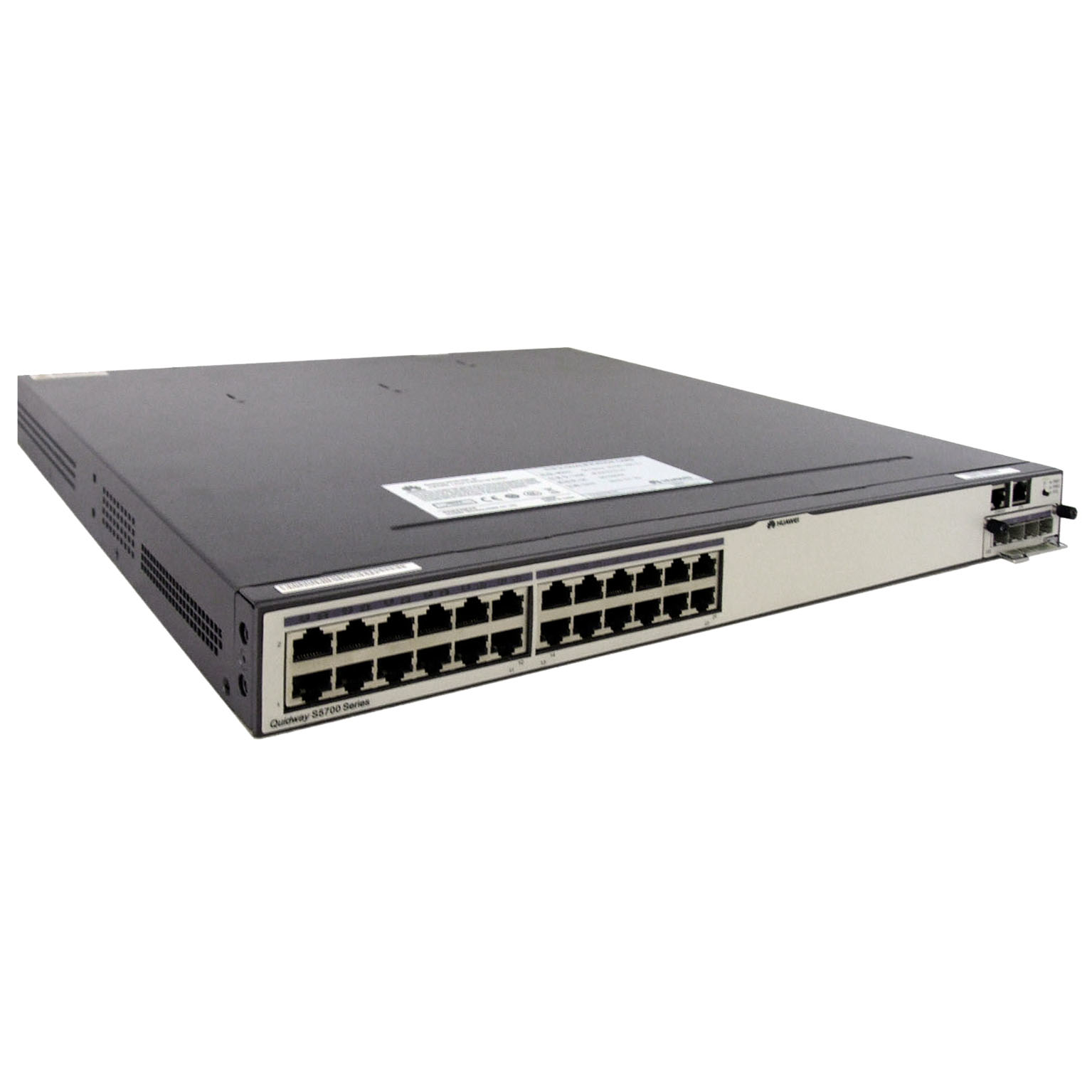

Huawei S5700-28C-EI(24 10/100/1000Base-T, Dual Slots of power, Single Slot of Flexible Card)
The Huawei S5700-28C-EI is an enterprise-grade managed switch delivering robust network performance with 24 Gigabit Ethernet ports (10/100/1000Base-T) for high-speed connectivity. Key features include dual power supply slots ensuring 99.9% uptime through redundancy, a flexible expansion card slot for future scalability, and advanced Layer 2/3 switching capabilities. The switch offers comprehensive security with ACLs, port security, and DHCP snooping, while supporting energy-efficient design reducing operational costs by up to 30%. Its stackable architecture enables seamless network expansion, making it ideal for medium to large enterprises requiring reliable, scalable, and secure network infrastructure with minimal downtime and maximum flexibility.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Huawei |
|---|---|
| Model | S5700-28C-EI |
| Products Status | New |
| Dimensions | 1.72" x 17.4" x 16.5" |
| Flash | 32MB |
Inquiry Now
Contact us for more discounts!
