| Brand | Huawei |
|---|---|
| Warranty | 1 Year |
| Part Number | 02354GCT |
| Model | CE6863E-48S6CQ |
| Other part numbers | 02354GCW (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake)), 02354GCX (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust)) |
| Short Name | CE6863E |
| Dimensions with packaging (H x W x D) [mm (in.)] | 175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | – Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.), – Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.) |
| Weight without packaging [kg (lb)] | 5.7 kg (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 7.8 kg (17.2 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Weight with packaging [kg (lb)] | 8.95 kg |
| Weight with packaging (full configuration) [kg (lb)] | 11.05kg |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | Supported |
| Power supply mode | AC,DC,HVDC |
| Console port | RJ45 |
| Service port supporting the stack function | 25GE optical ports, and 100GE optical ports |
| RTC | Supported |
| Static power consumption [W] | 167 W |
| Static heat dissipation [BTU/hour] | 570 BTU/hour |
| Maximum power consumption [W] | 384 W |
| Maximum heat dissipation | 1310 BTU/hour |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
* NOTE: Image may not exactly match the product

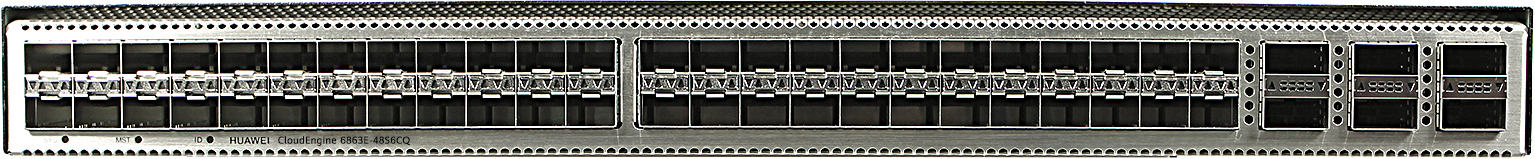

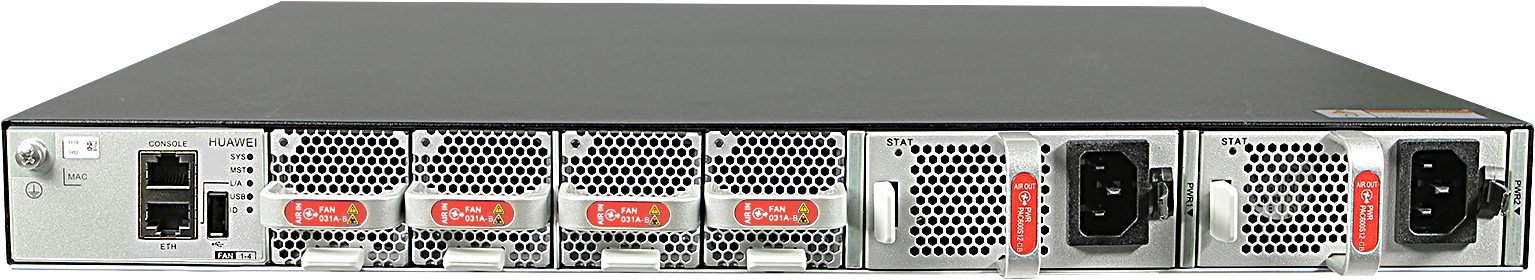

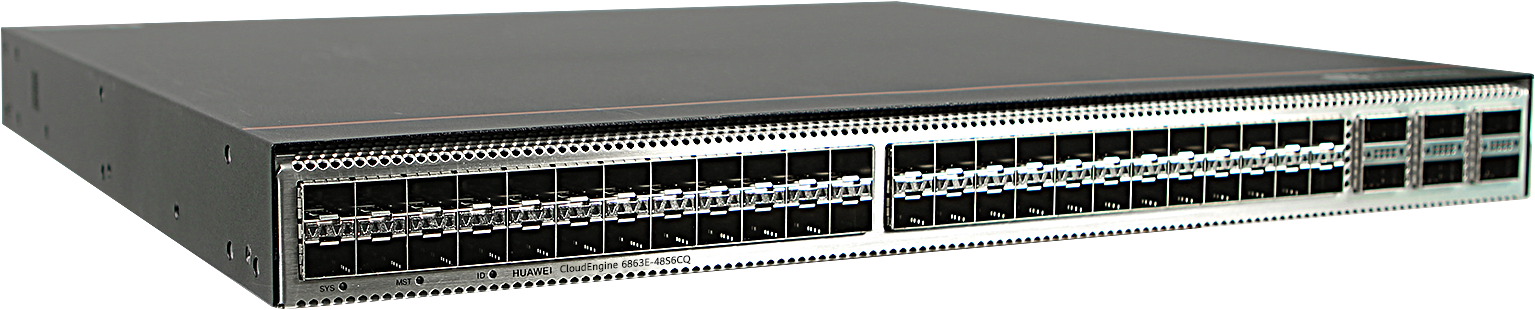

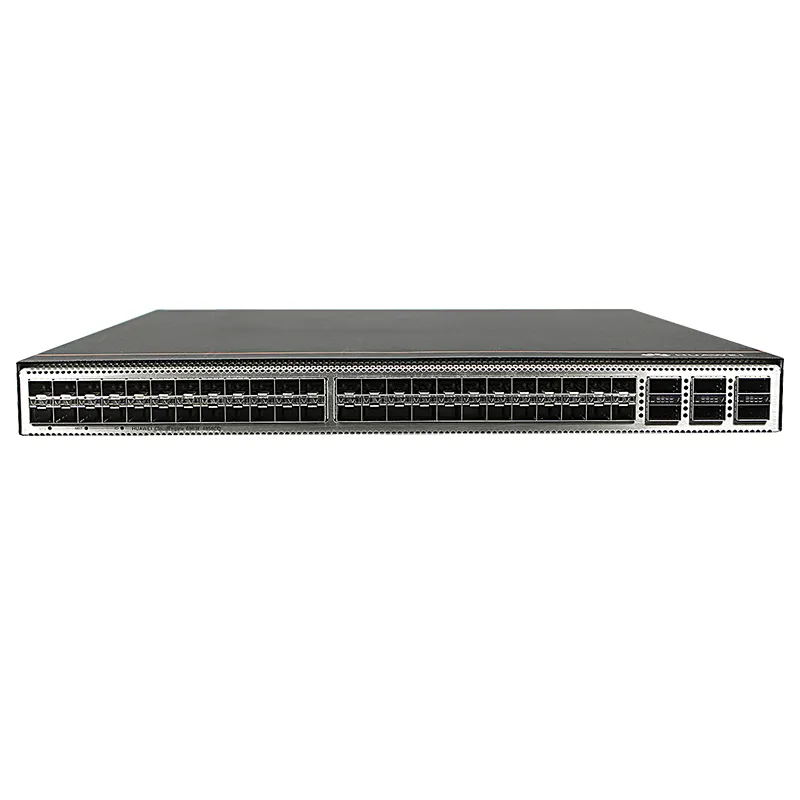

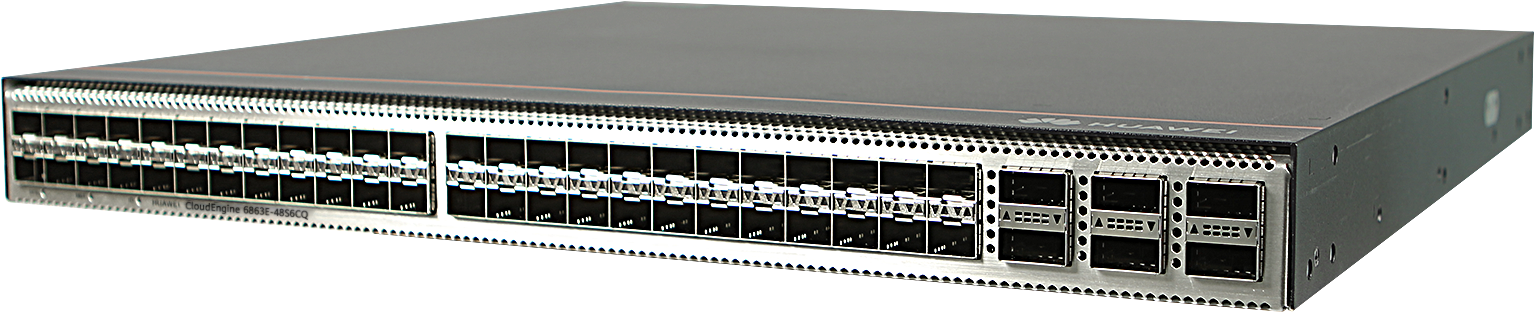

Huawei CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, without fan and power modules)
The Huawei CE6863E-48S6CQ is a high-performance data center switch delivering exceptional port density with 48 x 25GE SFP28 ports and 6 x 100GE QSFP28 uplinks in a compact 1U form factor. This fanless, modular design enables flexible deployment in noise-sensitive environments while reducing power consumption and maintenance costs. Key advantages include ultra-low latency for mission-critical applications, advanced traffic management capabilities, and comprehensive network virtualization support. The switch excels in high-frequency trading, cloud computing, and enterprise data centers where maximum throughput, minimal latency, and operational flexibility are paramount. Its modular power and cooling architecture allows customized configurations to match specific deployment requirements while maintaining carrier-grade reliability.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | Huawei |
|---|---|
| Warranty | 1 Year |
| Part Number | 02354GCT |
| Model | CE6863E-48S6CQ |
| Other part numbers | 02354GCW (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake)), 02354GCX (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust)) |
