| Brand | xfusion |
|---|---|
| Form Factor | 2U |
| Other Features | 2-socket rack server |
| Operating Temperature | 5oC to 45oC (41oF to 113oF), and ASHRAE A3 and A4 compliant |
| Power Supply Units | 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 1): 550W AC Platinum PSUs, 900W AC Platinum/Titanium PSUs, 1,500W AC Platinum PSUs, 1,500W 380V HVDC PSUs, 1,200W -48V to -60V DC PSUs |
| Internal Storage | Supports the following hard drive configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs, 12/16/20 x 3.5-inch SAS/SATA HDDs, 4, 8, 12, 24, or 28 NVMe SSDs, 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SSDs |
| PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC. |
| Processors | 1 or 2 full-series Intel Xeon Scalable Processors of up to 205W |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60, Configured with a supercapacitor for power-off protection for the cache (optional), RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Memory | 24 DDR4 DIMM slots, up to 2,666 MT/s |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Fan Modules | 4 hot-swappable counter-rotating fan modules with optional N+1 redundancy |
| Model | FusionServer 2288H V5 |
| Dimensions (H x W x D) | Chassis with 3.5-inch hard drives: 86.1 mm x 436 mm x 748 mm (3.39 in. x 17.17 in. x 29.45 in.), Chassis with 2.5-inch hard drives: 86.1 mm x 436 mm x 708 mm (3.39 in. x 17.17 in. x 27.87 in.) |
| Network Ports | FlexibleLOM: 2 GE or 4 GE, 2 x 10 GE, or 1 or 2 x 56 Gbit/s Fourteen Data Rate (FDR) InfiniBand (IB) interfaces |
| Installation suite | L-shaped guide rails, adjustable guide rails, and holding rails |
* NOTE: Image may not exactly match the product

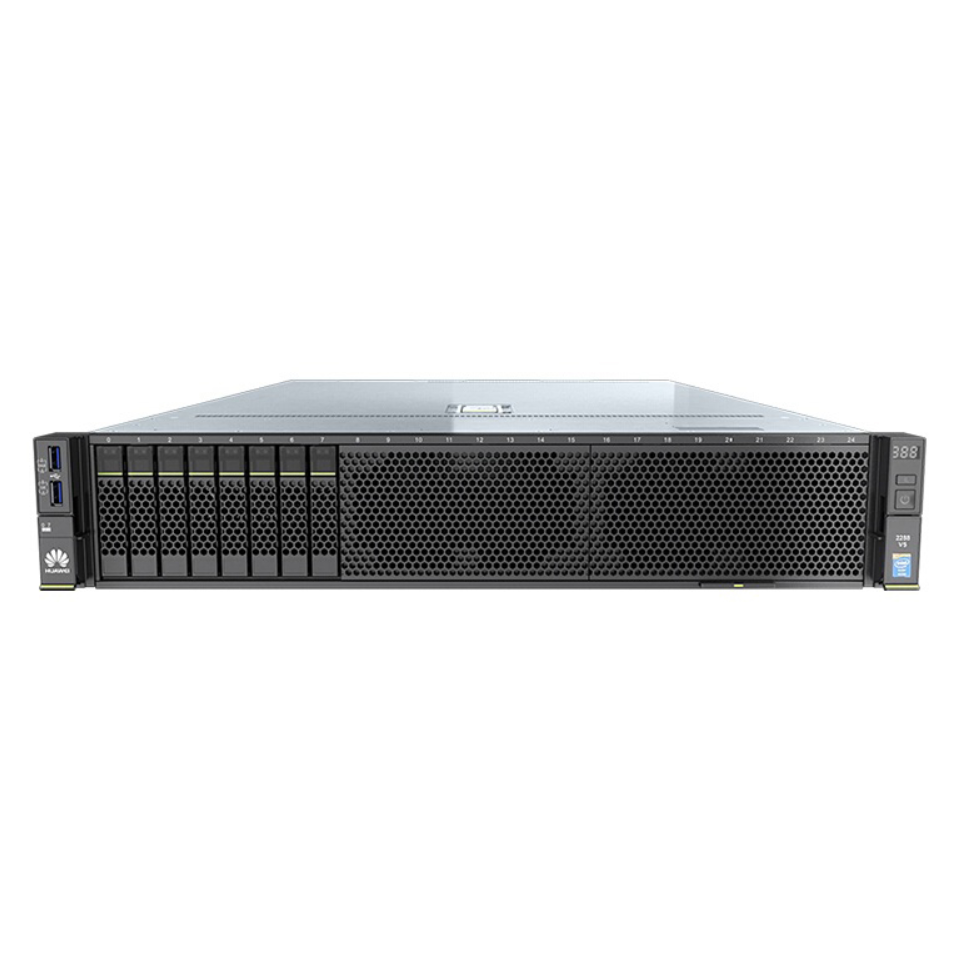

Huawei 2288H V5 (8*2.5inch HDD Chassis, With 2*GE and 2*10GE Electrical Ports) H22H-05
The Huawei 2288H V5 (H22H-05) is a high-performance 2U rack server designed for enterprise data centers and demanding computing workloads. This versatile server features an 8-bay 2.5-inch HDD chassis configuration, providing excellent storage density and flexibility for hot-swappable drives.
Key features include dual Gigabit Ethernet ports and dual 10 Gigabit Ethernet electrical ports, delivering exceptional network connectivity and bandwidth for data-intensive applications. The server supports Intel Xeon processors, offering powerful computing performance with energy-efficient operation.
Benefits include scalable storage expansion, redundant network connectivity for high availability, tool-free maintenance design, and comprehensive management capabilities through Huawei’s iBMC intelligent management system. The compact 2U form factor maximizes rack space utilization while maintaining excellent cooling and serviceability.
Unique selling points: Huawei’s innovative thermal design ensures optimal performance under heavy workloads, while the server’s modular architecture enables easy customization for specific business requirements. The combination of high-speed networking, flexible storage options, and enterprise-grade reliability makes it ideal for virtualization, cloud computing, database applications, and high-performance computing environments.
