Key Features :

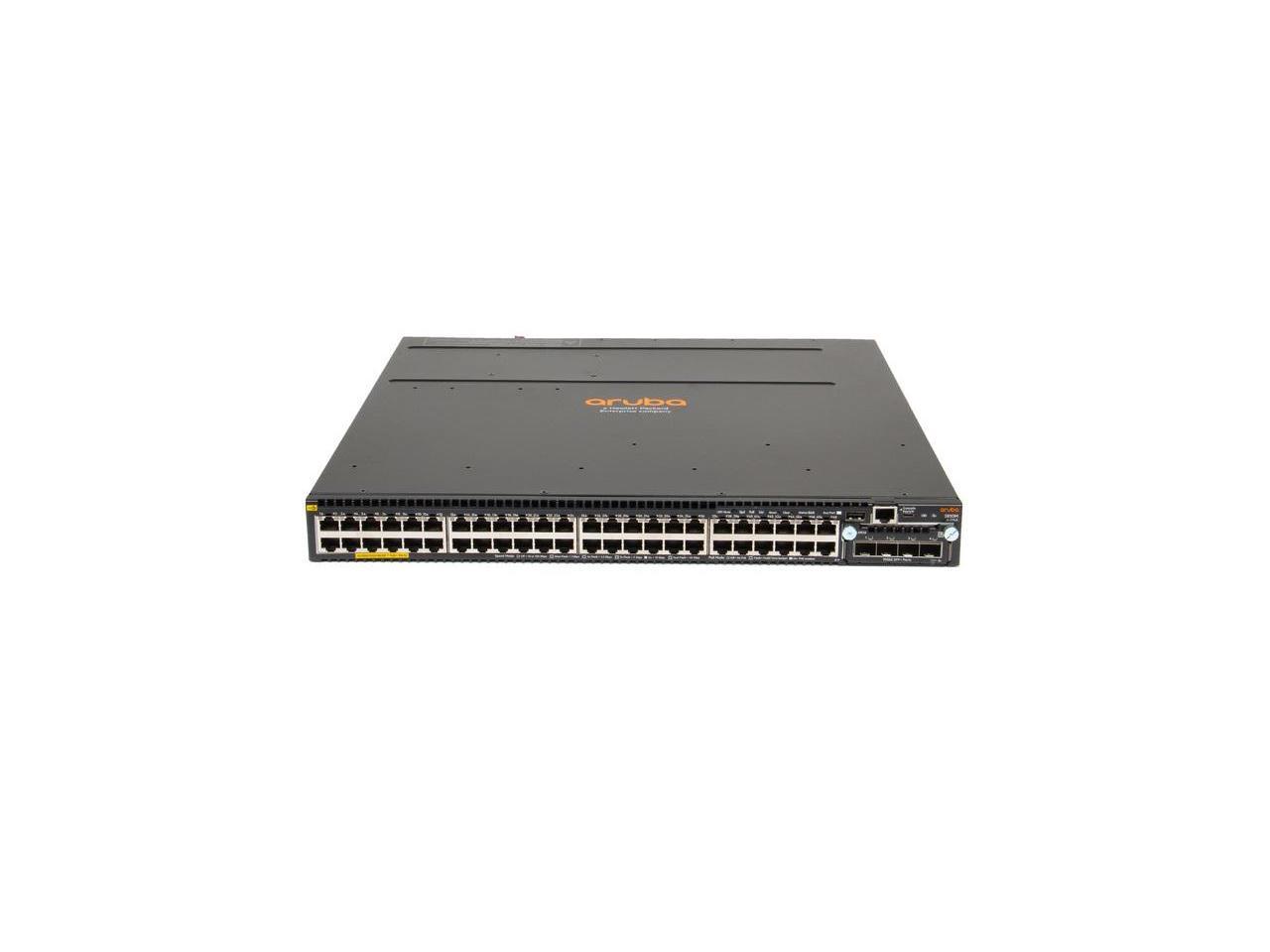

- Device Type : Switch 48 Ports L3 Managed Stackable
- Enclosure Type : Rack-mountable 1u
- Subtype : Gigabit Ethernet
- Ports : 48 X 10/100/1000 (poe+)
- Power Over Ethernet (poe) : (poe+)
- Performance : Latency (1000base-t): 2.8 Latency (10 Gbps): 1.8 Latency (40 Gbps): 1.5us Throughput (64-byte Packet Size): Up To 190.5 Mpps Routing/switching Capacity: 320 Gbps Switching Fabric Bandwidth: 338 Gbps
- Capacity : Ipv4 Routing Table Entries: 10000 Ipv6 Routing Table Entries: 5000
- Mac Address Table Size : 64k Entries
- Jumbo Frame Support : Yes
- Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Vrrp, Ospfv2, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Bidirectional Forwarding Detection (bfd)
- Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon
- Encryption Algorithm : Ssl
- Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
- Features : Arp Support, Spanning Tree Protocol (stp) Support, Per-vlan Spanning Tree (pvst), Access Control List (acl) Support, Quality Of Service (qos), Device Link Detection Protocol (dldp) Support, Uni-directional Link Detection (udld), Management Information Base (mib), Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Class Of Service (cos), Sflow V5, Type Of Service (tos), Openflow Support, Internet Control Message Protocol (icmp)
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1x, Ieee 802.1s, Ieee 802.1v, Ieee 802.11n, Ieee 802.1ab (lldp), Ieee 802.3at
- Processor : 2
- Ram : 6 Gb Ddr3 Sdram
- Flash Memory : 1 Gb
Expansion / Connectivity :
Interfaces : - 48 X 1000base-t – Rj-45 – Poe+
- 1 X Serial (console) – Rj-45 – Management
- 1 X Management – Rj-45
- 1 X – Rj-45
- 1 X Micro-usb – Type B
Expansion Slots :
- 1 (total) / 1 (free) X Expansion Slot
- 1 (total) / 1 (free) X Stacking Module Slot
Power :
- Power Device : Internal Power Supply Hot-plug
- Installed Qty : 1 (installed) / 2 (max)
- Power Redundancy : Yes
- Power Redundancy Scheme : 1+1 (with Optional Power Supply)
- Power Provided : 1050 Watt
- Voltage Required : Dc 54 V
- Energy Star Qualified : Yes
