HPE Aruba JL260A#ABA 2930F 48G 4 SFP Switch wholesale

* NOTE: Image may not exactly match the product

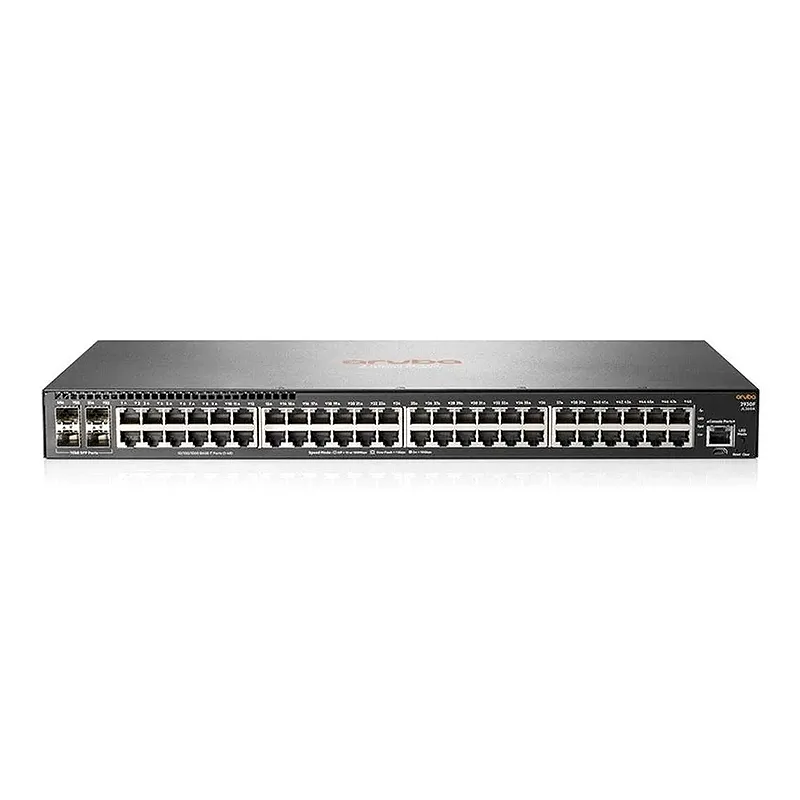

HPE Aruba JL260A#ABA 2930F 48G 4 SFP Switch

The HPE Aruba JL260A#ABA 2930F is a high-performance 48-port Gigabit Ethernet switch designed for enterprise networks requiring reliable, scalable connectivity. This Layer 2+ managed switch delivers 48 Gigabit Ethernet ports plus 4 SFP+ 10GbE uplink ports, providing exceptional bandwidth and flexibility for growing businesses.

**Key Features:**
– 48 x 10/100/1000 Ethernet ports with PoE+ capability
– 4 x SFP+ 10 Gigabit uplink ports for high-speed backbone connectivity
– Advanced Layer 2+ switching with static routing capabilities
– Comprehensive security features including access control lists and port security
– Energy-efficient design with smart power management
– Lifetime warranty with next-business-day advance hardware replacement

**Benefits:**
– Simplified network management through Aruba’s intuitive web interface and mobile app
– Future-proof investment with 10GbE uplinks supporting network expansion
– Reduced operational costs through energy-efficient operation and zero-touch provisioning
– Enhanced security protecting against unauthorized access and network threats
– Reliable performance with carrier-grade availability and redundancy features

**Unique Selling Points:**
The 2930F stands out with its combination of enterprise-grade features at a competitive price point, exceptional build quality backed by HPE’s lifetime warranty, and seamless integration with Aruba’s ecosystem for unified wired and wireless management.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

BrandHPE
ModelJL260A#ABA
Primary Ports(48) RJ-45 autosensing 10/100/1000 ports(4) SFP
Features48 port 1 Gigabit Switch with four 1 Gigbit SFP uplinksSimplify with Integrated Wired / Wireless ManagementFixed Port L3 Managed Ethernet
Dimensions1.73" x 17.42" x 9.70"

Key Features :

  • Device Type : Switch – 48 Ports – L3 – Managed – Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 48 X 10/100/1000 + 4 X Gigabit Sfp (uplink)
  • Performance : Throughput : 77.4 Mpps | Switching Capacity : 104 Gbps | Latency (1 Gbps) : 3.8 ??s
  • Capacity : Jumbo Frame Size : 9220 | Ipv4 Routing Table Entries : 10000 | Ipv6 Routing Table Entries : 5000
  • Mac Address Table Size : 32k Entries
  • Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
  • Encryption Algorithm : Md5, Ssl
  • Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
  • Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax
  • Processor : 1 X Arm Cortex-a9 : 1.016 Ghz
  • Ram : 1 Gb – Ddr3 Sdram
  • Flash Memory : 4 GbExpansion / Connectivity :
  • Interfaces : 48 X 1000base-t – Rj-45 | 4 X Gigabit Lan- Sfp | 1 X Serial (console)
  • Expansion Slots : 1 (total) / 1 (free) X Expansion Slot
  • Installed Modules Qty (max) : 0 (installed) / 4 (max)Power :
  • Power Device : Internal Power Supply
  • Voltage Required : Ac 100-127/200-240 V (50/60 Hz)
  • Power Consumption Operational : 46.6 Watt
Brand

HPE
Model

JL260A#ABA
Primary Ports

(48) RJ-45 autosensing 10/100/1000 ports(4) SFP
Features

48 port 1 Gigabit Switch with four 1 Gigbit SFP uplinksSimplify with Integrated Wired / Wireless ManagementFixed Port L3 Managed Ethernet
Dimensions

1.73" x 17.42" x 9.70"
Weight

6.83 lbs.
Package Contents

(1) Aruba 2930F 48G 4SFP Switch, (1) power cord, (1) screw kit, (4) mounting ears, (4) bumper feet, (1) cable tie
