HPE Aruba JL260A 2930F 48G 4 SFP Switch wholesale

* NOTE: Image may not exactly match the product

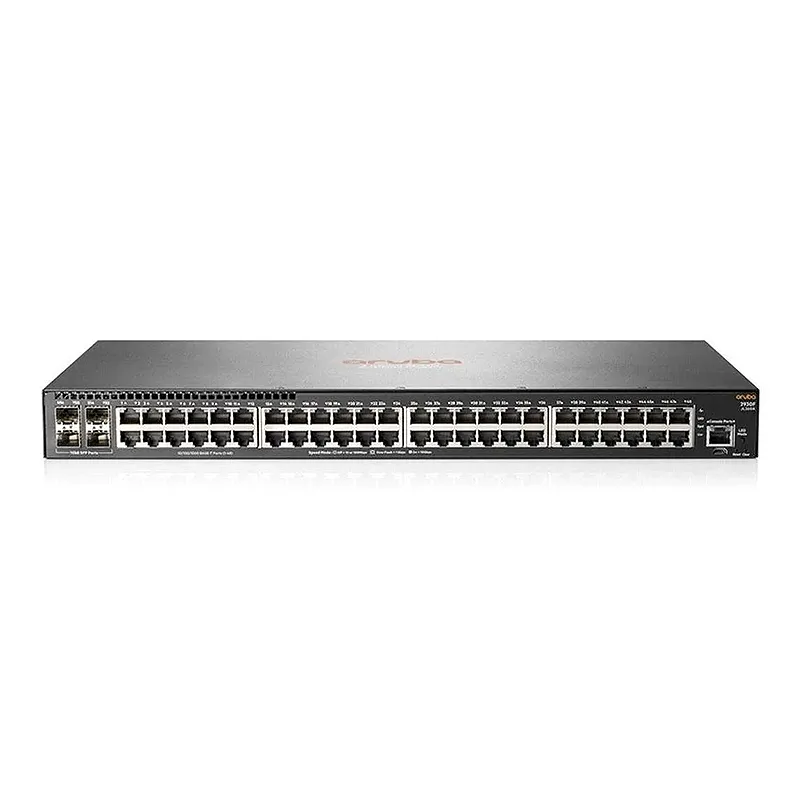

HPE Aruba JL260A 2930F 48G 4 SFP Switch

The HPE Aruba JL260A 2930F is a high-performance 48-port Gigabit Ethernet switch designed for enterprise networks requiring reliable, scalable connectivity. This Layer 2+ managed switch delivers 48 Gigabit Ethernet ports plus 4 SFP uplink ports, providing flexible fiber connectivity options for backbone connections.

Key features include advanced security with dynamic segmentation capabilities, comprehensive Quality of Service (QoS) controls for traffic prioritization, and energy-efficient design with smart power management. The switch supports VLAN configuration, link aggregation, and spanning tree protocols for network optimization and redundancy.

Built for demanding business environments, it offers non-blocking switching performance with a 176 Gbps switching capacity and 130.95 Mpps forwarding rate. The fanless design ensures silent operation while maintaining robust performance. Cloud-ready management through Aruba Central enables simplified deployment and monitoring.

Ideal for medium to large enterprises, this switch combines enterprise-grade reliability, advanced security features, and scalable performance in a cost-effective solution that grows with business needs while reducing operational complexity.

Quote1 Piece(MOQ)

Premium Client Discounts Available

Primary Ports(48) RJ-45 autosensing 10/100/1000 ports(4) SFP
ModelJL260A
Weight6.83 lbs.
Dimensions1.73" x 17.42" x 9.70"
BrandHPE

Key Features :

  • Device Type : Switch – 48 Ports – L3 – Managed – Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 48 X 10/100/1000 + 4 X Gigabit Sfp (uplink)
  • Performance : Throughput : 77.4 Mpps | Switching Capacity : 104 Gbps | Latency (1 Gbps) : 3.8 ??s
  • Capacity : Jumbo Frame Size : 9220 | Ipv4 Routing Table Entries : 10000 | Ipv6 Routing Table Entries : 5000
  • Mac Address Table Size : 32k Entries
  • Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
  • Encryption Algorithm : Md5, Ssl
  • Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
  • Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax
  • Processor : 1 X Arm Cortex-a9 : 1.016 Ghz
  • Ram : 1 Gb – Ddr3 Sdram
  • Flash Memory : 4 GbExpansion / Connectivity :
  • Interfaces : 48 X 1000base-t – Rj-45 | 4 X Gigabit Lan- Sfp | 1 X Serial (console)
  • Expansion Slots : 1 (total) / 1 (free) X Expansion Slot
  • Installed Modules Qty (max) : 0 (installed) / 4 (max)Power :
  • Power Device : Internal Power Supply
  • Voltage Required : Ac 100-127/200-240 V (50/60 Hz)
  • Power Consumption Operational : 46.6 Watt
Primary Ports

(48) RJ-45 autosensing 10/100/1000 ports(4) SFP
Model

JL260A
Weight

6.83 lbs.
Dimensions

1.73" x 17.42" x 9.70"
Brand

HPE
Features

48 port 1 Gigabit Switch with four 1 Gigbit SFP uplinksSimplify with Integrated Wired / Wireless ManagementFixed Port L3 Managed Ethernet
Package Contents

(1) Aruba 2930F 48G 4SFP Switch, (1) power cord, (1) screw kit, (4) mounting ears, (4) bumper feet, (1) cable tie
