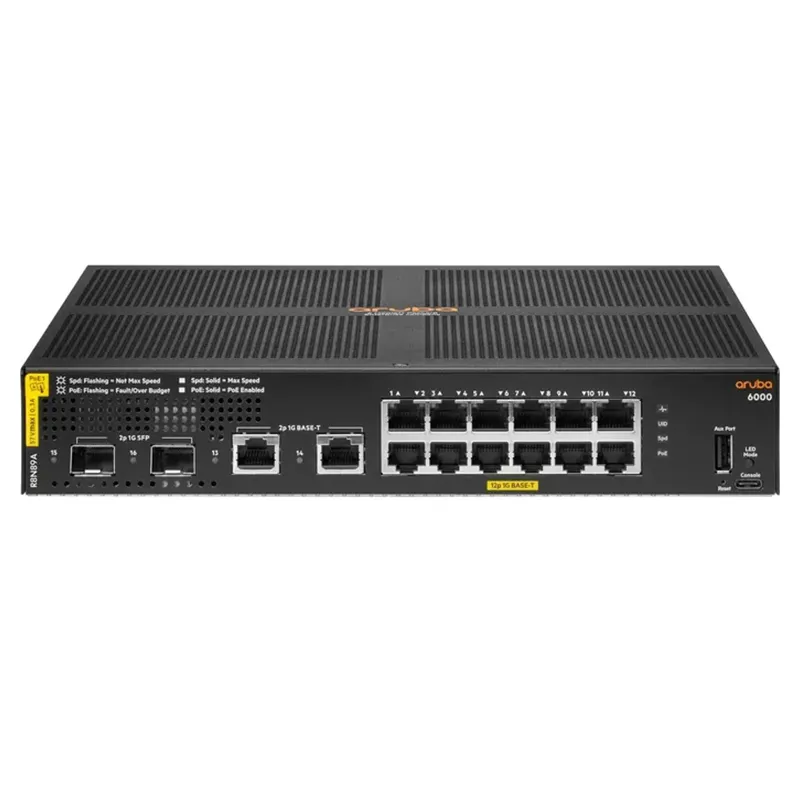

HPE Aruba CX 6000 R8N89A#ABA Aruba CX 6000 12G Class4 PoE 2G/2SFP 139W Switch

The HPE Aruba CX 6000 R8N89A is a high-performance managed switch designed for modern enterprise networks. This compact 12-port switch delivers Class 4 PoE+ power (139W total) to support demanding devices like wireless access points, IP cameras, and VoIP phones. It features 12 Gigabit Ethernet ports with 2 additional SFP uplink ports for fiber connectivity and network expansion.

Key benefits include cloud-native management through Aruba Central, advanced security with micro-segmentation capabilities, and intelligent power management that optimizes energy consumption. The switch supports modern protocols like EVPN-VXLAN for network virtualization and provides zero-touch provisioning for simplified deployment.

Its unique selling points are the integrated Aruba NetEdit for automated configuration, built-in network analytics for proactive monitoring, and a fanless design ensuring silent operation in office environments. The CX 6000 offers enterprise-grade reliability with lifetime warranty while maintaining cost-effectiveness for small to medium deployments requiring robust PoE capabilities and future-ready networking features.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

BrandHPE
SeriesAruba CX 6000
ModelR8N89A#ABA
Primary Ports12 x RJ45 + 2 x SFP
Primary Port Speed10/100/1000Mbps

Key Features :

  • Device Type : Switch – 12 Ports – Managed – Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 12 X 10/100/1000 (poe+) + 2 X Gigabit Sfp + 2 X 1000base-t
  • Power Over Ethernet (poe) : Poe
  • Poe Budget : 139 W
  • Performance : Packet Buffer Size: 12.38 Mb | Throughput: 23.8 Mpps | Switching Capacity: 32 Gbps | Latency (1 Gbps): 2.3 Microseconds | Latency (10 Gbps): 2.6 Microseconds
  • Capacity : Switched Virtual Interfaces (svis): 16 | Arp Entries: 1024 | Ipv4 Routes (unicast): 512 | Ipv6 Routes (unicast): 512 | Igmp Groups: 512 | Mld Groups: 512 | Ipv4 Acl Entries (ingress): 256 | Ipv6 Acl Entries (ingress): 128 | Mac Acl Entries (ingress): 256
  • Mac Address Table Size : 8192 Entries
  • Jumbo Frame Support : 9198 Bytes
  • Routing Protocol : Igmpv2, Igmpv3
  • Remote Management Protocol : Snmp 1, Snmp 3, Snmp 2c, Http, Https, Radius
  • Encryption Algorithm : Ssl
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Mld Snooping, Trusted Platform Module (tpm), Fanless, Lacp Support, Lldp Support, Dhcp Client, Management Information Base (mib), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing
  • Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az
  • Processor : 1 X Arm A9: 1.016 Ghz
  • Ram : 4 Gb Ddr3 Sdram
  • Flash Memory : 16 GbExpansion / Connectivity :
    Interfaces:
  • 12 X 10/100/1000 Base-t Rj-45 Poe Class 4 – 139 W
  • 2 X 10gbit Lan Sfp
  • 2 X Gigabit Lan
  • 1 X Usb Type A
  • 1 X Usb-c ConsolePower :
  • Power Device : Internal Power Supply
  • Voltage Required : Ac 100-240 V (50/60 Hz)
  • Power Consumption Operational : 21.9 Watt
Brand

HPE
Series

Aruba CX 6000
Model

R8N89A#ABA
Primary Ports

12 x RJ45 + 2 x SFP
Primary Port Speed

10/100/1000Mbps
Features

The new Aruba CX 6000 Switch Series delivers a simple and convenient Layer 2 access solution ideal for branch offices, midsize businesses, and SMBs looking for cost effective, reliable, and security-enhanced wired access.- Simplify IT operations with next-gen Layer 2 Gigabit Ethernet switch series that provides entry level, reliable and convenient wired access connectivity. – Convenient built-in 1GbE uplinks- Silent deployment with compact and fanless 12 port PoE model.- Flexibility to manage and simplify configs with Aruba NetEdit, easy to use Web GUI, or industry standard CLI.- Software defined ready with REST APIs.- Layer 2 feature set with static routing and no switch software licensing required. – Power cord included1 Aruba Central support in future release.
Dimensions

1.73" x 10.00" x 10.04"
Weight

6.13 lbs.
