Key Features :

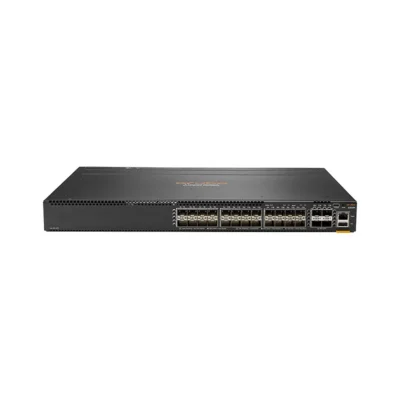

- Device Type : Switch – 24 Ports – L3 – Managed – Stackable
- Enclosure Type : Rack-mountable 1u
- Subtype : 10 Gigabit Ethernet
- Ports : 24 X 1 Gigabit / 10 Gigabit Sfp+ + 4 X 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking)
- Performance : Switching Capacity: 880 Gbps | Throughput: 654 Mpps | Latency (1 Gbps): 1.99 ??s | Latency (10 Gbps): 1.49 ??s | Latency (25 Gbps): 2.85 ??s | Latency (50 Gbps): 2.82 ??s | Stacking Bandwidth: 200 Gbps
- Capacity : Switched Virtual Interfaces (svis): 1000 | Ipv4 Host Table Capacity: 32000 | Ipv6 Host Table Capacity: 32000 | Ipv4 Routes (unicast): 64000 | Ipv6 Routes (unicast): 32000 | Ipv4 Routes (multicast): 8000 | Ipv6 Routes (multicast): 8000 | Igmp Groups: 8000 | Mld Groups: 4000 | Ipv4 Acl Entries (ingress): 5000 | Ipv6 Acl Entries (ingress): 1250 | Mac Acl Entries (ingress): 5000 | Ipv4 Acl Entries (egress): 2000 | Ipv6 Acl Entries (egress): 500 | Mac Acl Entries (egress): 2000
- Mac Address Table Size : 32000 Entries
- Jumbo Frame Support : 9198 Bytes
- Routing Protocol : Egp, Bgp-4, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Msdp, Static Ipv6 Routing, Ecmp, Mld, Bidirectional Forwarding Detection (bfd)
- Remote Management Protocol : Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Cli, Xrmon, Sftp
- Authentication Method : Secure Shell (ssh), Radius, Tacacs+
- Features : Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, High Availability, Per-vlan Spanning Tree (pvst), Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Deficit Weighted Round Robin (dwrr), Lldp Support, Management Information Base (mib), Dhcp Protection, Dual Firmware Images, Multiple Vlan Registration Protocol (mvrp), Packet Storm Protection, Class Of Service (cos), Strict Priority (sp), Broadcast Storm Protection, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Virtual Extensible Lan (vxlan), Multicast Storm Protection, Network Timing Protocol (ntp), Ra Guard, Zero-touch Provisioning (ztp), Protocol Independent Multicast (pim), Vlan Tagging, Rapid Reconfiguration Of Spanning Tree (rstp), Ipv4 And Ipv6 Dual Stack, Ip Multicast, Front To Side Airflow, Aruba Virtual Switching Framework (vsf), Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Network Load Balancer (nlb)
- Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.1ax
- Processor : 1 X Arm Cortex-a72: 1.78 Ghz
- Ram : 8 Gb Ddr4 Sdram
- Flash Memory : 32 Gb
Expansion / Connectivity :
- Interfaces : 24 X Gigabit / 10gbit Lan Sfp+ 4 X 1gbit/10gbit/25gbit/50gbit Sfp56 1 X Usb-c Console 1 X Management 1 X Usb Type A
