The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices.

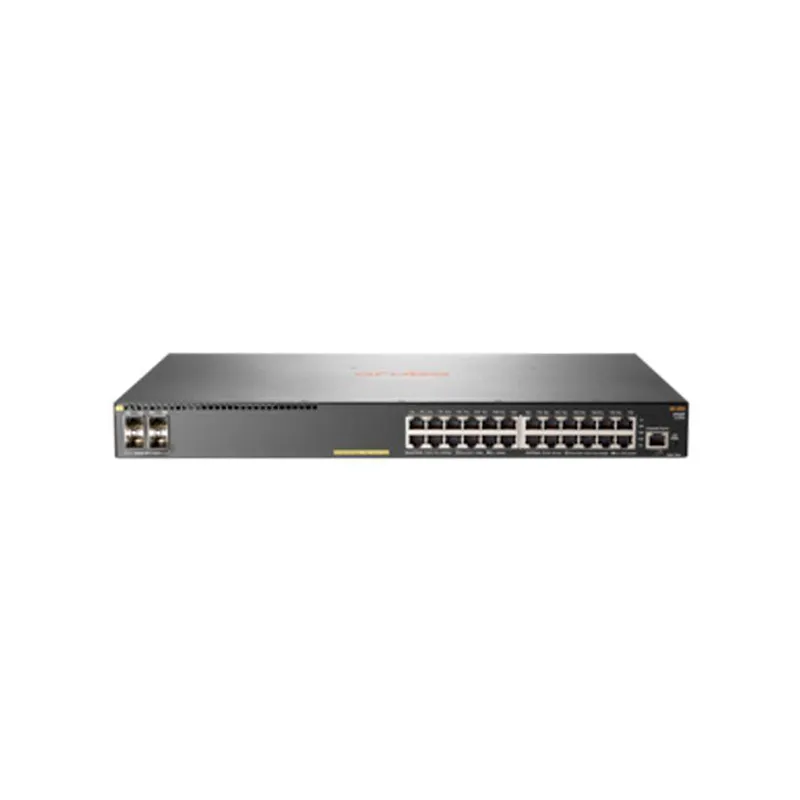

JL255A Overview
Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, Access OSPF, ACLs, Tunneled Node and IPv6. This JL255A has 24x 10/100/1000 PoE+ ports and 4x 1000/10G SFP+ transceiver slots for high speed connectivity. PoE+ is supported with a power budget of 370 Watts.
Quick Spec
Table 1 shows the quick spec.
| Product Code | JL255A |
| Type | Aruba 2930F 24G PoE+ 4SFP+ Switch |
| I/O ports and slots | ?? 24 RJ-45 autosensing 10/100/1000 PoE+ ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASETX: half or full?1000BASE-T: full only ?? 4 SFP+ 1/10GbE ports; PHY-less |
| Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Throughput | up to 95.2 Mp/s |
| Switching capacity | 128 Gb/s |
| PoE Available Power | 370 W |
| Dimensions | 4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in)
1U height |
Compare to Similar Items
Table 2 shows the comparison.
| Product Code | JL253A | JL254A | JL255A | JL256A |
| Type | Aruba 2930F 24G 4SFP+ Switch | Aruba 2930F 48G 4SFP+ Switch | Aruba 2930F 24G PoE+ 4SFP+ Switch | Aruba 2930F 48G PoE+ 4SFP+ Switch |
| I/O ports and slots | ?? 24 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full;?1000BASE-T: full only ?? 4 SFP+ 1/10GbE ports; PHY-less |
?? 48 RJ-45 autosensing 10/100/1000 ports?(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full?1000BASE-T: full only
?? 4 SFP+ 1/10GbE ports; PHY-less |
?? 24 RJ-45 autosensing 10/100/1000 PoE+ ports?(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+);?Duplex: 10BASE-T/100BASETX: half or full?1000BASE-T: full only
?? 4 SFP+ 1/10GbE ports; PHY-less |
?? 48 RJ-45 autosensing 10/100/1000 PoE+ ports?(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)?Duplex: 10BASE T/100BASETX: half or full?1000BASE-T: full only
?? 4 SFP+ 1/10GbE ports; PHY-less |
| Throughput | up to 95.2 Mp/s | up to 112.0 Mp/s | up to 95.2 Mp/s | up to 112.0 Mp/s |
| Switching capacity | 128 Gb/s | 176 Gb/s | 128 Gb/s | 176 Gb/s |
