Product SKUs

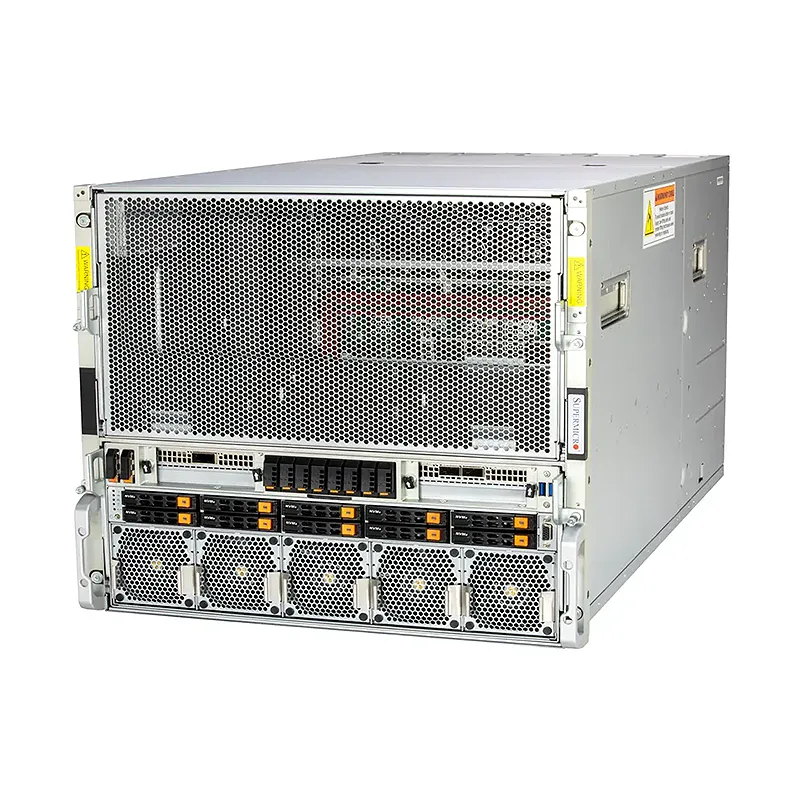

- SuperServerSYS-A22GA-NBRT
Motherboard
- Super X14DBG-DAP
Processor
- CPU
Dual Socket BR (LGA-7529)
Intel Xeon 6900 series processors with P-cores - Core Count
Up to 128C/256T; Up to 504MB Cache per CPU
GPU
- Max GPU Count
Up to 8 onboard GPUs
- Supported GPU
NVIDIA SXM: HGX B200 8-GPU (180GB)
- CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect
- GPU-GPU Interconnect
NVIDIA NVLink with NVSwitch
System Memory
- Memory
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
On-Board Devices
- Chipset
System on Chip
- Network Connectivity
2 RJ45 10GbE with Intel X710
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.0 ports(rear)
- Video
1 VGA port
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 64MB SPI Flash
Management
- Power configurations
Power-on mode for AC power recovery
ACPI Power Management
Chassis
- Form Factor
10U Rackmount
- Model
CSE-GP1001TS-R000NPF
Dimensions and Weight
- Height
17.2″ (438.8 mm)
- Width
17.6″ (449 mm)
- Depth
33.2″ (843.28 mm)
- Package
25.2″ (H) x 49.4″ (W) x 27.3″ (D)
- Weight
Gross Weight: 183 lbs (83.1 kg)
Net Weight: 122.7 lbs (55.64 kg) - Available Color
Silver
Front Panel
- LED
HDD activity
Network activity LEDs
System information (overheat/UID)
UID - Buttons
Power On/Off
UID/ Reset button
Expansion Slots
- PCI-Express (PCIe) Configuration
Option A 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 (in x16) FHHL slots
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 10 bays 10 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays
- M.2
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110/25110)
System Cooling
- Fans
19 counter-rotating 80x80x38mm Fan(s)
Power Supply
- 6x 5250W
6x 5250W Redundant (3 + 3) power supplies
Dimension (WxHxL)
106.5 x 82.1 x 245.3 mm
Input
5250W: 200-240Vac / 50-60Hz
+12V
Max: 125A / Min: 0A (200Vac-240Vac)
12V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
