Product SKUs

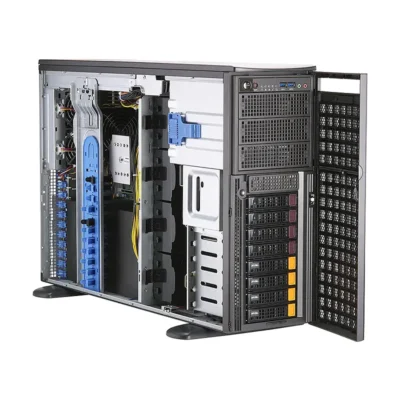

- SuperServerSYS-740GP-TNRBT
Motherboard
- Super X12DPG-QBT6
Processor
- CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel Xeon Scalable processors - Core Count
Up to 40C/80T; Up to 60MB Cache per CPU
GPU
- Max GPU Count
Up to 4 double-width GPUs
- CPU-GPU Interconnect
PCIe 4.0 x16 CPU-to-GPU Interconnect
- GPU-GPU Interconnect
PCIe
System Memory
- Memory
Slot Count: 16 DIMM slots
Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel Optane persistent memory 200 series - Memory Voltage
1.2V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- Chipset
Intel C621A
- Network Connectivity
2 RJ45 10GbE with Broadcom BCM57416
Input / Output
- Video
1 VGA port
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
Power-on mode for AC power recovery
ACPI Power Management
Chassis
- Form Factor
Full-Tower
- Model
CSE-747BTS-R2K20BP
Dimensions and Weight
- Height
18.1″ (460 mm)
- Width
7″ (178 mm)
- Depth
26.5″ (673 mm)
- Package
12.7″ (H) x 27″ (W) x 37.5″ (D)
- Weight
Gross Weight: 57 lbs (25.85 kg)
Net Weight: 52.9 lbs (24 kg) - Available Color
black
Front Panel
- LED
HDD activity
Network activity
Power On
System Overheat / Fan Fail LED - Buttons
Power On/Off
System Reset
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 4 PCIe 4.0 x16 FHFL slots 2 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 8 bays 4 front hot-swap 3.5″ SAS/SATA drive bays 4 front hot-swap 3.5″ NVMe/SAS/SATA drive bays
- M.2
2 M.2 NVMe/SATA slots (M-key)
System Cooling
- Fans
4 heavy duty fans with optimal fan speed control
Power Supply
- 1x 2200W
1x 2200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)
76 x 40 x 336 mm
Total Output Power
(for CCC only)
(for UL/cUL use only)
Input
1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
1980W: 220-230Vac / 50-60Hz
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
2200W: 230-240Vac
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 100A / Min: 0A (100Vdc-127Vdc)
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SB
Max: 1A / Min: 0A
Output Type
Backplanes (gold finger)
