Product SKUs

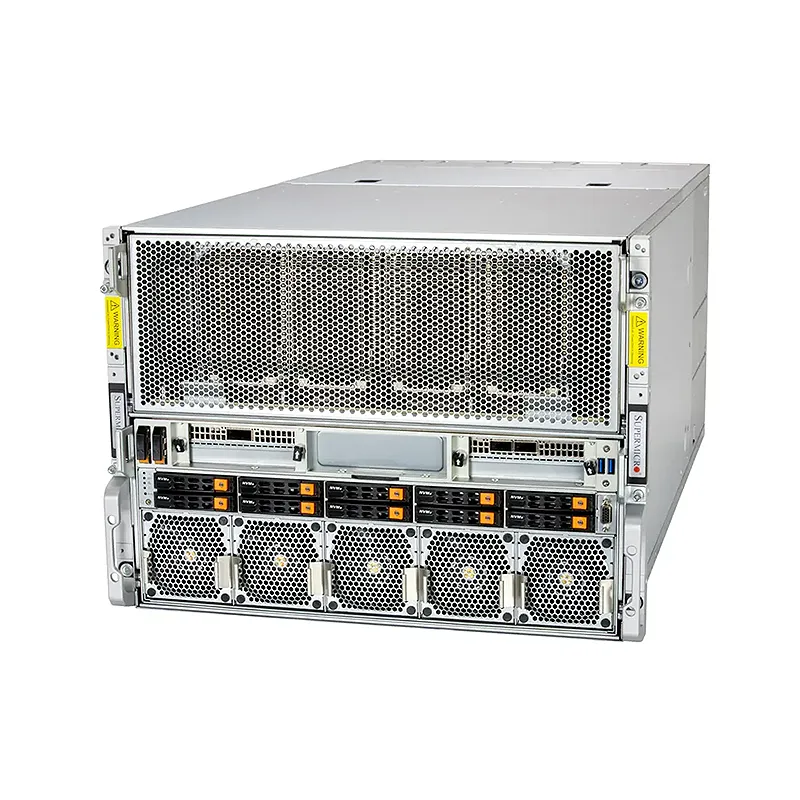

- A+ ServerAS -8126GS-TNMR
Motherboard
- Super H14DSG-OD
Processor
- CPU
Dual processor(s)
AMD EPYC 9005/9004 Series Processors
GPU
- Max GPU Count
Up to 8 onboard GPUs
- Supported GPU
AMD: Instinct MI300X Accelerators
- CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect
- GPU-GPU Interconnect
AMD Infinity Fabric Link
System Memory
- Memory
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM
On-Board Devices
- Chipset
System on Chip
Input / Output
- Video
1 VGA port
System BIOS
- BIOS Type
AMI 64MB SPI Flash EEPROM
Management
- Power configurations
Power-on mode for AC power recovery
ACPI Power Management
Chassis
- Form Factor
8U Rackmount
- Model
CSE-GP805TS-R000NPF
Dimensions and Weight
- Height
13.8″ (356 mm)
- Width
17.6″ (447 mm)
- Depth
33.2″ (843 mm)
- Package
27.6″ (H) x 51″ (W) x 29.5″ (D)
- Weight
Gross Weight: 158.73 lbs (72 kg)
Net Weight: 105.82 lbs (48 kg) - Available Color
Silver
Front Panel
- LED
HDD activity
Network activity LEDs
System information (overheat/UID)
UID - Buttons
Power On/Off
UID/ Reset button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots
- M.2
2 M.2 PCIe 3.0 x4 NVMe slots (M-key 22110(default))
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 10 bays 2 front hot-swap 2.5″ SATA drive bays 8 front hot-swap 2.5″ NVMe drive bays
Option A: Total 8 bays 8 front hot-swap E1.S NVMe drive bays - M.2
2 M.2 NVMe slots (M-key)
System Cooling
- Fans
Power Supply
- 6x 5250W
6x 5250W Redundant Titanium (certification pending) Level (96%) power supplies
Dimension (WxHxL)
106.5 x 82.1 x 245.3 mm
Input
5250W: 200-240Vac / 50-60Hz
+12V
Max: 125A / Min: 0A (200Vac-240Vac)
12V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
Certification
Titanium (certification pending) Level
[
