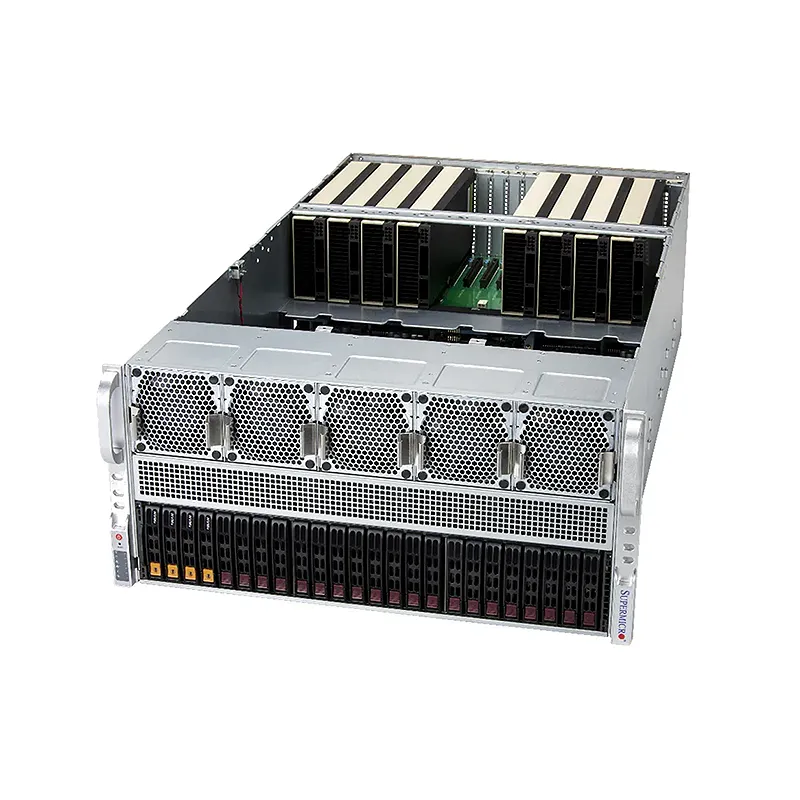

GPU A+ Server AS-5126GS-TNRT

* NOTE: Image may not exactly match the product

GPU A+ Server AS-5126GS-TNRT

The GPU A Server AS-5126GS-TNRT is a high-performance 2U rackmount server engineered for AI, machine learning, and GPU-intensive workloads. This powerhouse supports up to 8 dual-slot GPUs with optimized thermal design and redundant cooling systems to maintain peak performance under heavy computational loads. Built on a robust dual-socket platform, it delivers exceptional processing power while featuring hot-swappable drive bays, redundant power supplies, and enterprise-grade reliability. The server’s advanced airflow architecture and tool-less GPU installation make it ideal for data centers requiring maximum compute density, reduced deployment time, and 24/7 operational reliability. Its scalable design and comprehensive remote management capabilities position it as the optimal solution for organizations demanding cutting-edge GPU acceleration for deep learning, scientific computing, and high-performance computing applications.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

Products StatusNew
Form Factor5U Rackmount
Application3D Rendering
MemorySlot Count: 24 DIMM slotsMax Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMMView Memory Options
Drive Form Factors2.5"

Product SKUs

  • A+ ServerAS -5126GS-TNRT

Motherboard

  • Super H14DSG-O-CPU

Processor

  • CPU
    Dual processor(s)
    AMD EPYC 9005/9004 Series Processors
  • Core Count
    Up to 192C/384T

GPU

  • Max GPU Count
    Up to 8 double-width GPUs
  • Supported GPU
    NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S
  • CPU-GPU Interconnect
    Direct Attached
  • GPU-GPU Interconnect
    NVIDIA NVLink Bridge (optional), AMD Infinity Fabric Link (optional)

System Memory

  • Memory
    Slot Count: 24 DIMM slots
    Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM

On-Board Devices

  • SATA
    SATA (6Gbps)
  • Chipset
    System on Chip
  • Network Connectivity
    2 RJ45 10GbE

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
    2 RJ45 10 GBASE-T LAN ports
  • USB
    2 ports(rear)
  • Video
    1 VGA port

System BIOS

  • BIOS Type
    AMI 64MB SPI Flash EEPROM

Management

  • Power configurations
    Power-on mode for AC power recovery
    ACPI Power Management

Chassis

  • Form Factor
    5U Rackmount
  • Model
    CSE-528G2TS-R000NDP

Dimensions and Weight

  • Height
    8.75″ (222.5 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    29″ (737 mm)
  • Package
    17.32″ (H) x 28.34″ (W) x 42.51″ (D)
  • Weight
    Gross Weight: 100 lbs (45.3 kg)
    Net Weight: 65.5 lbs (29.7 kg)
  • Available Color
    Black Front & Silver Body

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 9 PCIe 5.0 x16 FHFL slots

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 6 bays 2 front hot-swap 2.5″ SATA drive bays 4 front hot-swap 2.5″ NVMe drive bays
  • M.2
    1 M.2 PCIe 3.0 x4 NVMe slot (M-key)

System Cooling

  • Fans
    10 heavy duty fans with optimal fan speed control

Power Supply

  • 6x 2700W
    6x 2700W Redundant (3 + 3) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 203 mm
    Input
    2700W: 200-240Vac
    2700W: 200-240Vac / 50-60Hz
    2700W: 240-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 225A / Min: 0A (200Vac-240Vac)
    Max: 225A / Min: 0A (240Vdc-240Vdc)
    12V SB
    Max: 3.5A / Min: 0A
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Products Status

New
Form Factor

5U Rackmount
Application

3D Rendering
Memory

Slot Count: 24 DIMM slotsMax Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMMView Memory Options
Drive Form Factors

2.5"
Chipset

System on Chip
Generation

H14
CPU

Dual processor(s)AMD EPYC 9005/9004 Series Processors
Total PCI-E Slots

10
CPU Type

AMD EPYC 9005/9004 Series Processors
Drives

6
Max GPU

8
Model

AS -5126GS-TNRT
Fans

10 heavy duty fans with optimal fan speed control
BIOS Type

AMI 64MB SPI Flash EEPROM
Depth

29" (737 mm)
Height

8.75" (222.5 mm)
Width

17.2" (437 mm)
Package

17.32" (H) x 28.34" (W) x 42.51" (D)
PCI-Express (PCIe) Configuration

Default
Weight

Gross Weight: 100 lbs (45.3 kg)Net Weight: 65.5 lbs (29.7 kg)
Drive Bays Configuration

Default: Total 6 bays
Video

1 VGA port
Network Connectivity

2 RJ45 10GbEView AIOM OptionsView AOC Options
Note

Supports up to 500W TDP CPUs
M.2

1 M.2 PCIe 3.0 x4 NVMe slot (M-key)
LAN

1 RJ45 1 GbE Dedicated BMC LAN port2 RJ45 10 GBASE-T LAN ports
USB

2 ports(rear)
Core Count

Up to 192C/384T
Max GPU Count

Up to 8 double-width GPUs
CPU-GPU Interconnect

Direct Attached
SATA

SATA (6Gbps)
Supported GPUs

NVIDIA PCIe: H100 NVL, L40S, H200 NVL (141GB)
GPU-GPU Interconnect

AMD Infinity Fabric Link (optional), NVIDIA NVLink Bridge (optional)
