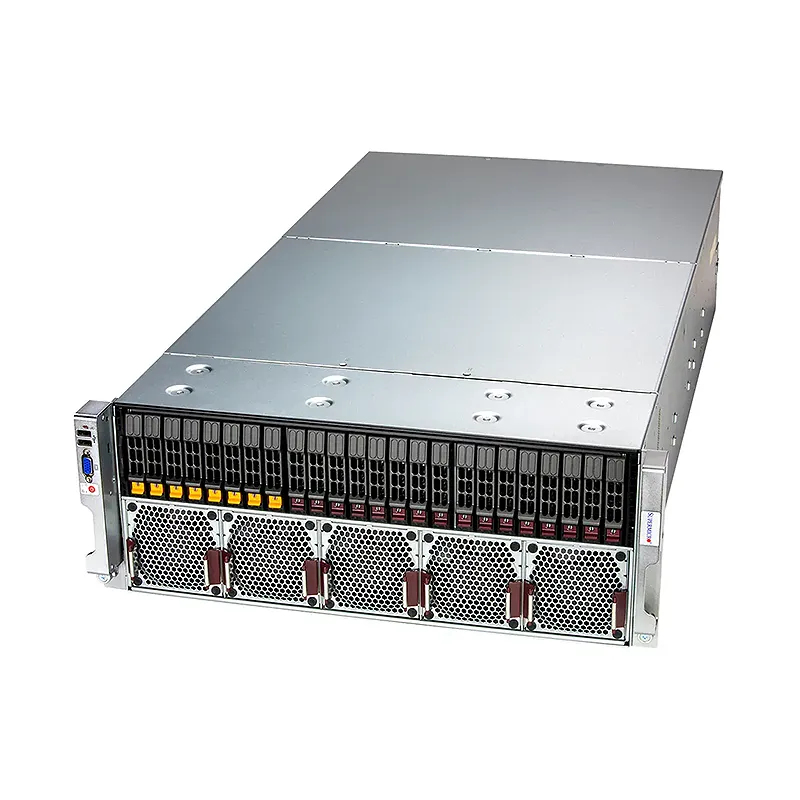

GPU A+ Server AS-4145GH-TNMR

The GPU A Server AS-4145GH-TNMR is a high-performance 4U rackmount server engineered for intensive GPU computing workloads. This powerhouse accommodates up to 8 full-height, full-length GPU cards with optimal cooling and power delivery, making it ideal for AI training, machine learning, scientific computing, and cryptocurrency mining operations.

**Key Features:**
– Supports dual Intel Xeon Scalable processors for maximum computational power
– 8 PCIe 4.0 x16 GPU slots with dedicated cooling channels
– Up to 4TB DDR4 memory capacity across 32 DIMM slots
– Redundant 3000W 80+ Titanium power supplies
– Advanced thermal management with hot-swappable fans
– Multiple storage options including NVMe and SATA drives

**Benefits:**
– Exceptional parallel processing capabilities for complex workloads
– Enterprise-grade reliability with redundant components
– Scalable architecture supporting future GPU upgrades
– Energy-efficient design reducing operational costs
– Tool-less maintenance for minimal downtime

**Unique Selling Points:**
– Industry-leading GPU density in a single 4U chassis
– Optimized airflow design preventing thermal throttling
– Flexible configuration options for diverse applications
– Professional-grade build quality with comprehensive warranty support

This server delivers unmatched performance for organizations requiring serious GPU computing power in a space-efficient, enterprise-ready platform.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor4U
Products StatusNew
MemorySlot Count: Onboard MemoryMax Memory: Up to 512GB non-ECC HBM3
Drive Form Factors2.5"

Product SKUs

  • A+ ServerAS -4145GH-TNMR

Motherboard

  • Super H13QSH

Processor

  • CPU
    Quad Socket SH5
    AMD Instinct MI300A Accelerated Processing Units (APUs)

GPU

  • Max GPU Count
    4 onboard GPUs
  • Supported GPU
    AMD: Instinct MI300A APU
  • GPU-GPU Interconnect
    AMD Infinity Fabric Link

System Memory

  • Memory
    Slot Count: Onboard Memory
    Max Memory: Up to 512GB non-ECC HBM3

On-Board Devices

  • Chipset
    AMD SH5
  • Network Connectivity
    Via AIOM

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.0 ports(rear)
    2 USB 2.0 ports(front)
  • Video
    1 DisplayPort port
  • Serial
    1 COM port(Rear)

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    Power-on mode for AC power recovery
    ACPI Power Management

Chassis

  • Form Factor
    4U Rackmount
  • Model
    CSE-418H2TS-R5K4AWP

Dimensions and Weight

  • Height
    7″ (177 mm)
  • Width
    17.3″ (438.4 mm)
  • Depth
    33.4″ (848.7 mm)
  • Package
    17.12″ (H) x 28.34″ (W) x 42.5″ (D)
  • Weight
    Gross Weight: 132.27 lbs (60 kg)
    Net Weight: 77.16 lbs (35 kg)
  • Available Color
    Black

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 4 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x8 FHHL slots
    Option A* 4 PCIe 5.0 x16 FHHL slots 6 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
    Option B* 6 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
    Option C* 14 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
    Option D* 4 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
    (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 8 bays 8 front fixed 2.5″ NVMe drive bays
    Option A: Total 16 bays 16 front fixed 2.5″ NVMe drive bays
    Option B: Total 24 bays 24 front fixed 2.5″ SAS*/SATA* drive bays
    (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2
    2 M.2 NVMe slots (M-key 2280/22110)

System Cooling

  • Fans
    10 Heavy duty counter-rotating 8cm Fan(s)

Power Supply

  • 4x 2700W
    4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 203 mm
    Input
    2700W: 200-240Vac
    2700W: 200-240Vac / 50-60Hz
    2700W: 240-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 225A / Min: 0A (200Vac-240Vac)
    Max: 225A / Min: 0A (240Vdc-240Vdc)
    12V SB
    Max: 3.5A / Min: 0A
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro

Form Factor

4U

Products Status

New

Memory

Slot Count: Onboard MemoryMax Memory: Up to 512GB non-ECC HBM3

Chipset

AMD SH5

CPU

Quad Socket SH5AMD Instinct MI300A Accelerated Processing Units (APUs)

Total PCI-E Slots

16

Fans

10 Heavy duty counter-rotating 8cm Fan(s)

Depth

33.4" (848.7 mm)

Height

7" (177 mm)

Width

17.3" (438.4 mm)

Package

17.12" (H) x 28.34" (W) x 42.5" (D)

PCI-Express (PCIe) Configuration

DefaultOption A*Option B*Option C*Option D*(*Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options

Weight

Gross Weight: 132.27 lbs (60 kg)Net Weight: 77.16 lbs (35 kg)

Drive Bays Configuration

Default: Total 8 baysOption A: Total 16 baysOption B: Total 24 bays(*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

Video

1 DisplayPort port

Network Connectivity

Via AIOMView AIOM OptionsView AOC Options

BIOS Type

AMI 32MB SPI Flash EEPROM

Note

Supports up to 760W TDP CPUs (Air Cooled)

Available Color

Black

M.2

2 M.2 NVMe slots (M-key)

LAN

1 RJ45 1 GbE Dedicated BMC LAN port

USB

2 USB 3.0 ports(rear)

Application

Artificial Intelligence (AI), Cloud Solution Provider (CSP), High Performance Computing (HPC), Large Language Model (LLM), Research Lab

Max GPU Count

Up to 4 onboard GPUs

Serial

1 COM port(Rear)

Supported GPUs

AMD: Instinct MI300A APU

GPU-GPU Interconnect

AMD Infinity Fabric Link

ROHS

RoHS Compliant
