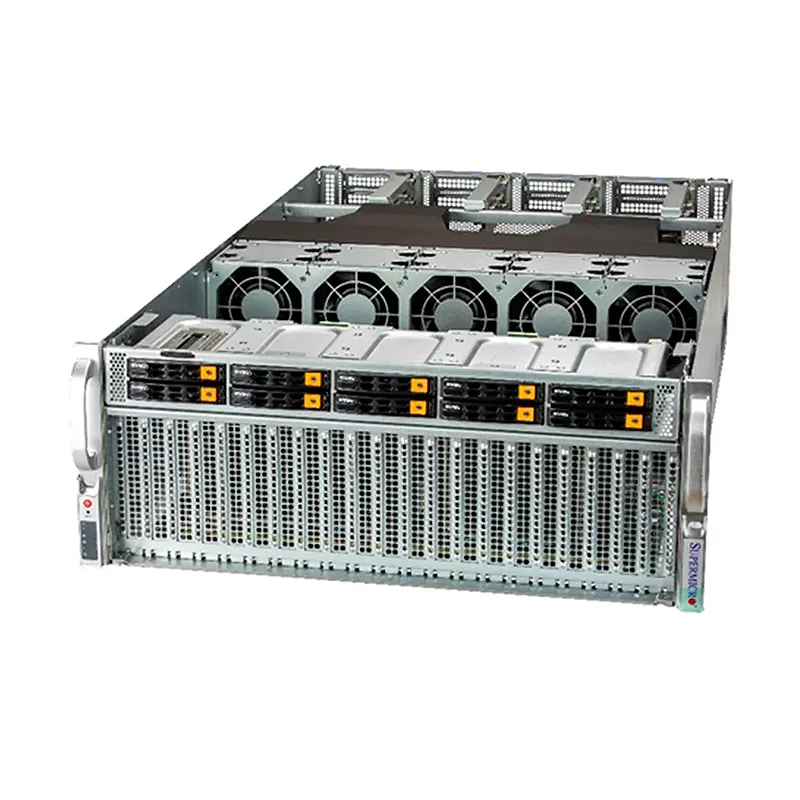

GPU A+ Server AS-4124GQ-TNMI

The GPU A Server AS-4124GQ-TNMI is a high-performance 4U rackmount server engineered for intensive AI, machine learning, and high-performance computing workloads. This powerhouse supports up to 10 dual-slot GPUs with exceptional cooling architecture, delivering maximum computational density for data centers and research facilities.

**Key Features:**
– Accommodates up to 10 full-height, dual-slot GPUs (NVIDIA Tesla, RTX, or AMD Instinct)
– Dual Intel Xeon Scalable processor support for robust CPU performance
– 24 DIMM slots supporting up to 6TB DDR4 memory
– Advanced thermal management with redundant cooling fans
– Multiple PCIe 4.0 slots for expansion flexibility
– Hot-swappable drive bays for storage scalability

**Primary Benefits:**
– Accelerates AI training and inference by 10-100x compared to CPU-only systems
– Reduces time-to-insight for complex computational tasks
– Maximizes ROI through high-density GPU deployment
– Ensures 24/7 reliability with enterprise-grade components
– Scales seamlessly as computational demands grow

**Unique Selling Points:**
– Industry-leading GPU density in 4U form factor
– Optimized airflow design prevents thermal throttling
– Tool-less GPU installation and maintenance
– Compatible with major AI frameworks and HPC applications
– Backed by comprehensive warranty and support services

Ideal for organizations requiring massive parallel processing power for deep learning, scientific simulation, cryptocurrency mining, or rendering applications.

Quote1 Piece(MOQ)

Bulk Order Discounts Available

BrandSupermicro
Products StatusNew
Product Group4U/5U Universal GPU systems
GenerationH12
ApplicationHigh Performance Computing;AI/Deep Learning Training

Product SKUs

  • A+ ServerAS -4124GQ-TNMI

Motherboard

  • Super H12DGQ-NT6

Processor

  • CPU
    Dual Socket SP3
    AMD EPYC 7003 Series
  • Core Count
    Up to 128C/256T

System Memory

  • Memory
    Slot Count: 32 DIMM slots/8 Channels
    Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

On-Board Devices

  • Chipset
    System on Chip
  • Network Connectivity
    Via AIOM
  • IPMI
    Support for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.0 ports(front)
  • Video
    1 VGA port(Front)
  • Serial
    1 COM port

System BIOS

  • BIOS Type
    AMI 256MB SPI Flash ROM

Chassis

  • Form Factor
    4U Rackmount
  • Model
    CSE-458GTS-R3K06P

Dimensions and Weight

  • Height
    7″ (175.6 mm)
  • Width
    17.67″ (449 mm)
  • Depth
    32.79″ (833 mm)
  • Package
    14.57″ (H) x 27.55″ (W) x 49.6″ (D)
  • Weight
    Gross Weight: 140 lbs (64 kg)
    Net Weight: 105 lbs (48 kg)
  • Available Color
    Black Front & Silver Body

Front Panel

  • LED
    Hard drive activity LED
    Network activity LEDs
    Power status LED
    System Overheat & Power Fail LED
  • Buttons
    Power On/Off button
    System Reset button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 8 PCIe 4.0 x16 via PLX slots
    Option A* 8 PCIe 4.0 x16 via PLX slots 2 PCIe 4.0 x16 LP slots
    (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 10 bays 10 front hot-swap 2.5″ NVMe/SAS/SATA drive bays

System Cooling

  • Fans
    5 x hot-swap 11.5K RPM heavy duty Fan(s)

Power Supply

  • 4x 3000W
    4x 3000W Redundant (2 + 2) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    106.5 x 82.1 x 245.5 mm
    Input
    3000W: 0240Vdc / 50-60Hz (for CQC only)
    2880W: 200-207Vac / 50-60Hz
    3000W: 207-240Vac / 50-60Hz
    3000W:
    DC Input
    +12V
    Max: 91.66A / Min: 0A (200Vac-240Vac)
    12V SB
    Max: 3A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro

Products Status

New

Application

High Performance Computing;AI/Deep Learning Training

Total PCI-E Slots

32

Network Connectivity

Via AIOMView AIOM OptionsView AOC Options

USB

2 USB 3.0 ports(front)

Chipset

System on Chip

Depth

32.79" (833 mm)

Drive Bays Configuration

Default: Total 10 bays

Fans

5 x hot-swap 11.5K RPM heavy duty Fan(s)

CPU

Dual Socket SP3AMD EPYC 7003 Series

LED

Hard drive activity LEDNetwork activity LEDsPower status LEDSystem Overheat & Power Fail LED

Buttons

Power On/Off buttonSystem Reset button

LAN

1 RJ45 1 GbE Dedicated BMC LAN port

Memory

Slot Count: 32 DIMM slots/8 ChannelsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options

Available Color

Black front & silver body

Height

7" (175.6 mm)

Width

17.67" (449 mm)

PCI-Express (PCIe) Configuration

DefaultOption A*(*Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options

Serial

1 COM port

ROHS

RoHS Compliant

IPMI

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

BIOS Type

AMI 256MB SPI Flash ROM

Video

1 VGA port(Front)

Core Count

Up to 128C/256T

Package

14.57" (H) x 27.55" (W) x 49.6" (D)

Note

Supports up to 280W TDP CPUs (Air Cooled)

Weight

Gross Weight: 140 lbs (64 kg)Net Weight: 105 lbs (48 kg)
