Product SKUs

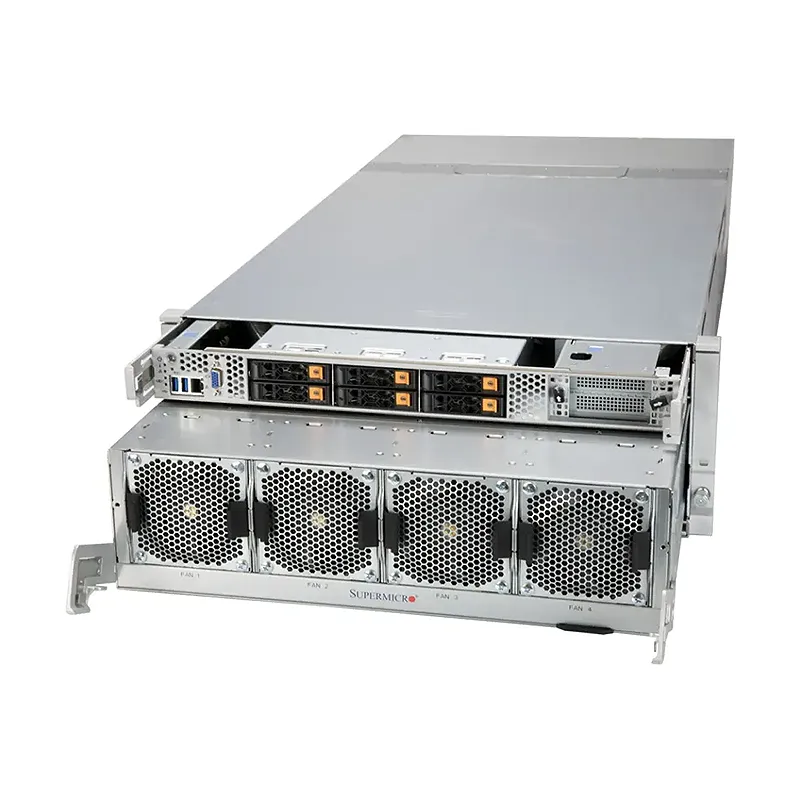

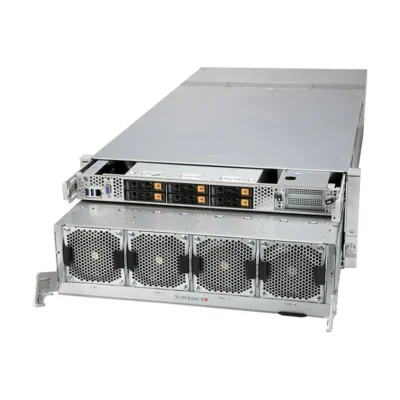

- A+ ServerAS -4124GO-NART
Motherboard
- Super H12DGO-6
Processor
- CPU
Dual Socket SP3
AMD EPYC 7002/7003 Series Processors
System Memory
- Memory
Slot Count: 32 DIMM slots
On-Board Devices
- SATA
SATA (6Gbps)
- Chipset
System on Chip
- Network Connectivity
Ethernet
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
2 USB 3.0 ports(front)
- Video
1 VGA port(Front)
System BIOS
- BIOS Type
AMI 256MB SPI Flash ROM
Chassis
- Form Factor
4U Rackmount
- Model
CSE-438G
Dimensions and Weight
- Height
6.9″ (174 mm)
- Width
17.6″ (446 mm)
- Depth
35.4″ (900 mm)
- Package
29.5″ (H) x 27.4″ (W) x 44.9″ (D)
- Weight
Gross Weight: 225 lbs (102.1 kg)
Net Weight: 166 lbs (75.3 kg) - Available Color
Black Front & Silver Body
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x8 LP slot 8 PCIe 4.0 x16 via PCI-E switch slots
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 6 bays 6 front hot-swap 2.5″ NVMe drive bays
Option A: Total 10 bays 6 front hot-swap 2.5″ NVMe drive bays 4 rear hot-swap 2.5″ NVMe* drive bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
System Cooling
- Fans
4 hot-swap 11.5K RPM heavy duty Fan(s)
Power Supply
- 4x 2200W
4x 2200W Redundant (3 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
106.5 x 82.4 x 203.5 mm
Input
1200W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
2000W: 180-220Vac (UL/CUL only)
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 200-230Vac / 50-60Hz
1980W: 220-230Vac
2200W: 220-240Vac (UL/cUL only)
2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
2090W: 230-240Vac
2090W: 230-240Vdc / 50-60Hz (for CQC only)
2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12V
Max: 41.67A (100Vac-240Vac)
Max: 10A / Min: 9.5A (200Vac-220Vac) (CQC only)
Max: 10A / Min: 9.8A (220Vac-230Vac) (CQC only)
Max: 10A / Min: 9.8A (230Vdc-240Vdc) (CQC only)
Max: 10A / Min: 9.8A (230Vac-240Vac) (CQC only)
12V SB
Max: 3A
Output Type
Backplanes (connector)
