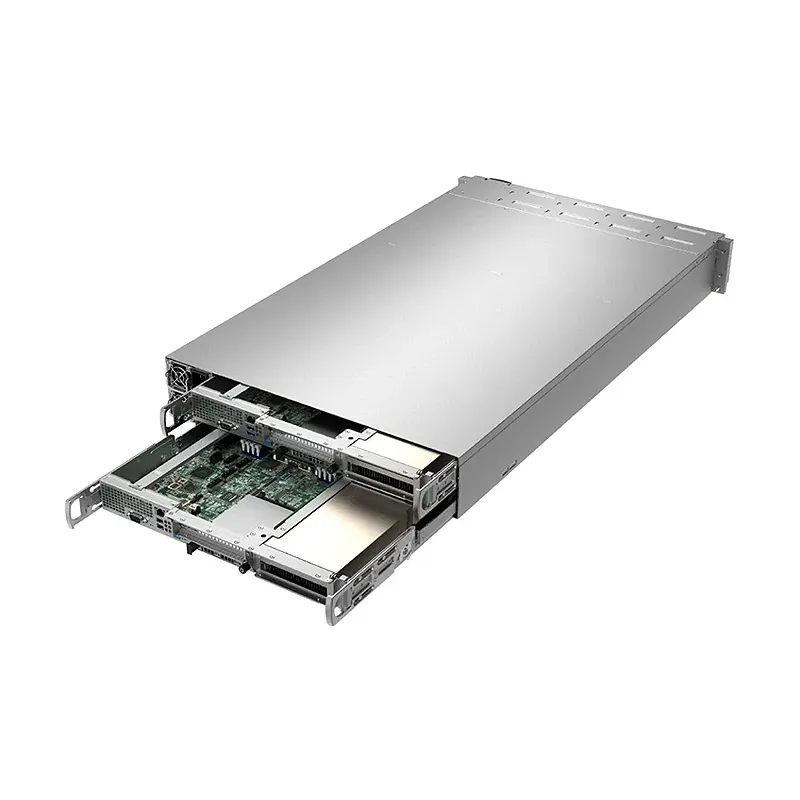

GPU A+ Server AS-2114GT-DNR

* NOTE: Image may not exactly match the product

GPU A+ Server AS-2114GT-DNR

The GPU A Server AS-2114GT-DNR is a high-performance 2U rackmount server engineered for AI, machine learning, and GPU-intensive workloads. This powerhouse supports up to 10 dual-slot GPUs with optimized thermal design and redundant cooling systems, delivering exceptional computational density for data centers. Key features include dual Intel Xeon Scalable processors, up to 4TB DDR4 memory capacity, flexible PCIe expansion slots, and enterprise-grade reliability with hot-swappable components. The server excels in deep learning training, scientific computing, cryptocurrency mining, and rendering applications, offering superior price-to-performance ratio with reduced deployment footprint. Its tool-less chassis design enables rapid maintenance, while comprehensive management interfaces ensure seamless integration into existing infrastructure, making it the ideal choice for organizations requiring maximum GPU acceleration in a compact, enterprise-ready platform.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor2U
Products StatusNew
MemorySlot Count: 8 DIMM slotsMax Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Drive Form Factors2.5"

Product SKUs

  • A+ ServerAS -2114GT-DNR

Motherboard

  • Super H12SSG-AN6

Processor (per Node)

  • CPU
    Single Socket SP3
    AMD EPYC 7002/7003 Series Processors

GPU (per Node)

  • Max GPU Count
    Up to 2 double-width or 4 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: L40, RTX A6000, RTX A4500, RTX A4000, A40, A16, A2, A100, A10
    AMD PCIe: Instinct MI210, Instinct MI100

System Memory (per Node)

  • Memory
    Slot Count: 8 DIMM slots
    Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

On-Board Devices (per Node)

  • SATA
    SATA (6Gbps)
  • Chipset
    System on Chip
  • Network Connectivity
    Ethernet
    InfiniBand
  • IPMI
    Support for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.0 ports(rear)
  • Video
    1 VGA port(Rear)
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 256MB SPI Flash ROM

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-227GTS-R2K63P

Dimensions and Weight

  • Height
    3.47″ (88 mm)
  • Width
    17.6″ (447 mm)
  • Depth
    29.9″ (760 mm)
  • Package
    9.44″ (H) x 23.62″ (W) x 43.3″ (D)
  • Weight
    Gross Weight: 60 lbs (27.21 kg)
    Net Weight: 55 lbs (24.94 kg)
  • Available Color
    Black Front & Silver Body

Front Panel

  • LED
    Hard drive activity LED
    Information LED as manual description
    Network activity LEDs
    Power status LED
  • Buttons
    Power On/Off button
    System UID button/LED

Expansion Slots (per Node)

  • PCI-Express (PCIe) Configuration
    Default 4 PCIe 4.0 x16 INTERNAL slots 1 PCIe 4.0 x16 FHHL slot 1 PCIe 4.0 x16 FHFL slot 1 PCIe 4.0 x8 AIOM slot (OCP 3.0 compatible)
  • M.2
    2 M.2 PCIe 4.0 x4 slots (M-key 2280/22110)

Drive Bays / Storage (per Node)

  • Drive Bays Configuration
    Default: Total 2 bays 2 front hot-swap 2.5″ NVMe drive bays
  • M.2

System Cooling

  • Fans
    4 Hot-swap heavy duty PWM 80mm Fan(s)

Power Supply

  • 2x 2600W
    2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    73.5 x 40 x 265 mm
    Input
    2600W: 200-240Vac
    2600W: 200-240Vdc (For CQC Only)
    2600W: 200-240Vac / 50-60Hz
    2600W: 200-240Vdc / 50-60Hz (for CQC only)
    +12V
    Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
    Max: 216A / Min: 0A (200Vac-240Vac)
    12V SB
    Max: 3.5A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Form Factor

2U
Products Status

New
Memory

Slot Count: 8 DIMM slotsMax Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Chipset

System on Chip
CPU

Single Socket SP3AMD EPYC 7002/7003 Series Processors
Total PCI-E Slots

3
Fans

4 Hot-swap heavy duty PWM 80mm Fan(s)
Depth

29.9" (760 mm)
Height

3.47" (88 mm)
Width

17.6" (447 mm)
Package

9.44" (H) x 23.62" (W) x 43.3" (D)
PCI-Express (PCIe) Configuration

Default
Weight

Gross Weight: 60 lbs (27.21 kg)Net Weight: 55 lbs (24.94 kg)
Drive Bays Configuration

Default: Total 2 bays
Video

1 VGA port(Rear)
Network Connectivity

EthernetInfiniBandView AIOM OptionsView AOC Options
BIOS Type

AMI 256MB SPI Flash ROM
Note

Supports up to 280W TDP CPUs (Air Cooled)
Available Color

Black front & silver body
Buttons

Power On/Off buttonSystem UID button/LED
M.2

2 M.2 PCIe 4.0 x4 slots (M-key 2280/22110)
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
USB

2 USB 3.0 ports(rear)
LED

Hard drive activity LEDInformation LED as manual descriptionNetwork activity LEDsPower status LED
Application

AI Inference and Machine Learning, Cloud Gaming, Industrial Automation, Retail, Media/Video Streaming, Smart Medical Expert Systems
Max GPU Count

Up to 2 double-width or 4 single-width GPUs
SATA

SATA (6Gbps)
TPM

1 TPM Header
Supported GPUs

AMD PCIe: Instinct MI210, Instinct MI100~ NVIDIA PCIe: L40, RTX A6000, RTX A4500, RTX A4000, A40, A16, A2, A100, A10
ROHS

RoHS Compliant
IPMI

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
