| Brand | xfusion |
|---|---|
| Form Factor | 2U |
| Operating Temperature | 5C to 45C (41F to 113F), compliant with ASHRAE Classes A3 and A4 |
| Power Supply Units | hot-swappable PSUs, with support for 1+1 redundancy. The following PSUs are supported: 2,000W AC Platinum PSUs, 1,500W AC Platinum PSUs, 900W AC Platinum PSUs, 1,200W DC PSUs |
| Internal Storage | Supports the following hard drive configuration options: 8 x 2.5-inch SAS/SATA HDDs on the front, 25 x 2.5-inch SAS/SATA HDDs on the front, 24 x 2.5-inch SAS/SATA HDDs on the front, 8 x 2.5-inch NVMe SSDs and 16 x 2.5-inch SAS/SATA HDDs on the front, 24 x 2.5-inch NVMe SSDs, Supports flash storage: 2 M.2 SSDs |
| PCIe Expansion | Up to 11 PCIe 3.0 slots |
| Management | BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management. |
| Processors | 2 or 4 1st Generation Intel Xeon Scalable processors (5100/6100/8100 series), up to 205 W, 2 or 4 2nd Generation Intel Xeon Scalable processors (5200/6200/8200 series), up to 205 W |
| RAID Support | Supports RAID 0, 1, 5, 6, 10, 50, or 60, Supports a supercapacitor for cache power-off protection, Supports functions such as RAID level migration, drive roaming |
| Memory | 48 DDR4 DIMM slots, 2,933 MT/s; up to 24 Intel Optane PMem modules (100 series), 2666 MT/s |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Model | FusionServer 2488H V5 |
| Dimensions (H x W x D) | 86.1 mm (2U) x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) |
| LOM Network Ports | 2 x GE + 2 x 10 GE ports |

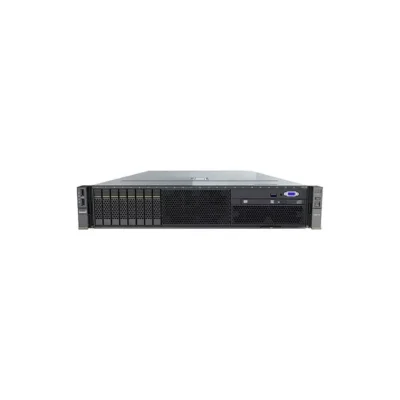

* NOTE: Image may not exactly match the product
FusionServer 2488H V5 Rack Server
The FusionServer 2488H V5 is a high-performance 2U rack server engineered for demanding enterprise workloads and data center environments. This powerhouse delivers exceptional computing density with dual Intel Xeon Scalable processor support, accommodating up to 56 cores and 3TB of DDR4 memory for intensive applications like virtualization, databases, and high-performance computing.
Key features include 25 hot-swappable drive bays supporting flexible storage configurations, redundant power supplies for maximum uptime, and advanced thermal management ensuring optimal performance under heavy loads. The server offers extensive I/O expansion capabilities with multiple PCIe slots and integrated network controllers for seamless connectivity.
Built with enterprise-grade reliability, the 2488H V5 features comprehensive hardware monitoring, remote management capabilities, and tool-free maintenance design that reduces operational costs. Its space-efficient 2U form factor maximizes data center real estate while delivering superior performance-per-watt efficiency.
The server excels in virtualized environments, cloud computing, big data analytics, and mission-critical applications where reliability, scalability, and performance are paramount. With robust security features and industry-standard compliance, it provides the foundation for modern digital infrastructure demanding both power and dependability.
Quote1 Piece(MOQ)
Bulk Order Discounts Available
| Brand | xfusion |
|---|---|
| Form Factor | 2U |
| Operating Temperature | 5C to 45C (41F to 113F), compliant with ASHRAE Classes A3 and A4 |
| Power Supply Units | hot-swappable PSUs, with support for 1+1 redundancy. The following PSUs are supported: 2,000W AC Platinum PSUs, 1,500W AC Platinum PSUs, 900W AC Platinum PSUs, 1,200W DC PSUs |
| Internal Storage | Supports the following hard drive configuration options: 8 x 2.5-inch SAS/SATA HDDs on the front, 25 x 2.5-inch SAS/SATA HDDs on the front, 24 x 2.5-inch SAS/SATA HDDs on the front, 8 x 2.5-inch NVMe SSDs and 16 x 2.5-inch SAS/SATA HDDs on the front, 24 x 2.5-inch NVMe SSDs, Supports flash storage: 2 M.2 SSDs |
