| Brand | xfusion |
|---|---|
| Form Factor | 2U |
| Products Status | New |
| Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel Optane PMem modules (100 series), 2666 MT/s |
| Model | FusionServer 2288H V5 |
| Dimensions (H x W x D) | Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.), Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
| Management | BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management |
| PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
| Operating Temperature | 5oC to 45oC (41oF to 113oF), and ASHRAE A3 and A4 compliant |
| Other Features | 2-socket rack server |
| Processors | 1 or 2 1st Generation Intel Xeon Scalable processors (3100/4100/5100/6100/8100 series), up to 205W, 1 or 2 2nd Generation Intel Xeon Scalable processors (3200/4200/5200/6200/8200 series), up to 205W |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Internal Storage | Supports hot-pluggable drives with the following configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs, 12/16/20 x 3.5-inch SAS/SATA HDDs, 4, 8, 12, 24, or 28 NVMe SSDs, 31 x 2.5-inch SAS/SATA HDDs or SSDs. Flash storage: 2 M.2 SSDs |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60, Configured with a supercapacitor for cache power-off protection (optional), RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Certification | CE, UL, FCC, CCC, and RoHS |
| Network Ports | LOM: 2 x 10 GE + 2 x GE ports, Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports |
* NOTE: Image may not exactly match the product

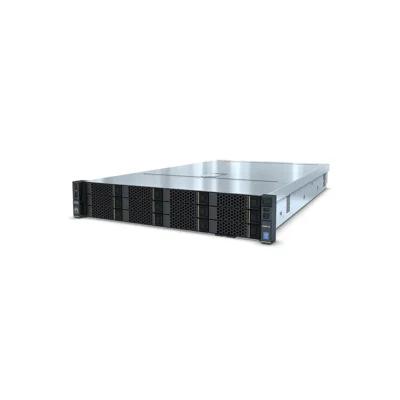

FusionServer 2288H V5 Rack Server
The FusionServer 2288H V5 is a high-performance 2U rack server engineered for enterprise workloads and data center efficiency. Powered by dual Intel Xeon Scalable processors with up to 40 cores each, it delivers exceptional computing power for virtualization, databases, and cloud applications. The server supports up to 3TB of DDR4 memory across 24 DIMM slots, ensuring superior multitasking capabilities.
Key features include 25 hot-swappable drive bays supporting SAS/SATA/NVMe storage configurations, enabling flexible capacity and performance optimization. Advanced thermal management with intelligent fan control reduces energy consumption by up to 15% while maintaining optimal operating temperatures. The server offers comprehensive I/O expansion with multiple PCIe slots and integrated network controllers supporting 10GE connectivity.
Built-in intelligent management through Huawei’s iBMC provides remote monitoring, automated fault detection, and predictive maintenance capabilities, reducing operational overhead by 30%. The modular design ensures 99.99% availability with redundant power supplies and tool-free component access for rapid maintenance.
Unique advantages include AI-assisted workload optimization, industry-leading performance-per-watt ratios, and seamless integration with hybrid cloud environments. The 2288H V5 combines enterprise-grade reliability with cost-effective scalability, making it ideal for organizations seeking powerful, efficient infrastructure solutions.
