| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon E |
| Part Number | E-2286G |
| Model | CM8068404173706 |
| Shipping Media | TRAY |
| Application | Server |
| CPU Socket Type | FCLGA1151 |
| Code Name | Coffee Lake |
| Total Cores | 6 |
| Total Threads | 12 |
| Max Turbo Frequency | 4.90 GHz |
| Processor Base Frequency | 4.00 GHz |
| Cache | 12 MB Intel Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 95 W |
| Manufacturing Tech | 14 nm |
| 64-Bit Support | Yes |
| Hyper-Threading Support | Yes |
| Embedded Options Available | No |
| Max Memory Size | 128 GB |
| Memory Types | DDR4-2666 |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations | 1×16, 1×8+2×4, 2×8 |
| Max # of PCI Express Lanes | 16 |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| Graphics Max Dynamic Frequency | 1.20 GHz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| Intel Quick Sync Video | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x3E96 |
| T JUNCTION | 100 |
| Package Size | 37.5 mm x 37.5 mm |
| Graphics Base Frequency | 350 MHz |
| Clear Video HD Technology | Yes |
| 4K Support | at 60Hz, Yes |
* NOTE: Image may not exactly match the product

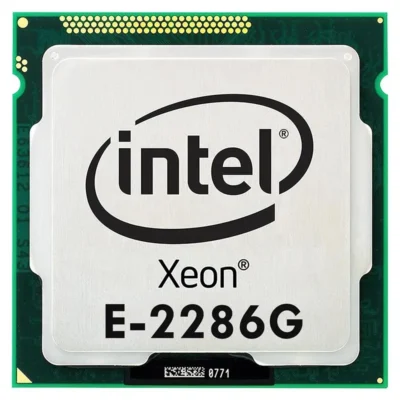

Intel Xeon E-2286G 6C 12T Socket FCLGA1151 95W
E 2286G Intel Xeon E
$536.701 Piece(MOQ)
| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon E |
| Part Number | E-2286G |
| Model | CM8068404173706 |
