| Brand | Intel |
|---|---|
| Products Status | New |
| Series | Intel Xeon E |
| Part Number | E-2236 |
| Model | CM8068404174603 |
| Shipping Media | TRAY |
| Application | Server |
| CPU Socket Type | FCLGA1151 |
| Code Name | Coffee Lake |
| Total Cores | 6 |
| Total Threads | 12 |
| Max Turbo Frequency | 4.80 GHz |
| Processor Base Frequency | 3.40 GHz |
| Cache | 12 MB Intel Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 80 W |
| Manufacturing Tech | 14 nm |
| 64-Bit Support | Yes |
| Hyper-Threading Support | Yes |
| Embedded Options Available | No |
| Max Memory Size | 128 GB |
| Memory Types | DDR4-2666 |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations | 1×16, 1×8+2×4, 2×8 |
| Max # of PCI Express Lanes | 16 |
| Max CPU Configuration | 1 |
| Instruction Set | 64-bit |
| Graphics Output | N/A |
| DirectX* Support | N/A |
| OpenGL* Support | N/A |
| Intel Quick Sync Video | No |
| Device ID | N/A |
| T JUNCTION | 100 |
| Package Size | 37.5 mm x 37.5 mm |
| Clear Video HD Technology | No |
| 4K Support | No |
* NOTE: Image may not exactly match the product

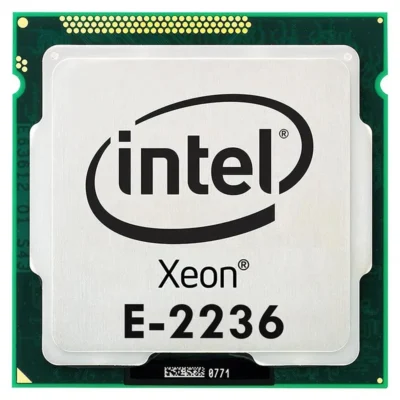

Intel Xeon E-2236 6C 12T Socket FCLGA1151 80W
The Intel Xeon E-2236 is a powerful 6-core, 12-thread processor designed for entry-level workstations and small business servers. Built on the FCLGA1151 socket with an 80W TDP, this CPU delivers professional-grade performance with Intel’s advanced security features, ECC memory support for enhanced data integrity, and Intel vPro technology for remote management capabilities. Its balanced core count and efficient power consumption make it ideal for CAD workstations, small database servers, and virtualization environments where reliability and performance are essential without the premium cost of higher-end Xeon processors.
