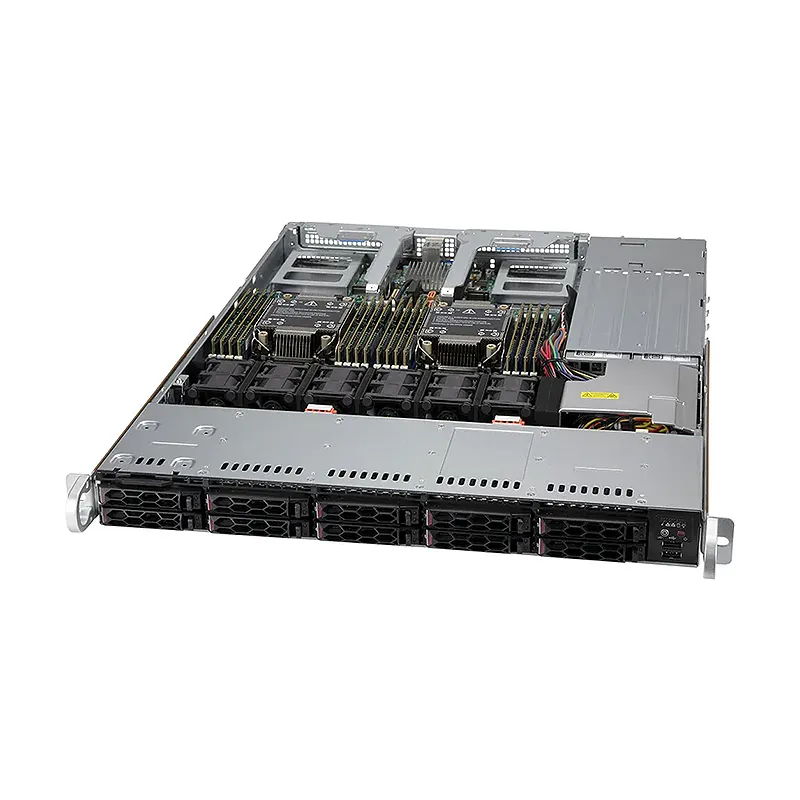

CloudDC SuperServer SYS-120C-TN10R (Complete System Only

* NOTE: Image may not exactly match the product

CloudDC SuperServer SYS-120C-TN10R (Complete System Only

**CloudDC SuperServer SYS-120C-TN10R: Ultra-Compact Powerhouse**

This 1U rackmount server delivers enterprise-grade performance in an exceptionally space-efficient design. Built for high-density computing environments, it features dual Intel processor support, extensive memory capacity up to 512GB DDR4, and flexible storage options including NVMe SSD compatibility. The system excels in virtualization, cloud computing, and edge deployment scenarios with its optimized thermal management and redundant power supplies ensuring 99.9% uptime. Key advantages include tool-less maintenance, hot-swappable components, and comprehensive remote management capabilities. The SYS-120C-TN10R offers superior price-performance ratio while maintaining enterprise reliability, making it ideal for data centers requiring maximum compute density without compromising on performance or serviceability.

Quote1 Piece(MOQ) Minimum Order Quantity

Bulk Order Discounts Available

BrandSupermicro
Form Factor1U
Products StatusNew
MemorySlot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors2.5"

Product SKUs

  • SuperServerSYS-120C-TN10RStandard version with PWS-860P-1R2 (Platinum Level)
  • SuperServerSYS-120C-TN10R-EUEuropean version with PWS-861A-1R (Titanium Level)

Motherboard

  • Super X12DDW-A6

Processor

  • CPU
    Dual Socket P4 (LGA-4189)
    3rd Gen Intel Xeon Scalable processors
  • Core Count
    Up to 40C/80T; Up to 60MB Cache per CPU

GPU

  • Max GPU Count
    Up to 2 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: L4, A2
    Intel PCIe: Intel Data Center GPU Flex 140

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel Optane persistent memory 200 series
  • Memory Voltage
    1.2V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • NVMe
    NVMe; RAID 0/1/5/10 support(VROC HW key required)
  • Chipset
    Intel C621A
  • Network Connectivity
    Via AIOM

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.2 Gen1 Type-A ports(rear)
    2 USB 2.0 Type-A ports(front)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)
  • DOM
    1 Super DOM (Disk on Module) port
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 32MB SPI FLASH ROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    1U Rackmount
  • Model
    CSE-LB16TS-R860AWP

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    23.5″ (597 mm)
  • Package
    7.7″ (H) x 23.7″ (W) x 31.8″ (D)
  • Weight
    Gross Weight: 40 lbs (18.14 kg)
    Net Weight: 25 lbs (11.34 kg)
  • Available Color
    Black

Front Panel

  • LED
    Device Activity
    LAN 1 Activity
    LAN 2 Activity
    Power status
    System information
  • Buttons
    Power On/Off
    UID button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 4.0 x16 FHHL slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 10 bays 10 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays
    (*NVMe/SAS support may require additional storage controller and/or cables)
  • M.2
    2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)

System Cooling

  • Fans
    6x 4cm heavy duty fans with optimal fan speed control
  • Air Shroud
    2 Air Shrouds

Power Supply

  • 2x 860W
    2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies
    Dimension (WxHxL)
    54.5 x 40.25 x 322 mm
    Input
    800W: 100-127Vac
    800W: 100-127Vac / 50-60Hz
    860W: 200-240Vac
    860W: 200-240Vdc / 50-60Hz
    860W: 200-240Vac / 50-60Hz
    +12V
    Max: 66.6A / Min: 0A (100Vac-127Vac)
    Max: 71.6A / Min: 0A (200Vdc-240Vdc)
    Max: 71.6A / Min: 0A (200Vac-240Vac)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Form Factor

1U
Products Status

New
Memory

Slot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Drive Form Factors

2.5"
Chipset

Intel C621A
CPU

Dual Socket P4 (LGA-4189)3rd Gen Intel Xeon Scalable processors
CPU Type

3rd Gen Intel Xeon Scalable processors
Generation

X12
Total PCI-E Slots

2
Drives

10
Max GPU

2
Fans

6x 4cm heavy duty fans with optimal fan speed control
Depth

23.5" (597 mm)
Height

1.7" (43 mm)
Width

17.2" (437 mm)
Package

7.7" (H) x 23.7" (W) x 31.8" (D)
PCI-Express (PCIe) Configuration

Default
Weight

Gross Weight: 40 lbs (18.14 kg)Net Weight: 25 lbs (11.34 kg)
Drive Bays Configuration

Default: Total 10 bays(*NVMe/SAS support may require additional storage controller and/or cables)
Video

1 VGA port
Network Connectivity

Via AIOMView AIOM OptionsView AOC Options
BIOS Type

AMI 32MB SPI FLASH ROM
Note

Supports up to 270W TDP CPUs (Air Cooled)**Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
Available Color

Black
Interface

NVMe (Optional), SAS (Optional), SATA (Native)
Buttons

Power On/OffUID button
M.2

2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
USB

2 USB 3.0 ports(rear)2 USB 2.0 ports(front)
LED

Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information
Application

CDN, Cloud Computing, Compact Server, Data Center Optimized, DNS & Gateway Servers, Edge Nodes, Firewall Application, Value IaaS, Web Server
Max GPU Count

Up to 2 single-width GPUs
Core Count

Up to 40C/80T; Up to 60MB Cache per CPU
Memory Voltage

1.2V
SATA

SATA (6Gbps) ; RAID 0/1/5/10 support
TPM

1 TPM Header
Serial

1 COM port(Rear)
Supported GPU

A2Intel PCIe: Intel Data Center GPU Flex 140View GPU Options, NVIDIA PCIe: L4
NVMe

NVMe; RAID 0/1/5/10 support(VROC HW key required)View NVMe Options
DOM

DOM
Air Shroud

2 Air Shrouds
ROHS

RoHS Compliant
